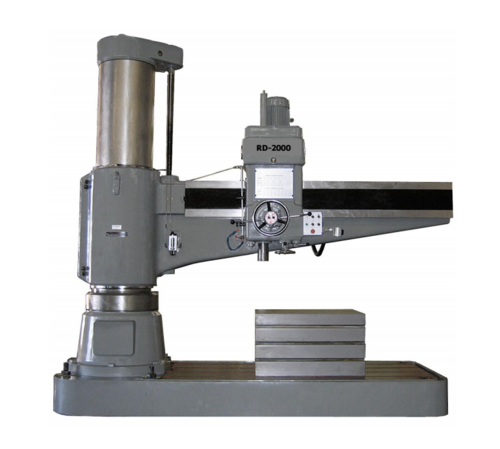

6' -17" Sharp #RD-2000, radial arm drill, #5MT, 1920 RPM, 7.5 HP, coolant system

78.74” X 72.83” Capacity Radial Drill Press with #5MT, 1920 RPM, 7.5 HP Spindle Drive, Hardened & Ground Arm Slideways, Electric Elevation Drive, T-Slots and Drain Channel in Base Casting, Box Table, Integrated Coolant System and Worklight

GENERAL SPECIFICATIONS:

• Diameter of column: 17"
• Distance from column surface to spindle center, max: 78.74"
• Distance from column surface to spindle center, min.: 16.93"
• Travel of spindle head: 61.81"
• Distance from base surface to spindle end, max.: 72.83"
• Distance from base surface to spindle end, min.: 15.34"
• Elevating height of arm: 43.31"
• Effective area of table: 40” x 32” x20"
• Dimensions of base: 115” x 45” x 10"
• Taper hole in spindle: #5 MT
• Stroke of spindle: 14.57"
• R.P.M. of spindle (rpm range x steps): 40-1920 x 12 Speeds
• Feed of spindle: 0.007"-0.096" x 6 Speeds
• Main motor (HP): 7.5 HP
• Elevating motor (HP): 3 HP
• Clamping Motor for Column and GearBox: 1 HP
• Clamping Motor for Arm: ½ HP
• Coolant pump (HP): 1/8 HP
• Machine height from floor, max.: 136.61”
• Approximate Dimension (LxWxH): 130" x 59" x 123.6"
• Approximate Shipping Weight: 15,650 Lbs.
• Voltage: 220 or 440V (Must Specify)
• Amps Required @ 220V: 18KVA/40 Amps
• Amps Required @ 440V: 18KVA/20 Amps

FEATURES:

• Hardened and Ground Arm Slideways
• Arm Elevation is controlled by Electric Motor
• Safety Device prevents arm from dropping
• T-Slots and Drain Channels on casting
• Hardened and Ground Gears
• Box Table
• Coolant System
• Worklight
• Toolbox
• Wired 220V or 440V. Please Specify.
