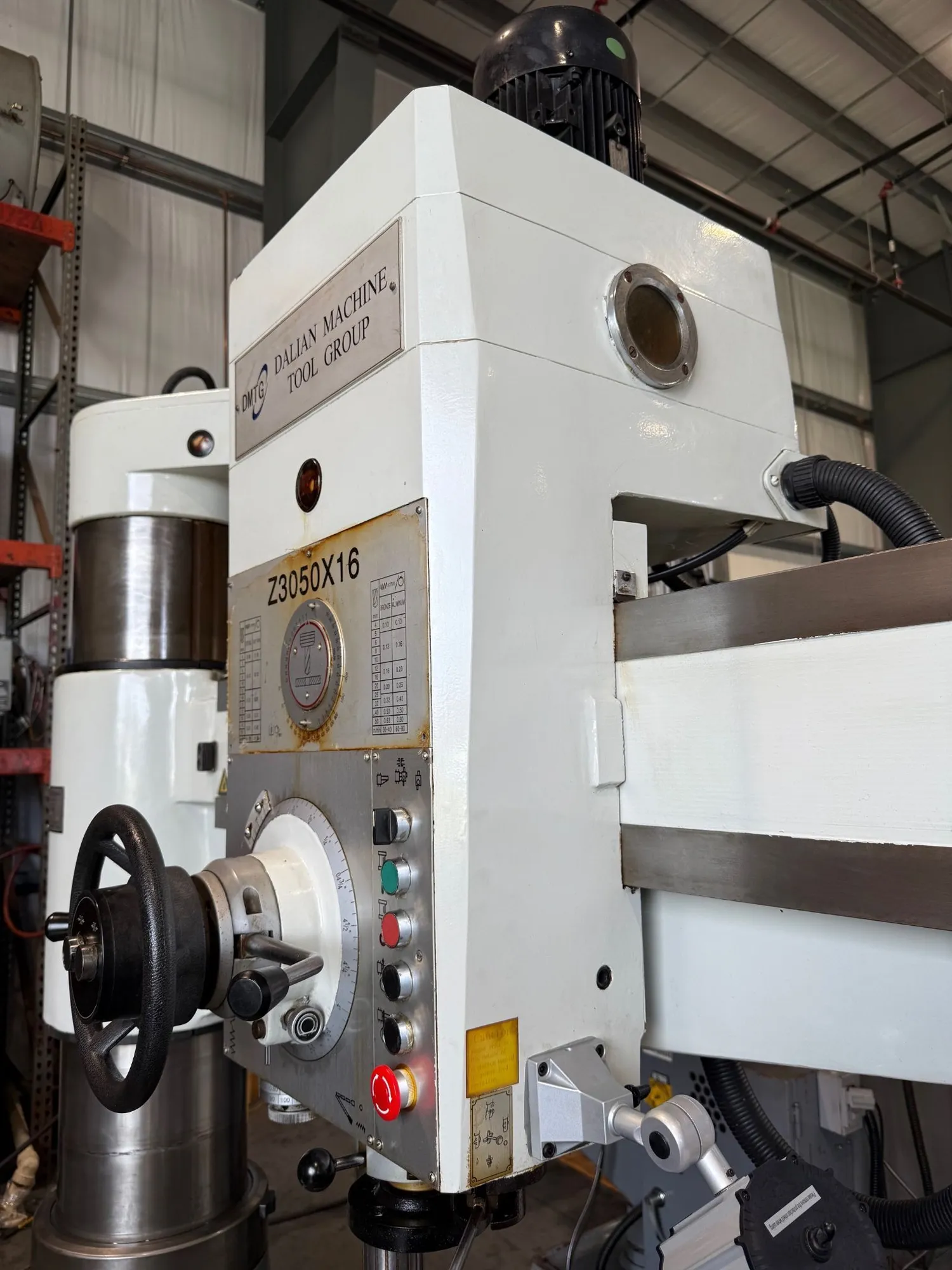

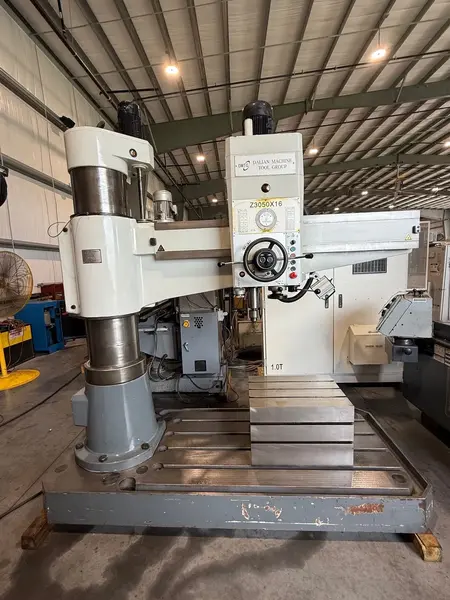

Description DMTG Z3050X16 6’ X 14” Radial Arm Drill 2010’ #7695 Specifications

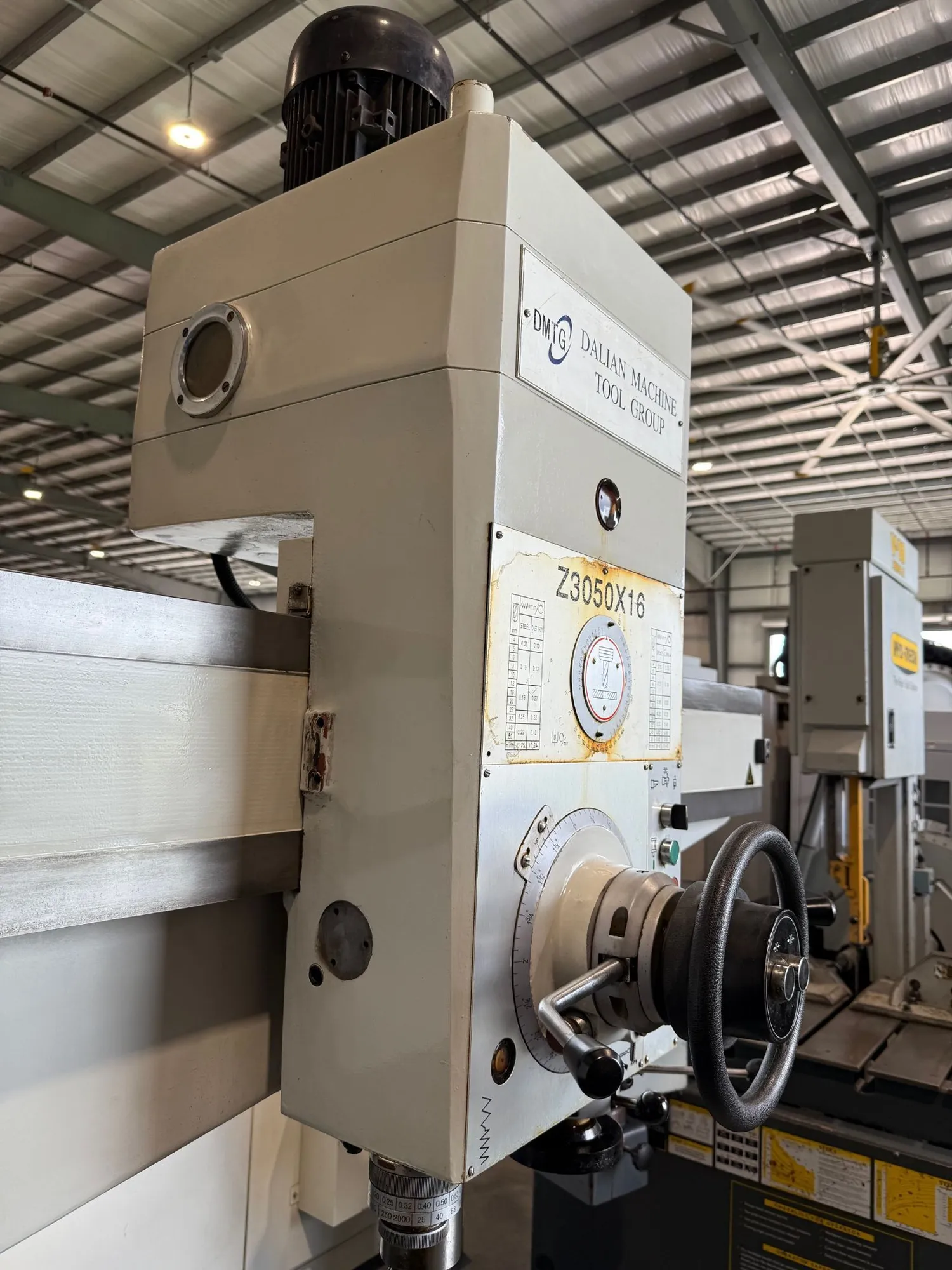

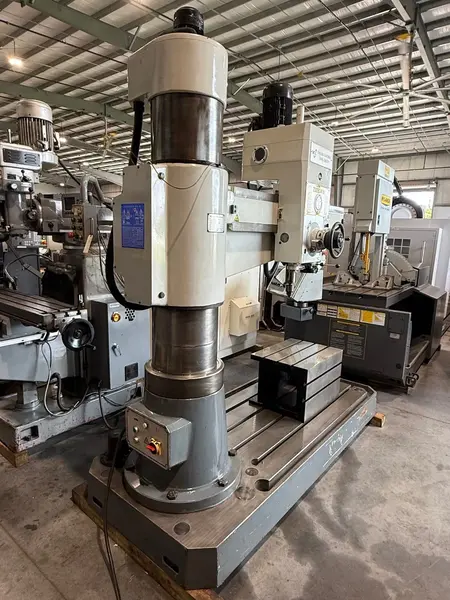

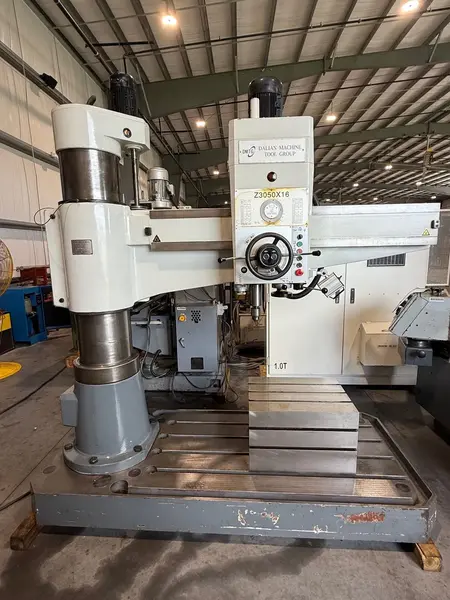

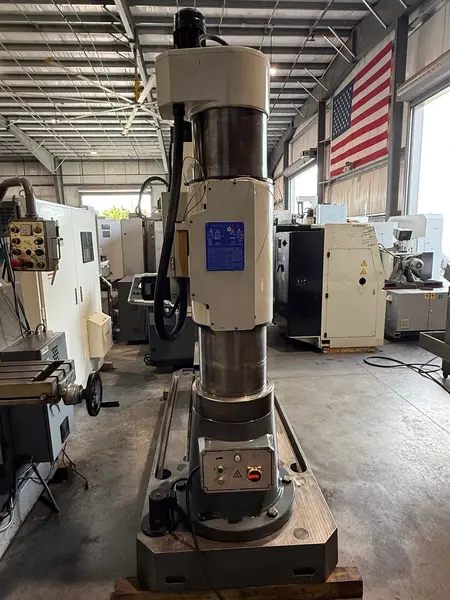

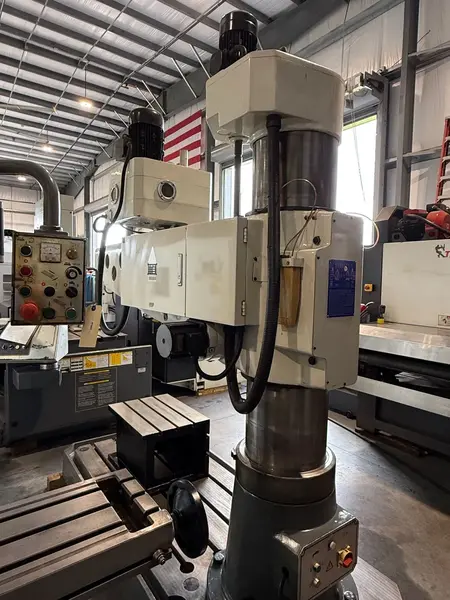

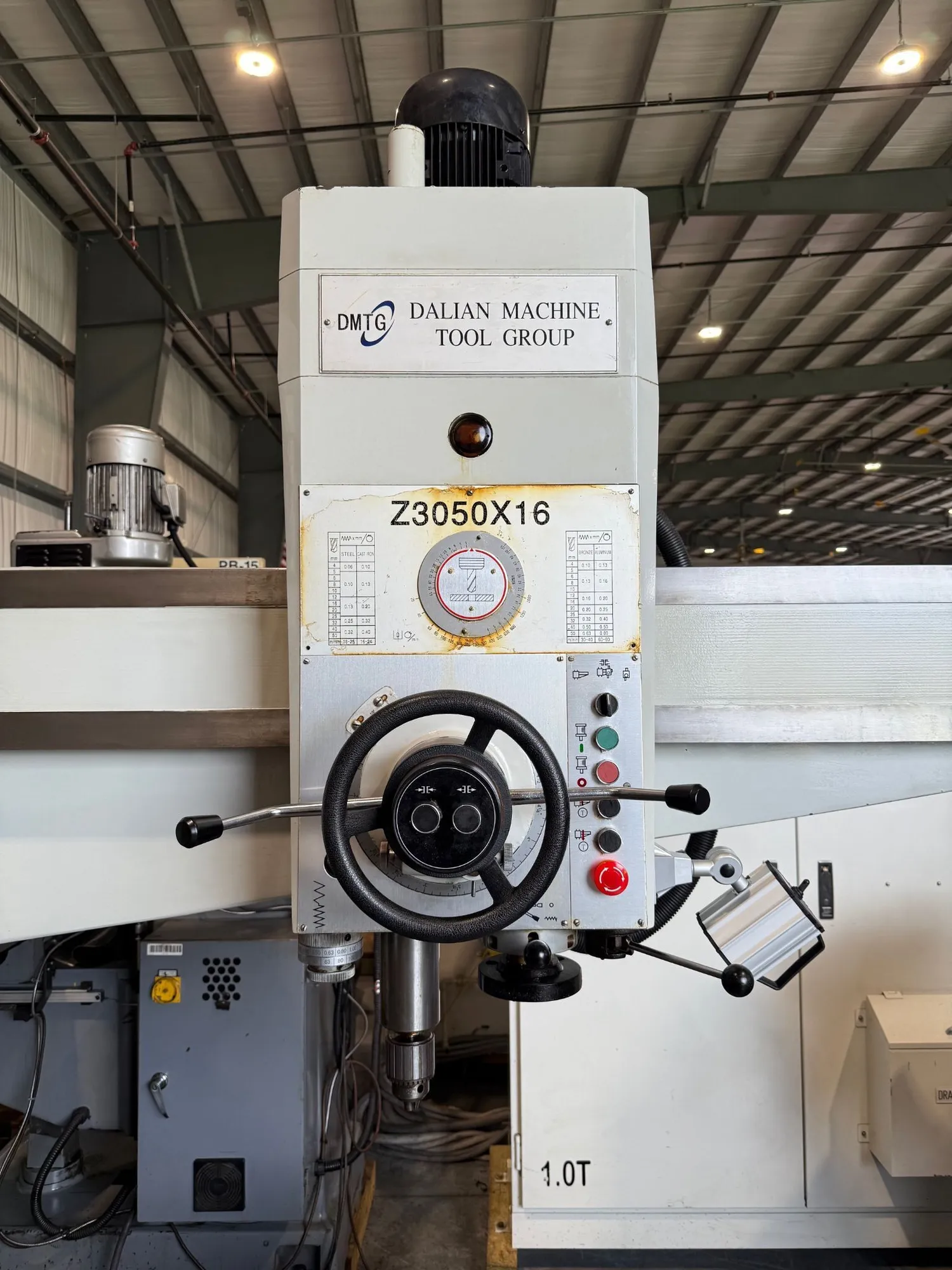

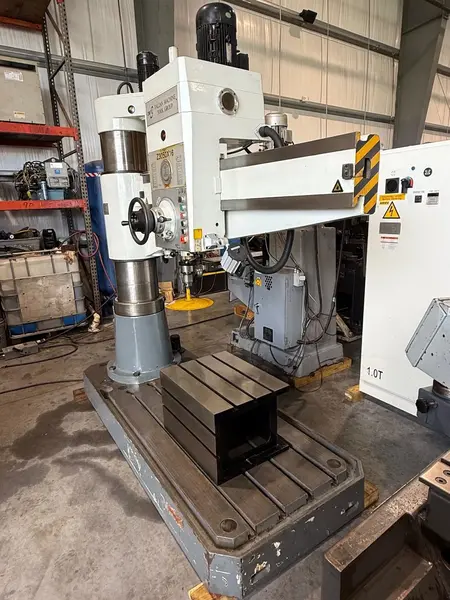

DMTG Z3050X16 6’ X 14” Radial Arm Drill 2010’ #7695 Reference #7695 Model # Z3050X16 Serial # 450836 Year of Manufacture- 10/2010’ Drill capacity- 2” Mild steel Spindle distance from column- 13.77” – 63” Spindle nose to base- 13” – 48” Spindle travel- 12.4” Spindle taper- # 5 Morse Spindle speeds- 25 – 2,000 R.P.M. Spindle speeds- 16 Base size- 94” x 39” Base working surface- 33” x 64-1/2” Box table size- 25-1/2” x 19-3/4” x 16” H Column diameter- 13.84”

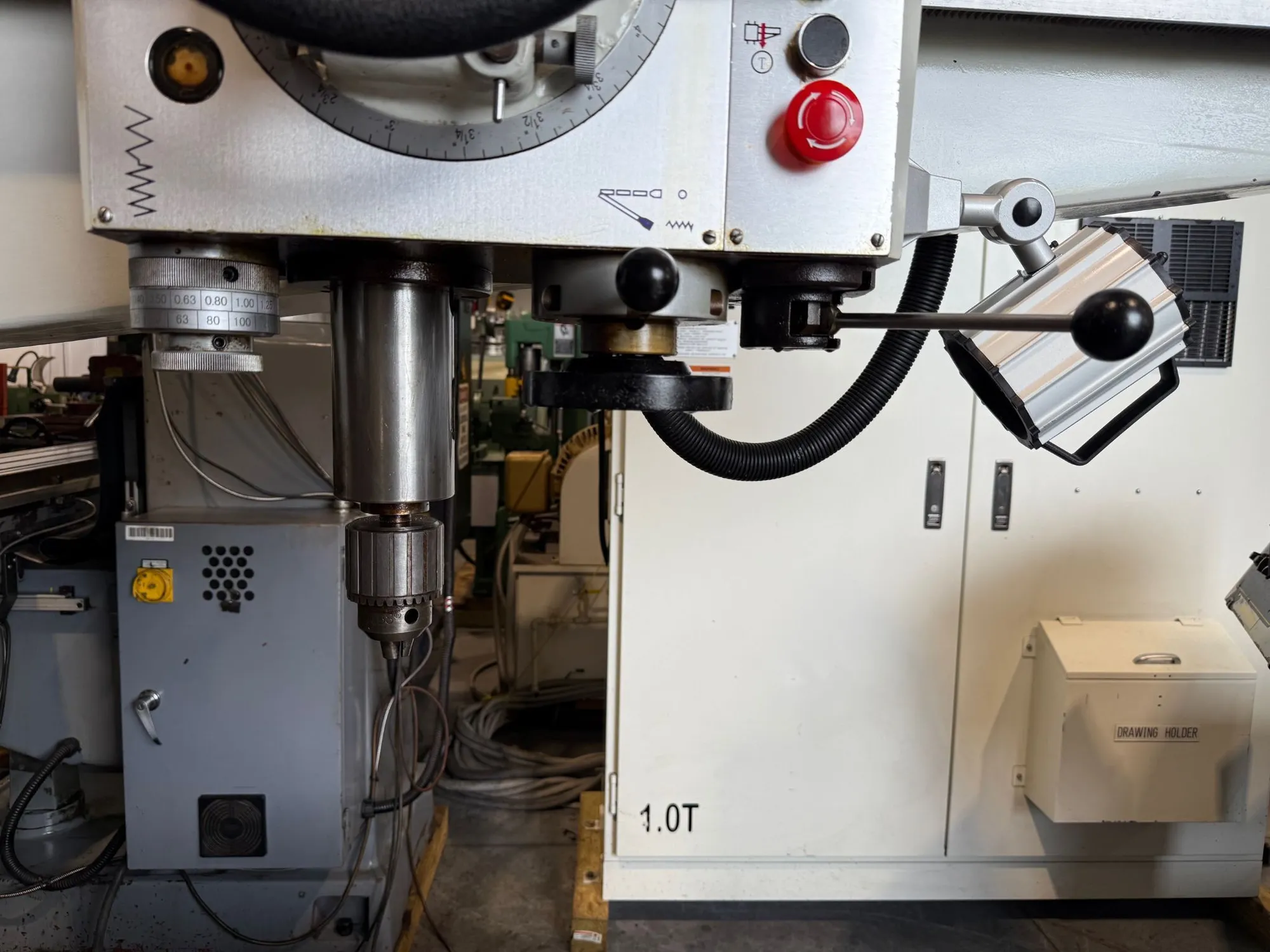

Equipped With Jacobs drill chuck Box table LED work light 1/8 H.P. Coolant pump with built in base reservoir 1 H.P. Hydraulic clamp 2 H.P. 5-1/2 H.P Spindle motor Machine is wired for 220 volt / 3 phase / 60 H.Z. Machine weight-7500 Lbs. Machine dimensions- 99” x 43” x 112” Machine location- F.O.B. Sarasota, Florida
