6-1/2" x 6-1/2" x 1/2" Geka #Hydracrop-110PD, CNC Deep Throat Dual Cylinder Hydraulic Ironworker, w/ Semi-Paxy CNC Positioner, 120 Ton, 24" throat, 7.5 HP

Description

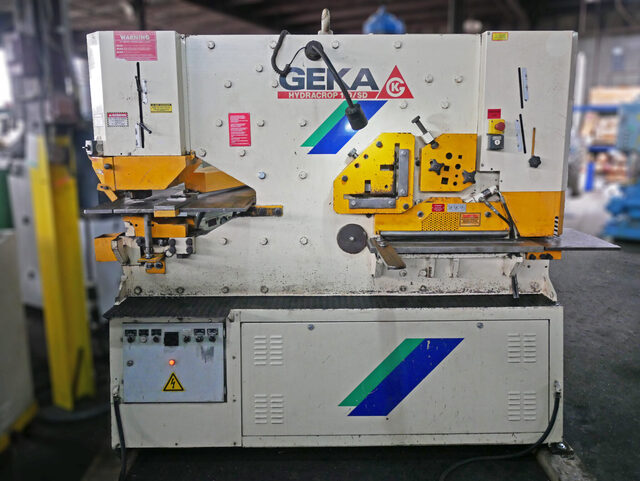

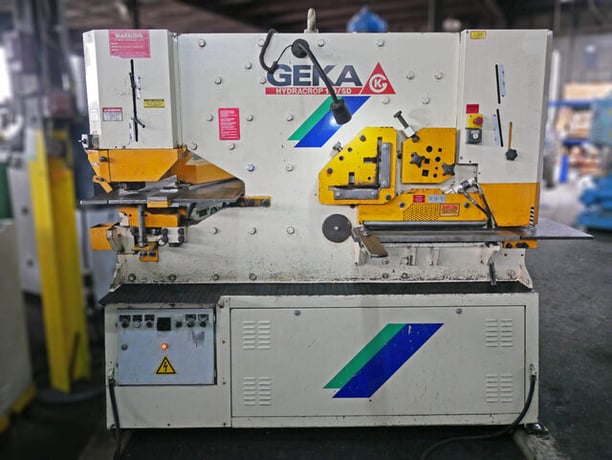

Geka 120 Ton CNC Deep Throat Dual Cylinder Hydraulic Ironworker with Semi-Paxy CNC Positioner, Hydracrop 110PD

Inventory # 9882

Model: Hydracrop 110PD

S/N: 21237

Please Note: Computer screen shows up poorly on video, however, it is brand new with a perfectly crisp and clear view

Specifications:

Punching Power: 120 US Tons

Throat: 24″

Max. Capacity: Ø 1 1/2″ x 3/4″

Shearing Power: 180 US Tons

Shearing Capacity:

Flat Bars and Plates: 24″ x 5/8″

Station for Shearing Angles at 90°: 6 1/2″ x 6 1/2″ x 1/2″

Solid Round and Square Bars (with Optional Blades): Ø 2″ Round, 2″ Square

Rectangular Notching: 3 1/2″ x 2″ x 1/2″

Motor: 7.5 HP / 220v, 440v / 3ph

Standard Features:

The Geka Hydracrop 110 ironworker is highly recommended for the manufacturing tasks of punching and cutting plates. Since it features two cylinders, the machine offers the capability of being worked by two operators at the same time, one at each hydraulic cylinder. Like the other machines in the Hydracrop Series, it includes five workstations on which different optional equipment and accessories from Geka may be mounted

The five workstations in the Geka Hydracrop 110 Universal Ironworker:

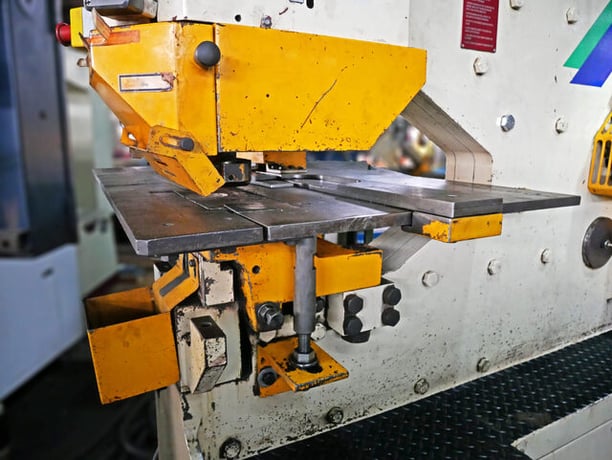

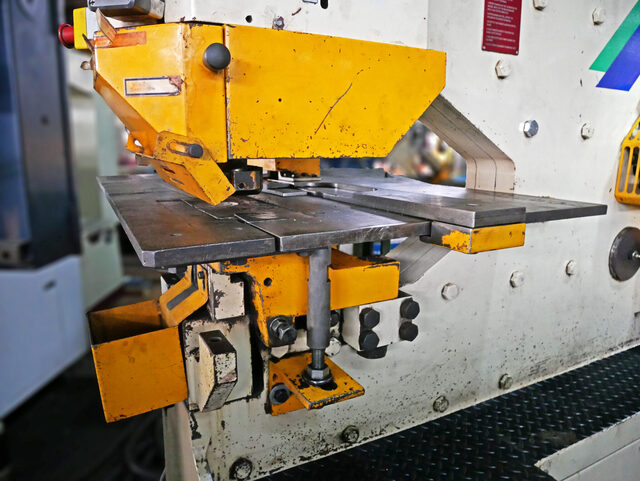

– Punching Station: The punching station is fitted with an independent cylinder, making it a flexible and adaptable workstation, on which special accessories and die sets may be easily adaptable

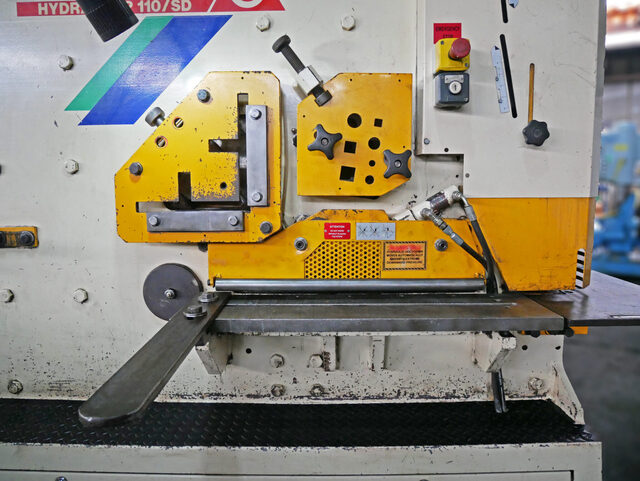

– Station for Shearing Angles at 90°: Thanks to a blade system designed by Geka, this station is capable of distortion-free shearing without any loss of material

– Notching Station: This station was designed to be equipped with many different Geka accessories or tools. These optional peripherals allow the machine to perform different jobs like triangular notching at 90°, pipe notching, and notching footings

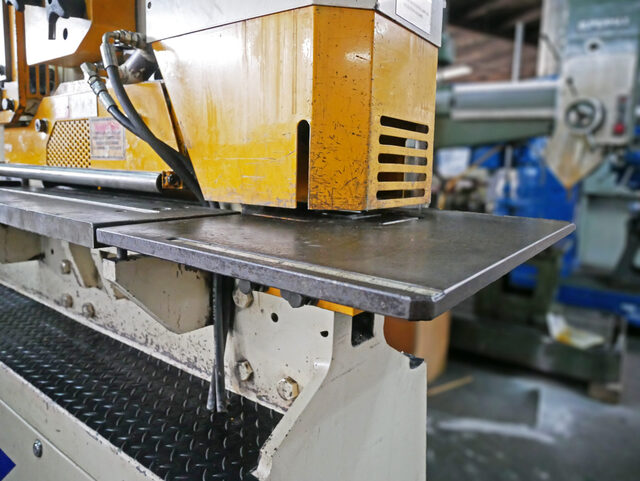

– Station for Shearing Flat Bars and Plates: Thanks to the stability provided by a monoblock blade-holder, a long upper blade may be mounted on the station to obtain optimum shearing results

– Cutting Station for Round and Square Bars: The station comes equipped with standard blades for cutting round and square bars. However, different blades may also be mounted in order to cut in different shapes

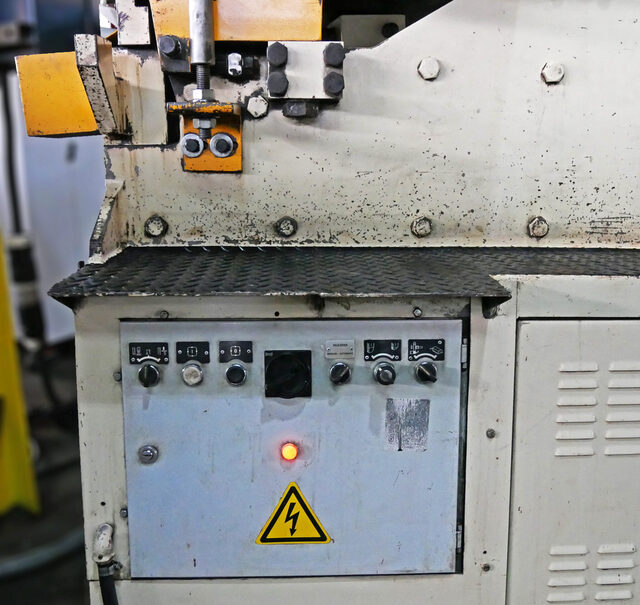

The machine also features an electric cabinet with an inching selector switch. The cabinet may be easily removed for access to the hydraulic unit

Equipment Included:

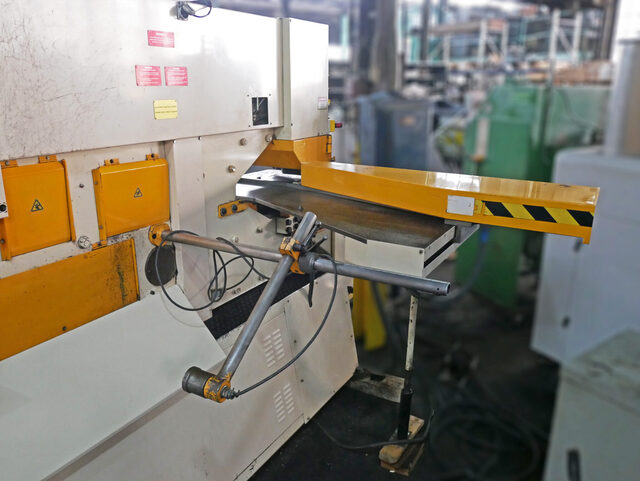

Semi-Paxy CNC Automatic Positioner:

– Programmable Stops Along X & Y Axis

– Two Servo Motor-Driven Positioning Carriages

– Touch Screen

– Conveyor Assembly Consisting of Independent Servo Drives Along Each Axis, Spindle, and Encoder Units

– 0 to 470 IPM Rate of Motion

– +/- .003″ Repeatability

Mechanical Specifications:

Shipping Dimensions: 120″ x 85″ x 85″ H

Shipping Weight: approx. 10,000 lbs.

FOB Our Baltimore, MD Warehouse
