Description

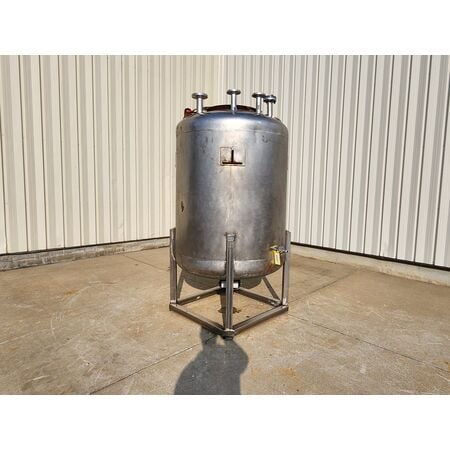

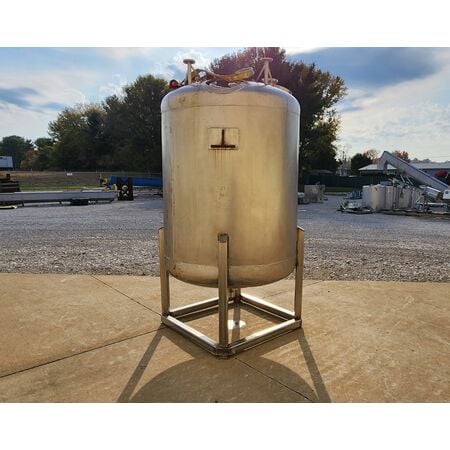

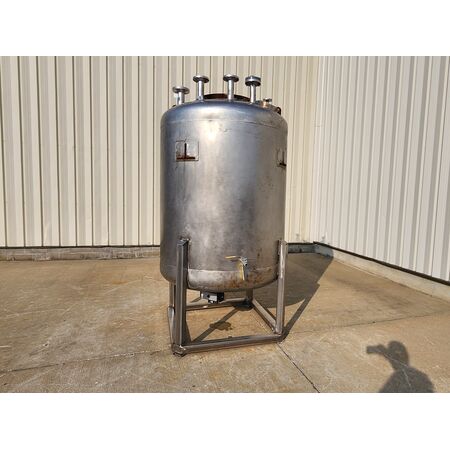

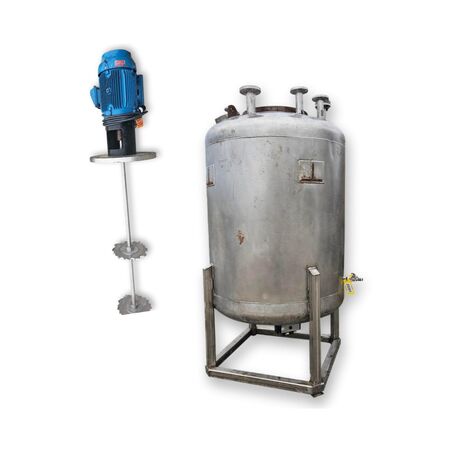

Used 316L Stainless Steel Reactor Pressure Rated Mix Tank - 590 Gal. Stainless steel single wall liquid mixing tank with 2:1 elliptical top and bottom heads. Tank Cylinder: 53" diameter with a 53" vertical length, four internal baffles at 90 Wall Thickness: 0.204" Bottom Drain: 3" sanitary ball valve, pneumatic actuated Multi-ported top head with 18" mixer flange, 12" opening and CIP spray ball. Mixer: 20HP direct-coupled severe duty motor (208-230/460V, 60Hz, 3ph, 1175RPM) Impellers (2): 14" dispersion blades (high shear for agglomerations and solids) 3" square tube base support frame measures 46" square. Base elevation to top mixer flange is 97".
Inventory No. 0526-101-0011 Manufacturer Wang Name S/s Tank Arrival Date 06-26-2026 Dimensions L x W x H (inches) 59 x 59 x 109 Capacity ~586 GALLONS Weight (lb.) 865 Category Chemical Processing Condition Used Available Quantity 1 Serial No. 10548-001 Make Year 2005 Item S/s,.7 Bar, 1500 L.
, 600 Gallon LEE Jacketd Mix Kettle with Sweep / Scrape Agitation Model 600D5S. Jacket rated 90 PSI @ 332 Deg.F. 7.5 HP 230/460 volt Single Motion Sweep agitation. Has provision for Scraper blades (not installed). Jacket tested good. Last used in sanitary food plant. Video of unit running available., 2018 LEE ...more
