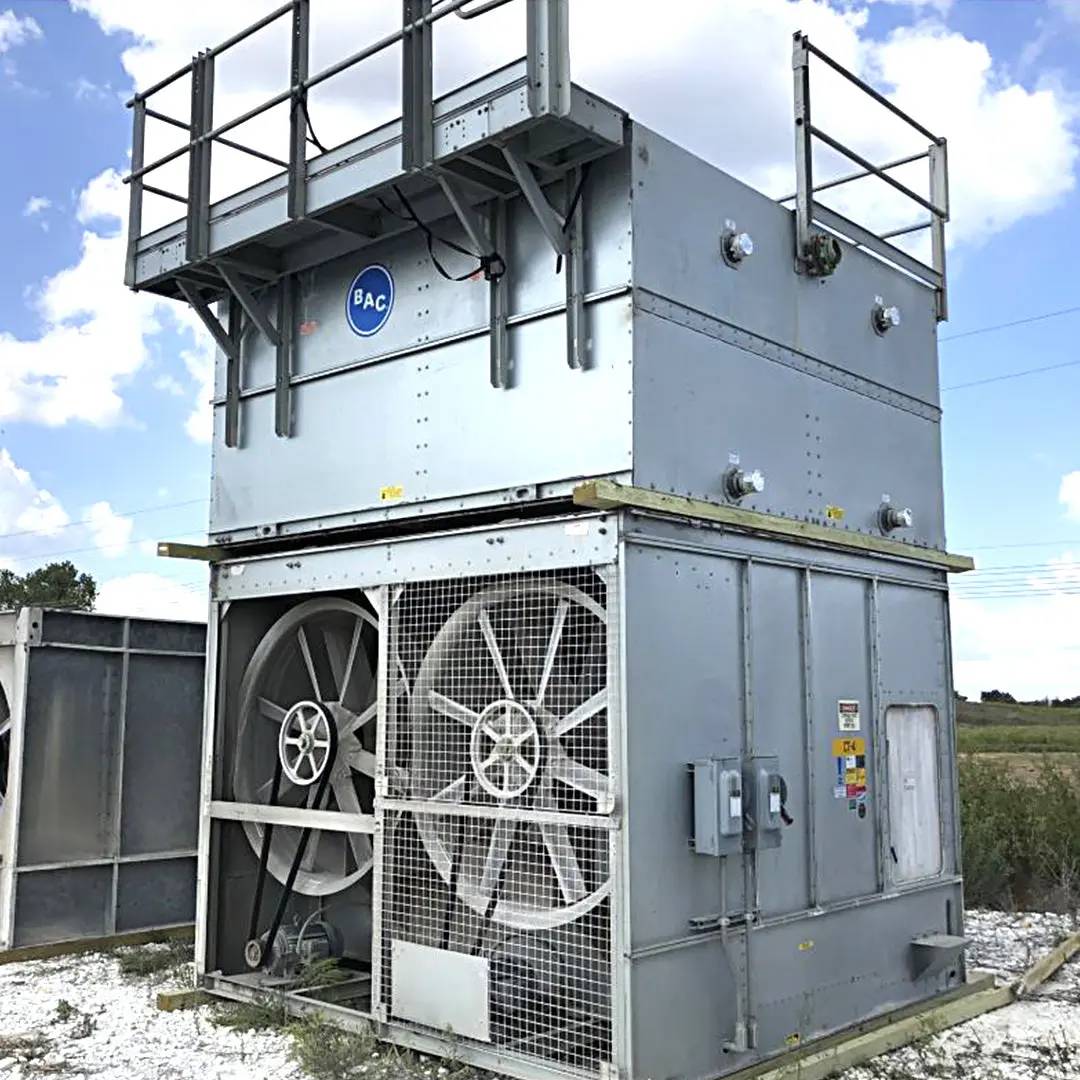

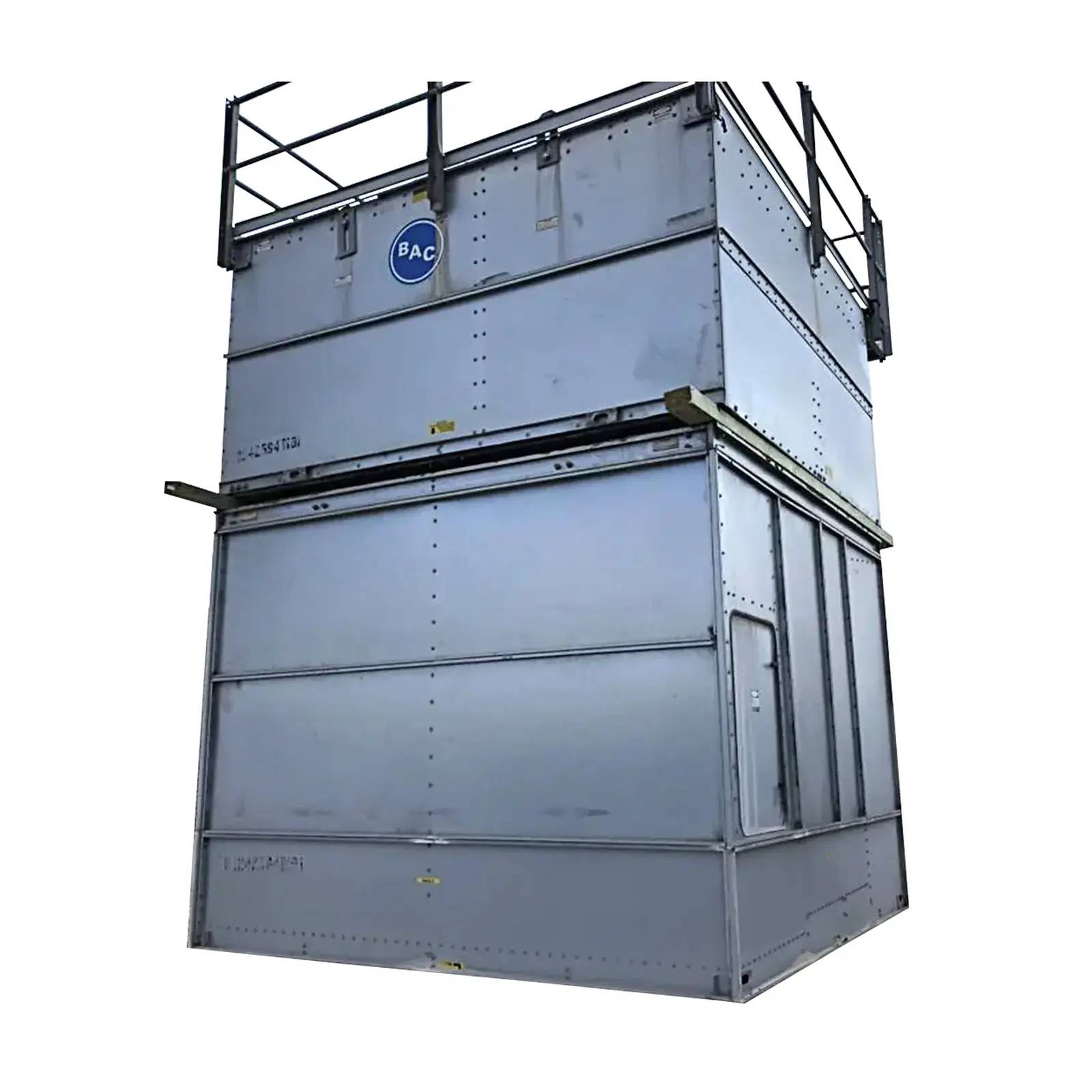

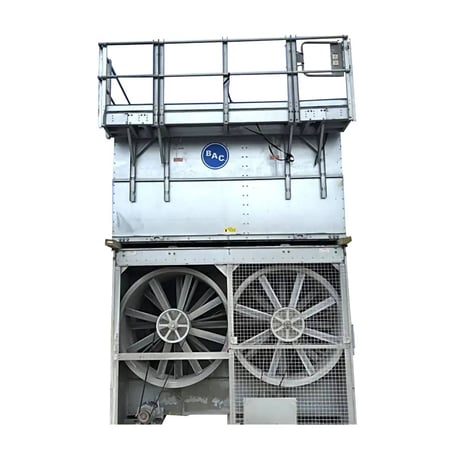

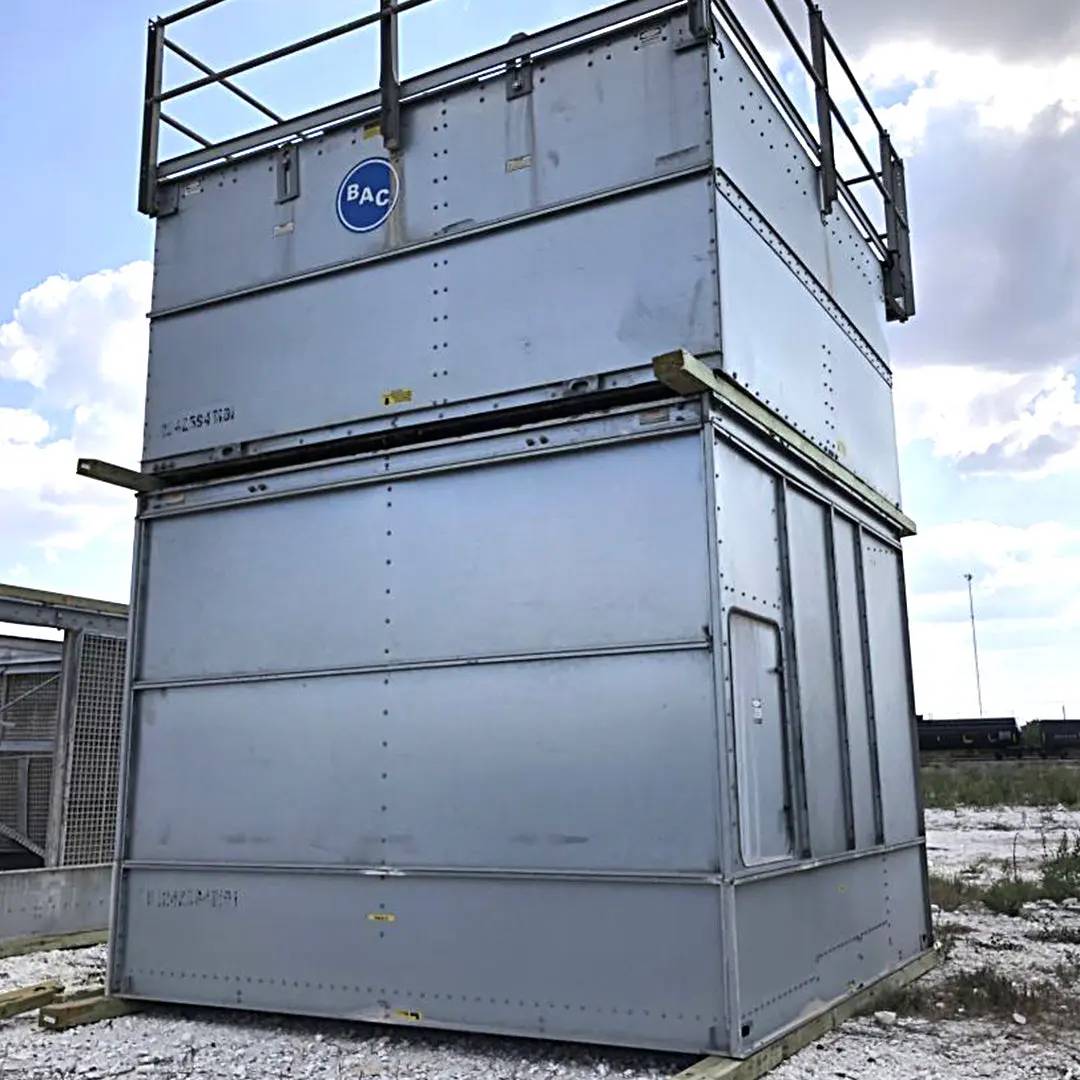

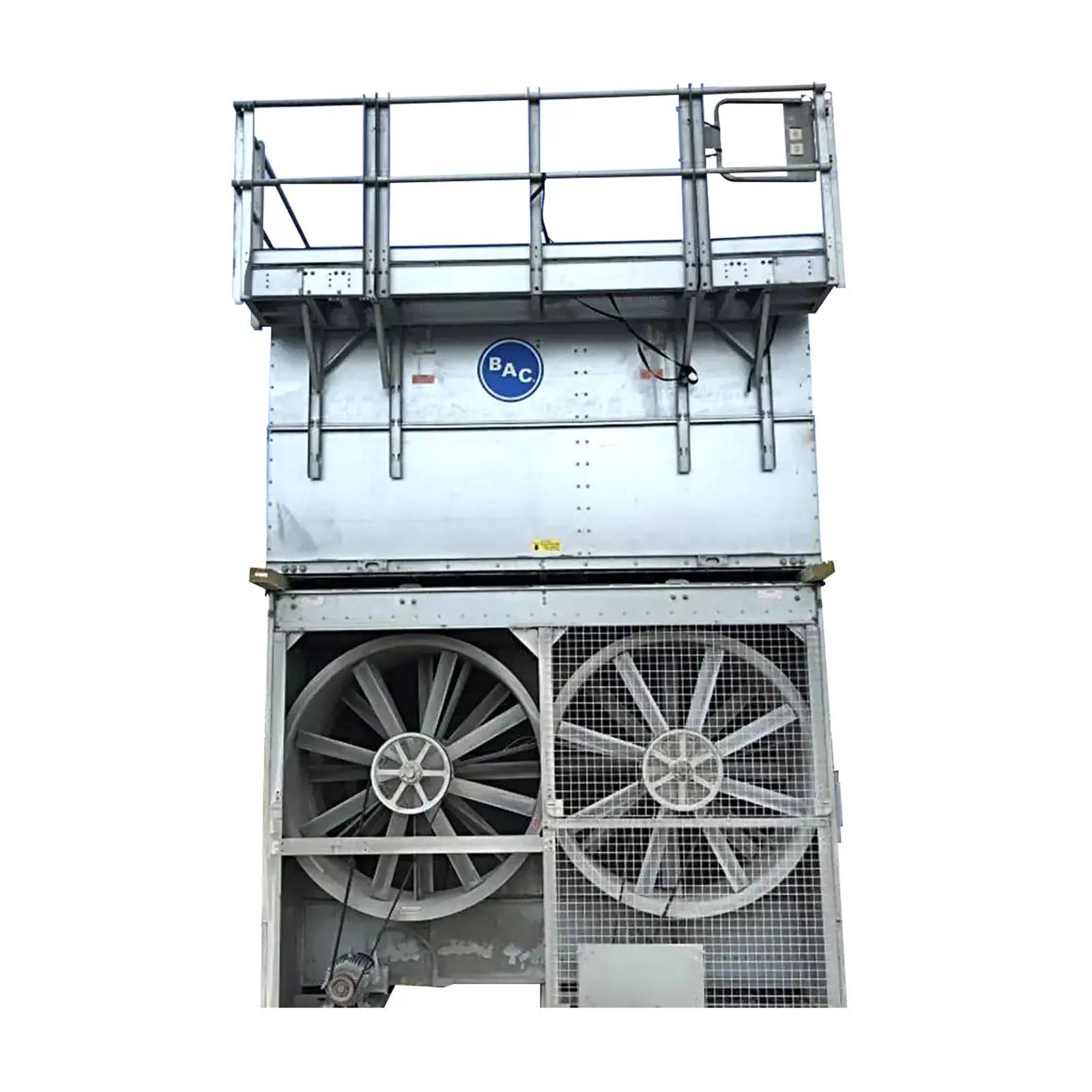

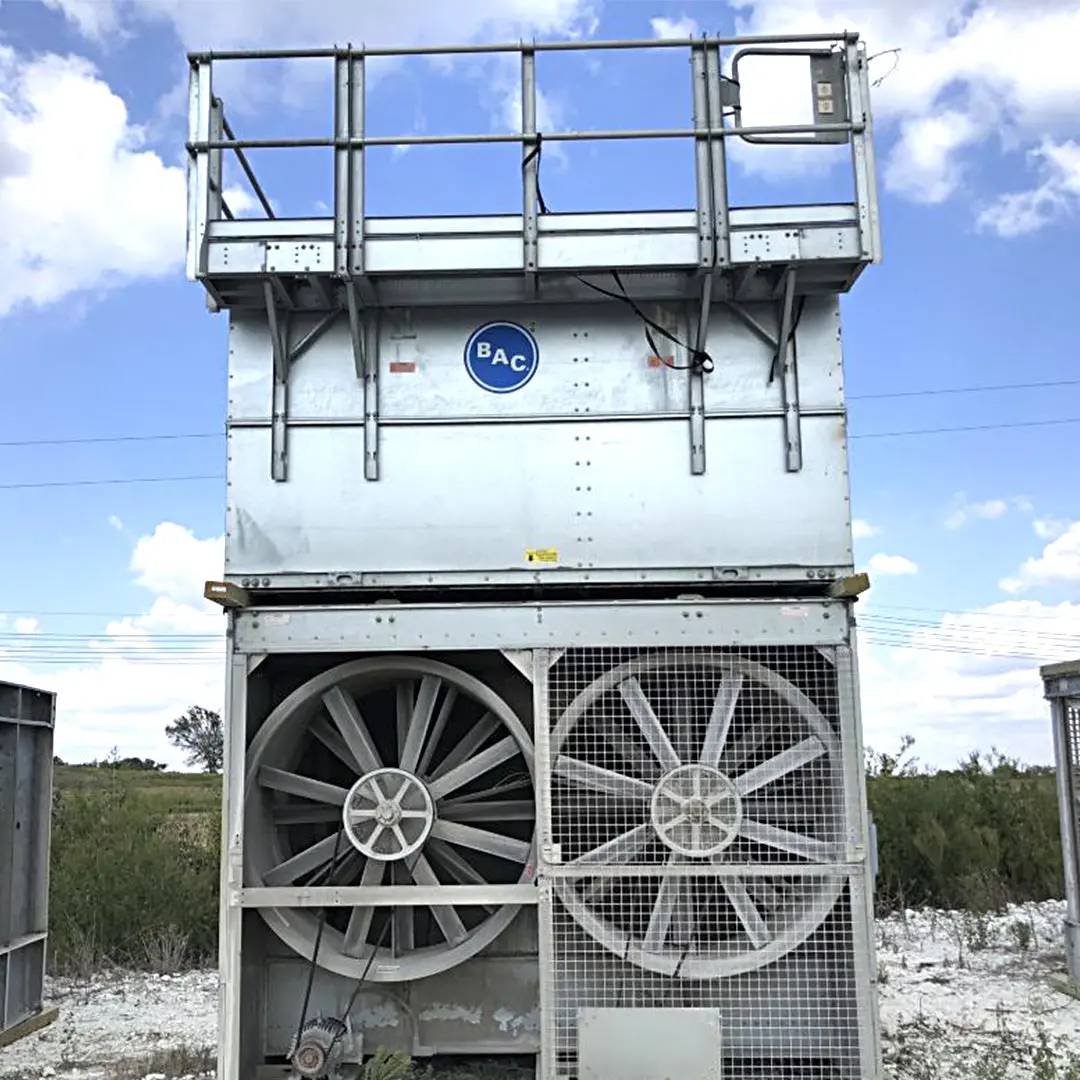

580 Ton, BAC VCA-580A, Evaporative Condenser, 1-20 HP Motor, 89700 CFM, 610 GPM, 2013

Year of Manufacture: 2013

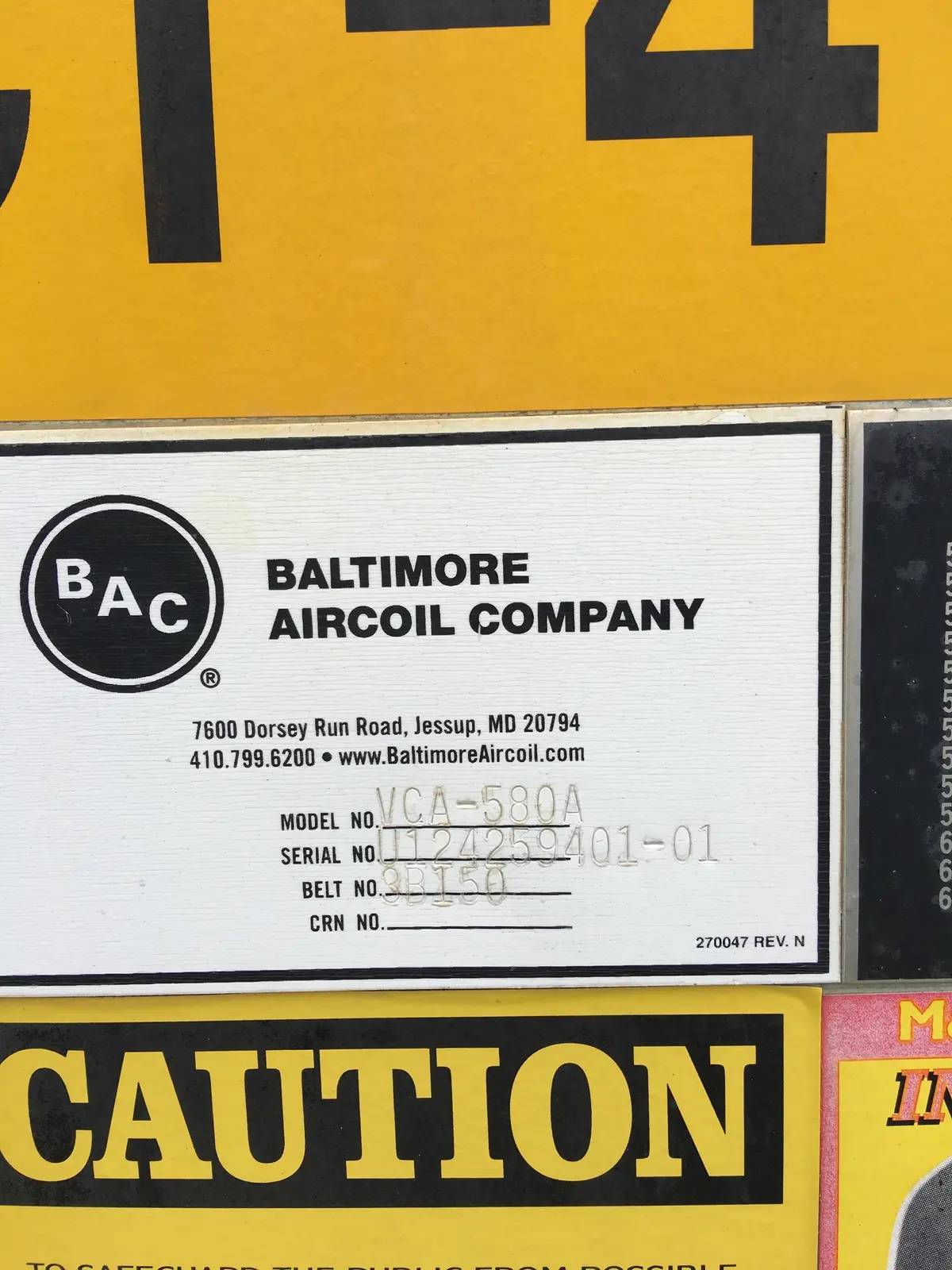

Serial # U124259401-01

Number Units in Package: 1

Nominal Tons (total): 580 TR*

Ammonia Tons (total): 412 TR*

Coil Volume (total): 79 ft3

CFM (total): 89700 CFM

R-717 (ammonia) or R22 (freon). Last run with Ammonia.

Design pressure: PSIG

Pump Requirements (per unit): 5HP 610 GPM

Pump Included? Water Pump: Bell & Gossett Size: 1531 4BC 7.5BF GPM: 610 FT: 40 HP: 10 RPM: 1750 Max, W.P. PSI: 75 Pump Motor: HP: 10 Volt: 460 RPM: 1770 Hz: 60 Frame: 215JM Ph: 3 Amps: 13.5

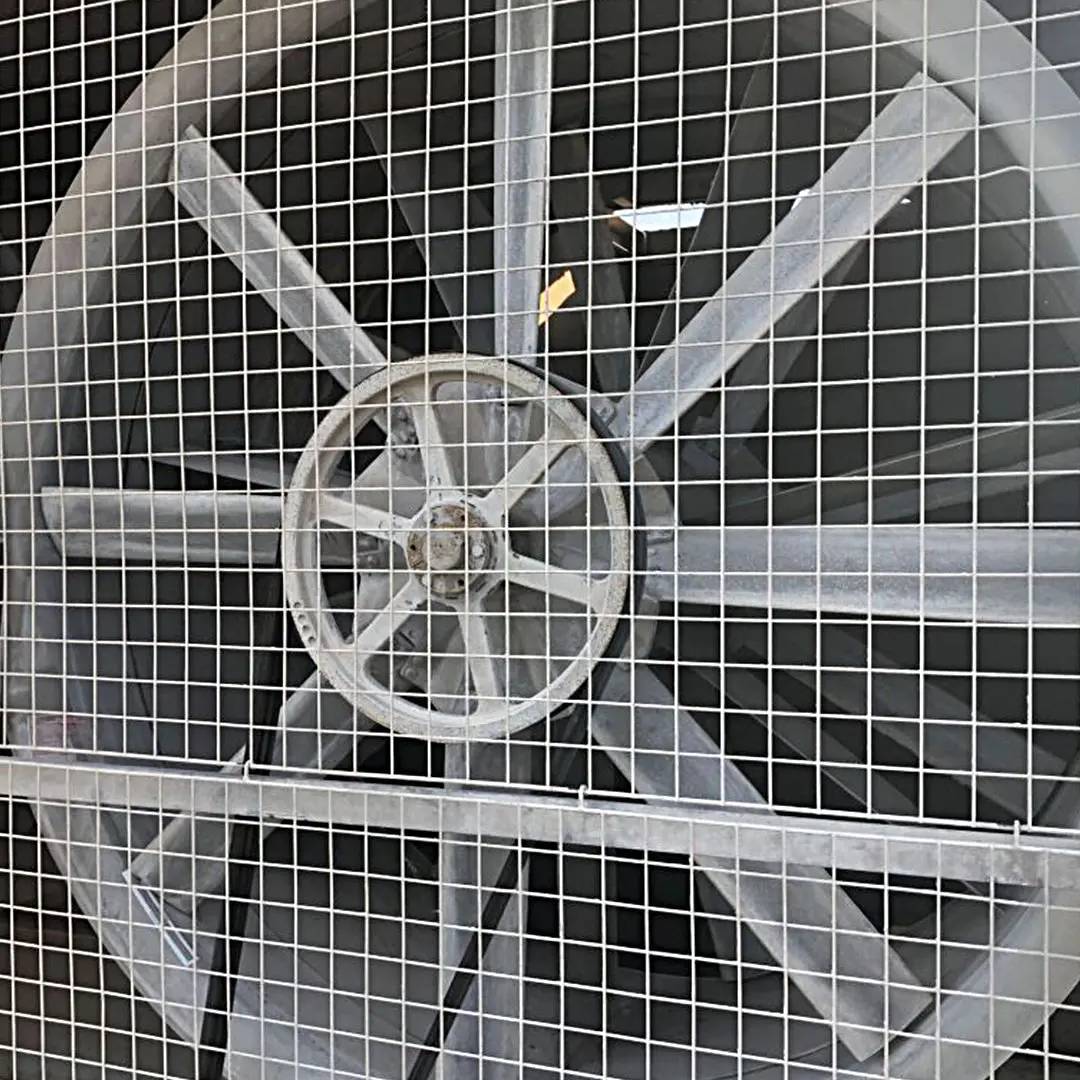

Fan Details (per unit): 2x Fan Motors: HP: 20 RPM: 1765 Hz: 60 Frame: 256T Ph: 3 Amps: 24.4 Volt: 460 Fan belts: 3B150

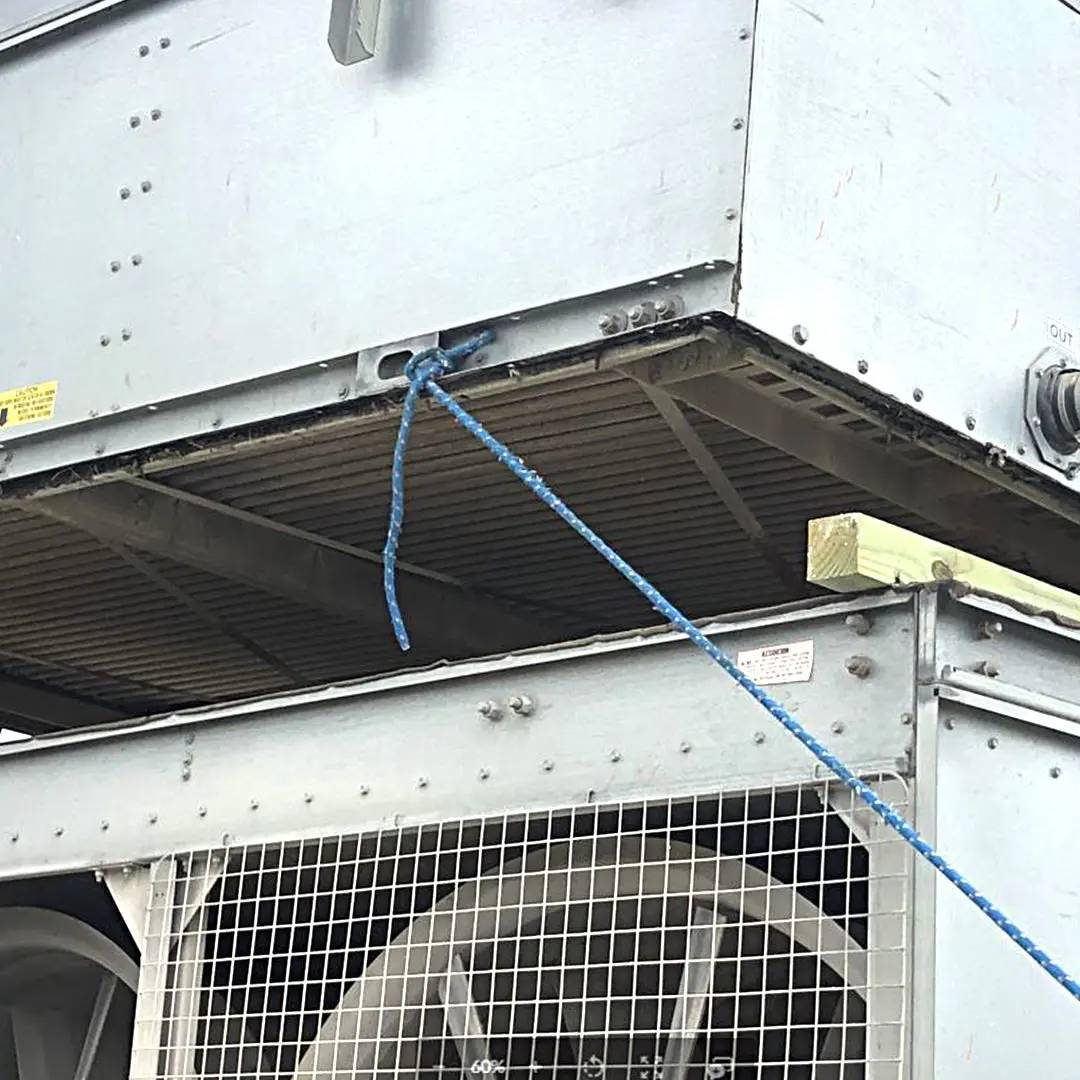

Top Dimensions (per unit): 12’ L x 12' W x 6'11" H

Top Weight (per unit): 15,150 LBS

Bottom Dimensions (per unit): 12’ L x 12' W x 8'5" H

Bottom Weight (per unit): 4,330 LBS

Other Notes about machine: After Seaboard Foods built their new engine room, we purchased their entire original engine room in Oklahoma, USA.

*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb

Can sell one tower unit from a group upon request for a fee. Please request as needed.
