Description
5,750 (25kN) MTS Sintech 2G Tensile & Compression Tester
MTS Sintech Model 2G
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 16"
Testing Stroke: 48"
Table Size (W x D): 4" x 16"
Testing Speed (IPM): .00002 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 28" x 35" x 98"
Approximate Weight (lbs): 950
Electrical Requirements (V,Hz,PH): 200-230, 60, 1
EQUIPPED WITH:
- Computer System with Keyboard & Mouse.
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 25kN Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

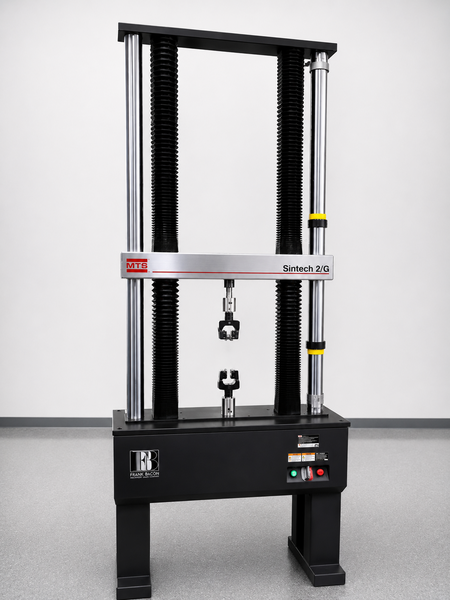

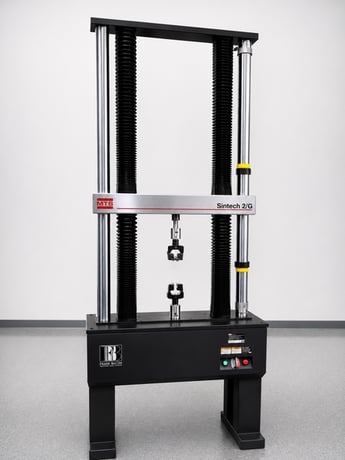

*Image is Representative of Reconditioned Load Frame
| #13143-03
DOWNLOAD SPEC SHEET
