56" width x 60" H x 32" L Grieve #SB-350, cabinet oven, gas fired, class A, solvent rated, 350°F

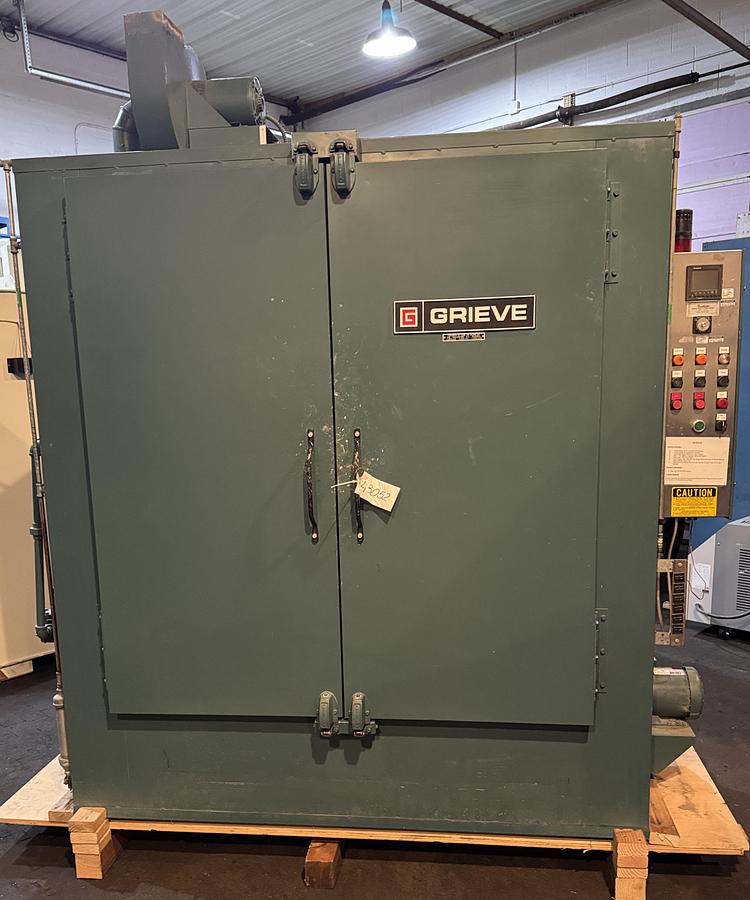

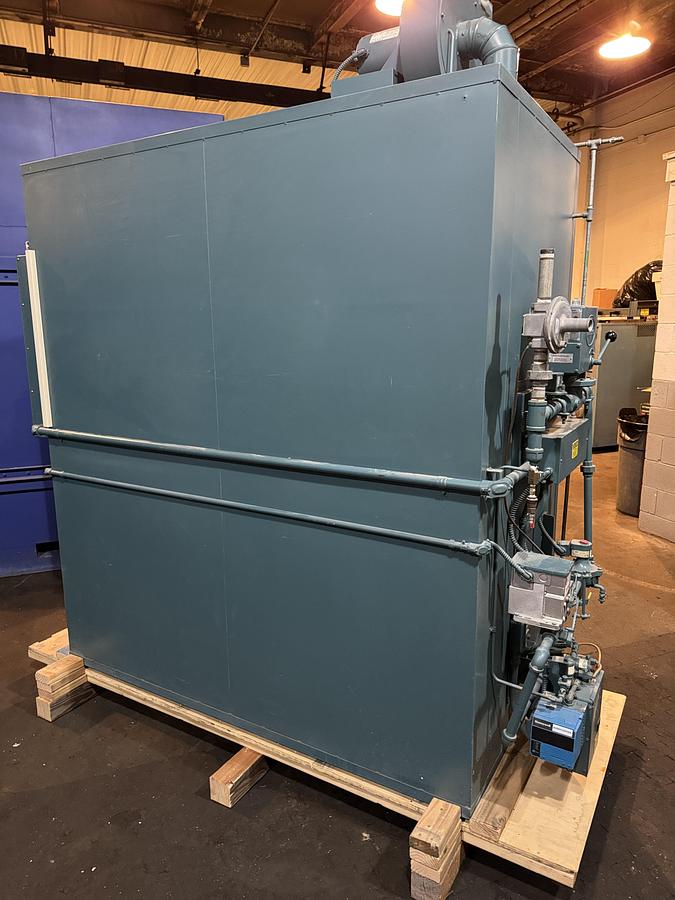

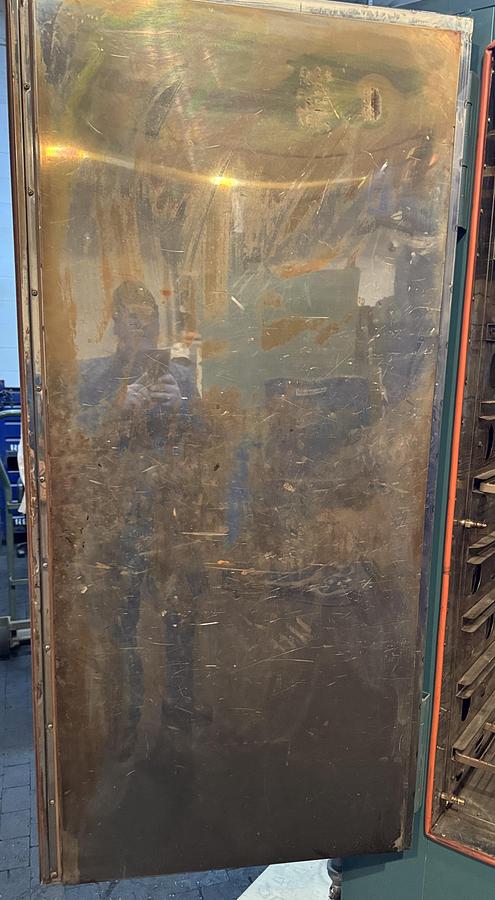

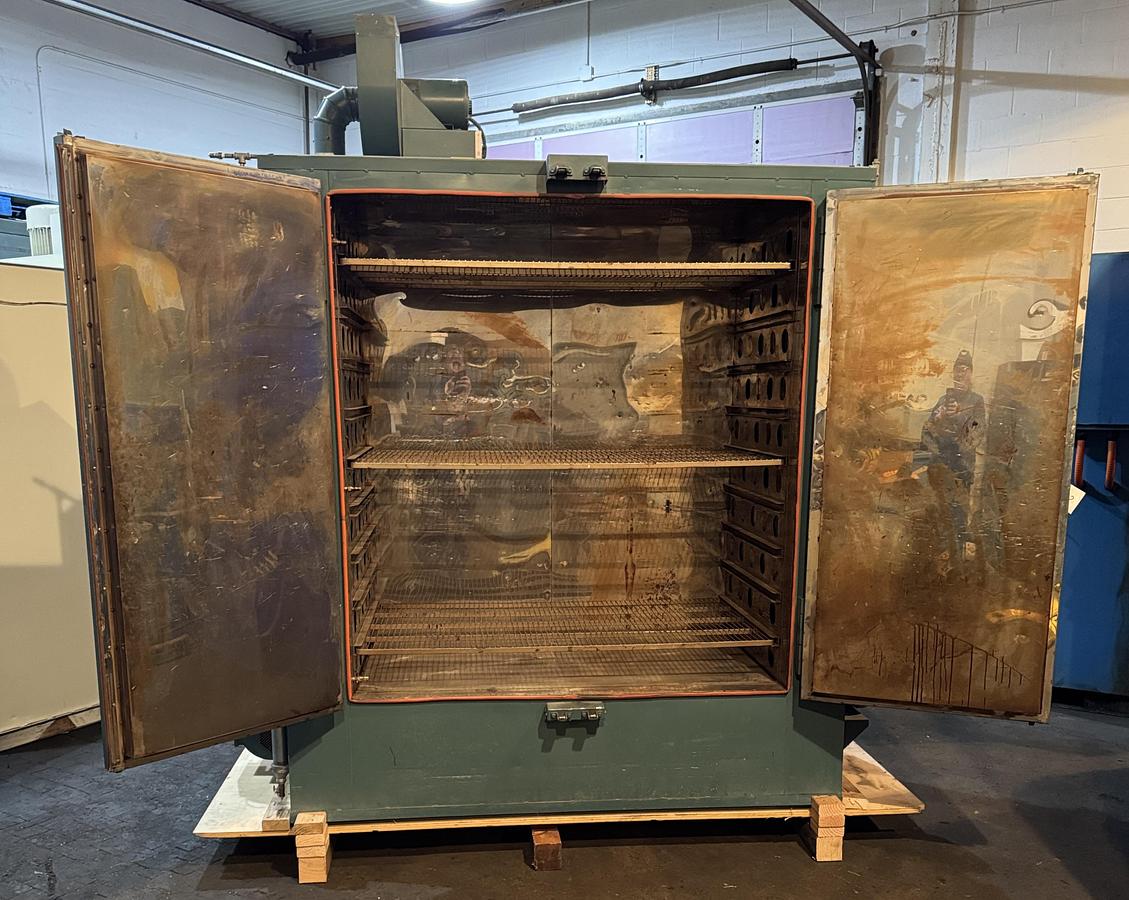

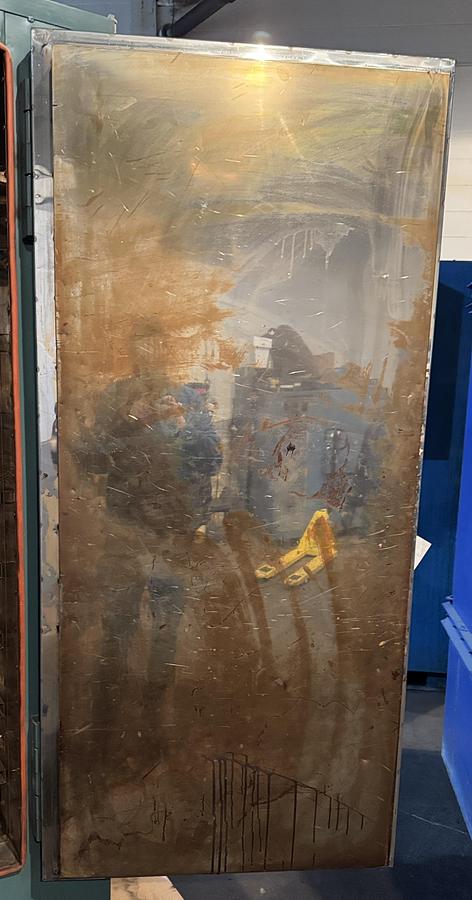

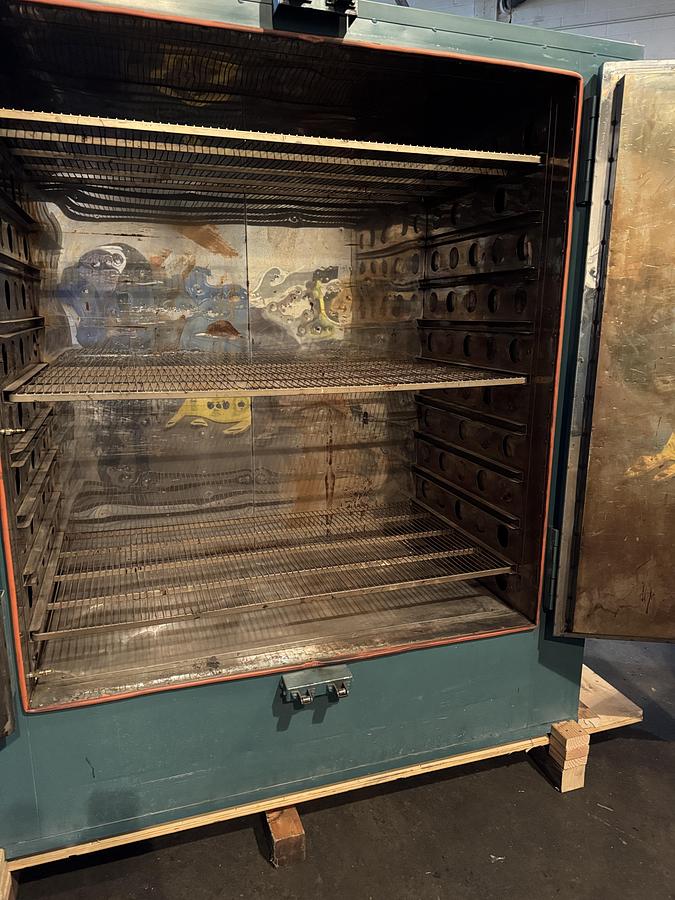

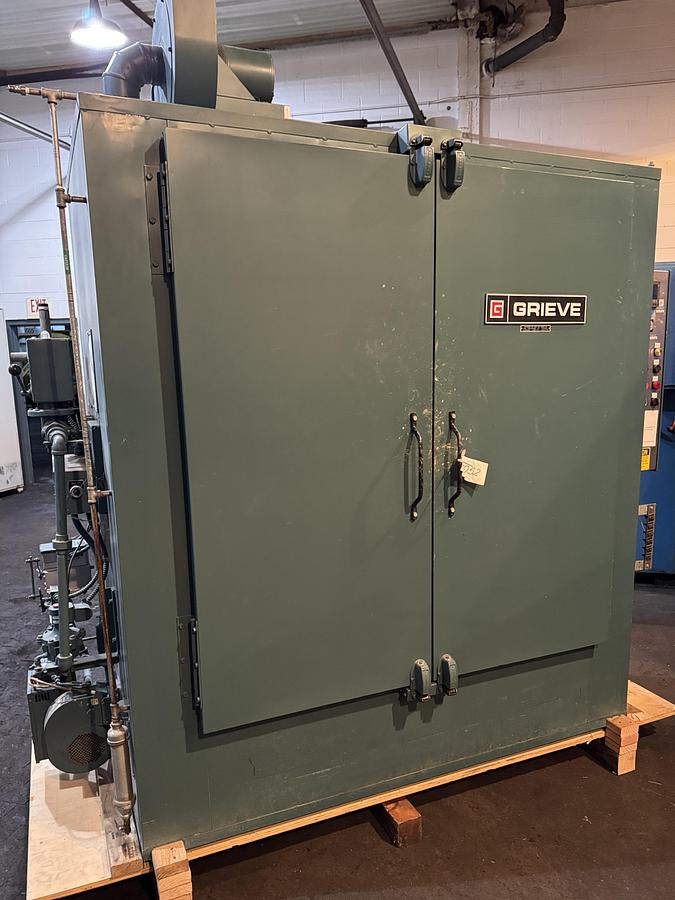

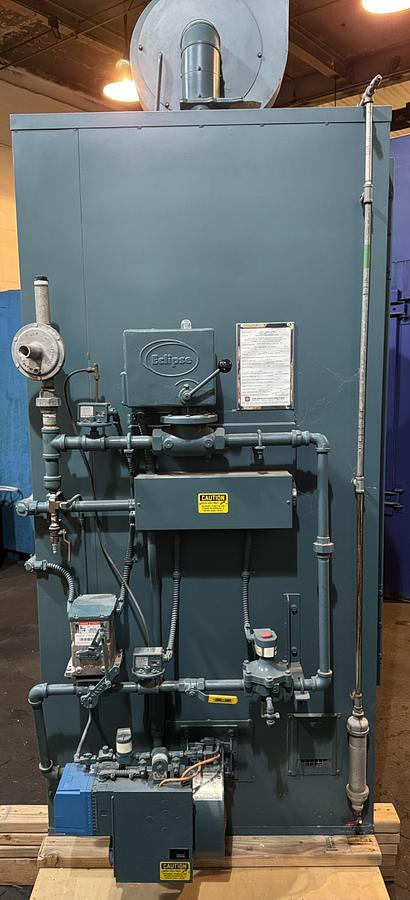

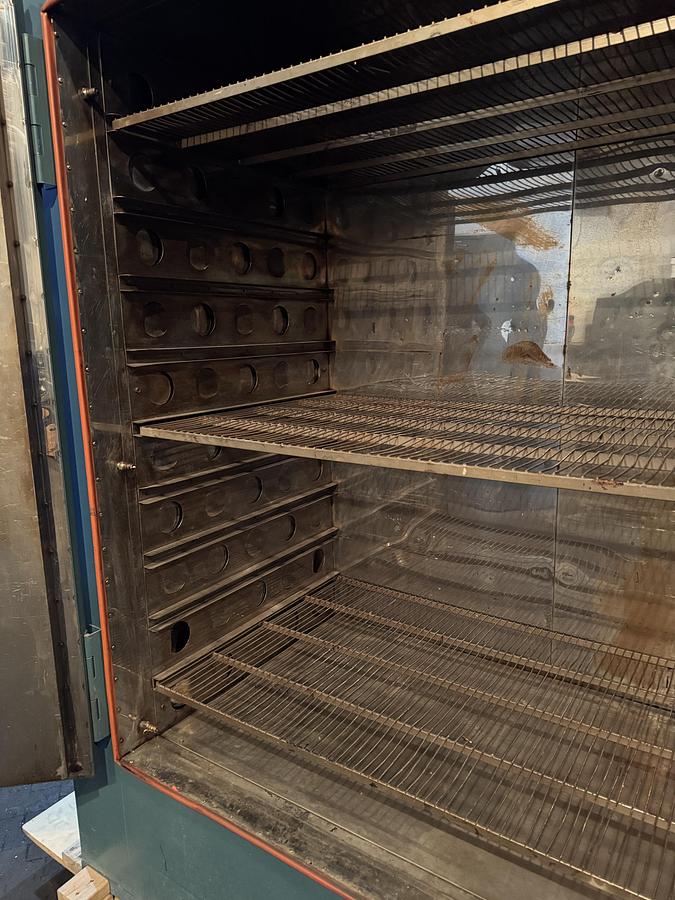

Grieve Class A/Solvent Rated Cabinet Oven with double doors, silicon rubber door gaskets and "Brixon" door ltaches which provides a good door seal. Stainless steel interior with nine (9) shelf brackets on 6” centers. Three (3) shelves are included with this oven. Located on the left hand side is an "Incinomite" package burner with spark ignition/Honeywell flame safety and Eclipse Safety Shut-Off Valve. A 1 HP direct driven circulating fan is located under the work area on the right-hand side. Heated air is circulated horizontally across the work chamber for good uniform heating. A powered exhauster is mounted on top of the oven. Fresh air inlet located on the left-hand side by burner. This oven is solvent rated with a Class A designation from the manufacturer. Oven has three (3) vacuum ports for vacuum pump and TC Multi-Point for six (6) thermocouples. Manual and Drawings are included with this oven. Oven electrics will be tested prior to shipping.

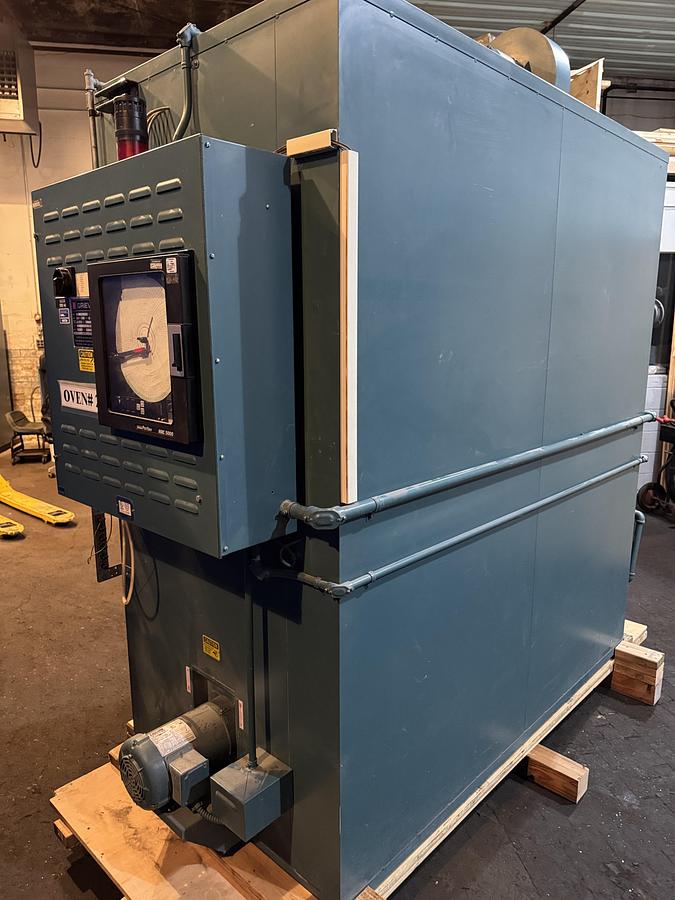

Controls are mounted and wired in a UL rated control cabinet located with disconnect on the right-hand side of the oven. Temperature controls consist of a Honeywell UDC 2800 (New in 2024) digital programmable/ramping controller and a Love analog high limit. Control switches for blower fan on/off, exhaust fan on/off, start button for purge and pilot light are flush mounted in the front panel. Purge timer, motor starters, fuses etc. are located inside the control cabinet.
