For Sale by Bud's Machine Tools
Surplus Record Dealer Since 2002
Location: Murray, UT
Contact Megan Poulsen
Phone Number: 385...> Show Phone Number 385-271-6718
Let the seller know you found their listing on Surplus Record!
Description
Overview
Description
If required, Mold loading system or other mold installation solutions are recommended to install the mold.
Specifications
Equipped With
Type:

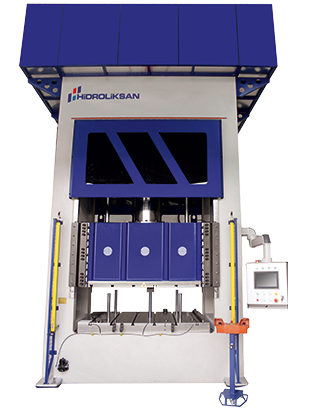

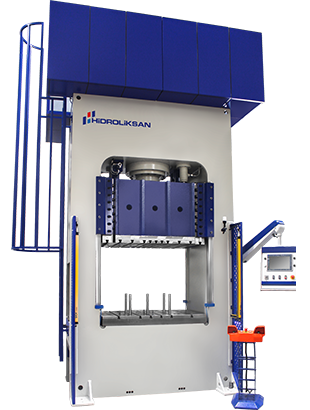

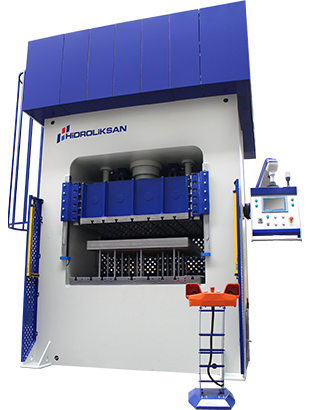

Hydraulic H-Frame Press
Manufacturer:
HIDROLIKSANModel:
HDD 500
Condition:
Build To Order
Stock #:
1828
Status:
For Sale
Description
If required, Mold loading system or other mold installation solutions are recommended to install the mold.
Specifications
*ADDITIONAL SIZES AVAILABLE UPON REQUEST
Capacity: 500 Metric Tons
Table Size: 1200x1500mm
Stroke: 1000 mm
Daylight: 1000 mm
Power: 30 kw
Pump: 116 Liters
Down Speed: 100mm/sec
Return Speed:140mm/sec
Working Speed: 10mm/sec
Equipped With
Standard Equipment
Chrome Plated Cylinder
Steel Welded Frame
HMI Touch Screen Control Panel
Safety Cover and Light Barrier
Two Hand Button Control
Adjustable Variable Pressure on HMI Touch Screen Control Panel
Adjustable Stroke on HMI Touch Screen Control Panel
Oil Pressure Gauge
Lubrication
Air Cooling
T-Slotted Table
User Manual
1 Year Warranty
Optional Equipments
Ejector Cylinder
Variable Speeds
Tool Loading Device
Get Your Price from Bud's Machine Tools!
