For Sale by Bud's Machine Tools
Description
Description

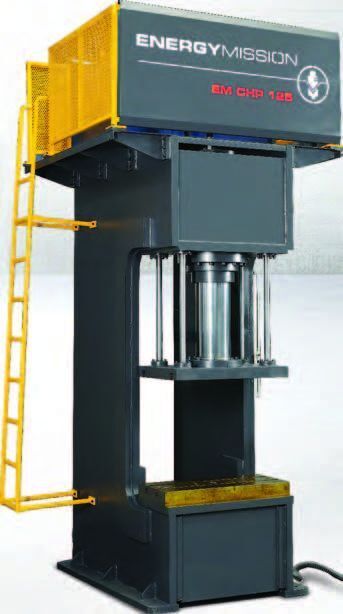

These presses are designed for various applications like straightening,
trimming, Punching & stamping applications. Its unique design offers
the flexibility & ease of operation as three sides are open.
Specifications
Capacity: 55 US Tons
Ram Stroke: 125mm
Open Height:400mm
Closed Height:275mm
Table Size:400x400 mm
Strokes per min: 11
Throat Depth:250
Power:5HP
Equipped With
Customized Indigenous robust FE Analyzed structure design
C Frame presses are available in various table
sizes and throat depth designs to facilitate the
various job requirement.
Suitable for jobs which need three side open area
accessibility
The cylinder is self guided and outer cylindrical
guide arrangements are specially designed to
suit the operation requirement for longer life.
Optional multiple speed for approach, pressing &
return strokes saves cycle time.
International quality hydraulic & electrical
components to ensure long service life
Hydraulic cylinders made of seamless hone tubes
& hard chrome plated rod. Latest technology
PTFE seals with bronze guide tapes in hydraulic
cylinders ensure long life.
Open Throat welded Structure
Get Your Price from Bud's Machine Tools!
Buyers Who Viewed This Listing Also Viewed …
55 Ton, Energy Mission #CHP-50, C-Frame Press, 5 HP, 5" stroke, 15.7" open, 10.8" Shut Height, 9.8" throat, 15.7" x 15.7" table, new

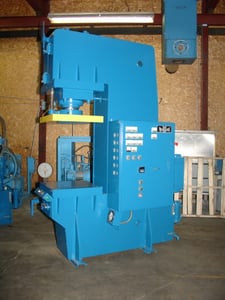

50 Ton, Wabash #C50-2424-2TMACX, C frame press, 25" x24", 30" daylight, 18" stroke

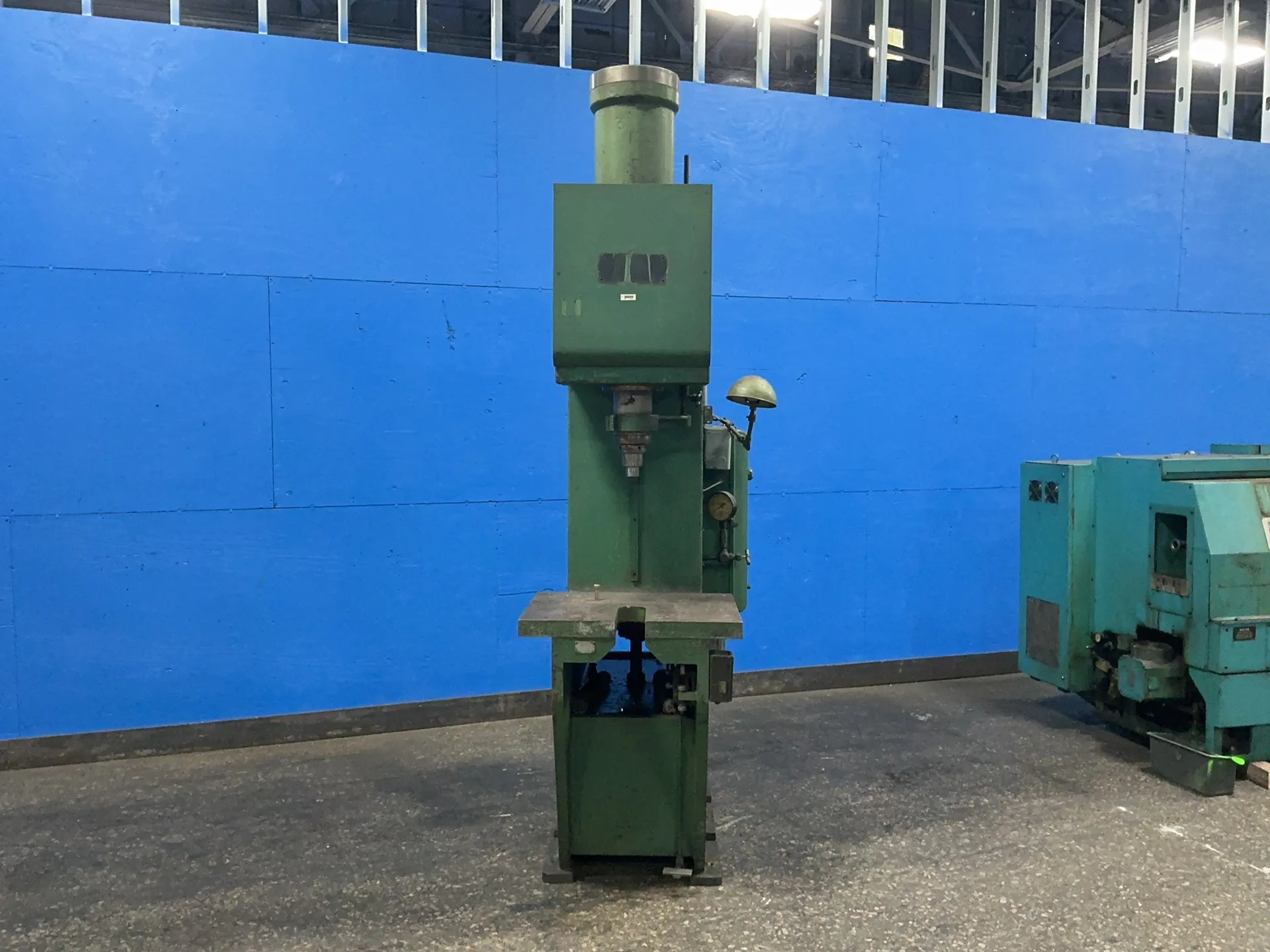

50 Ton, Hannifin, hydraulic C-frame press, 24" stroke, 15" throat, 30" x 27" bed area, 10 HP
