Description
This machine can bend up to 3/16" mild steel across the full 82" bed, or up to about 1/2" on a narrow 12" wide piece. For stainless, figure about 1/8" full width and up to 5/16" narrow. For aluminum, up to 3/8" full width and up to 1" narrow. These are tonnage-based estimates, actual max thickness depends on the V-die tooling on hand, wider dies allow thicker material but need to be in the shop's inventory.

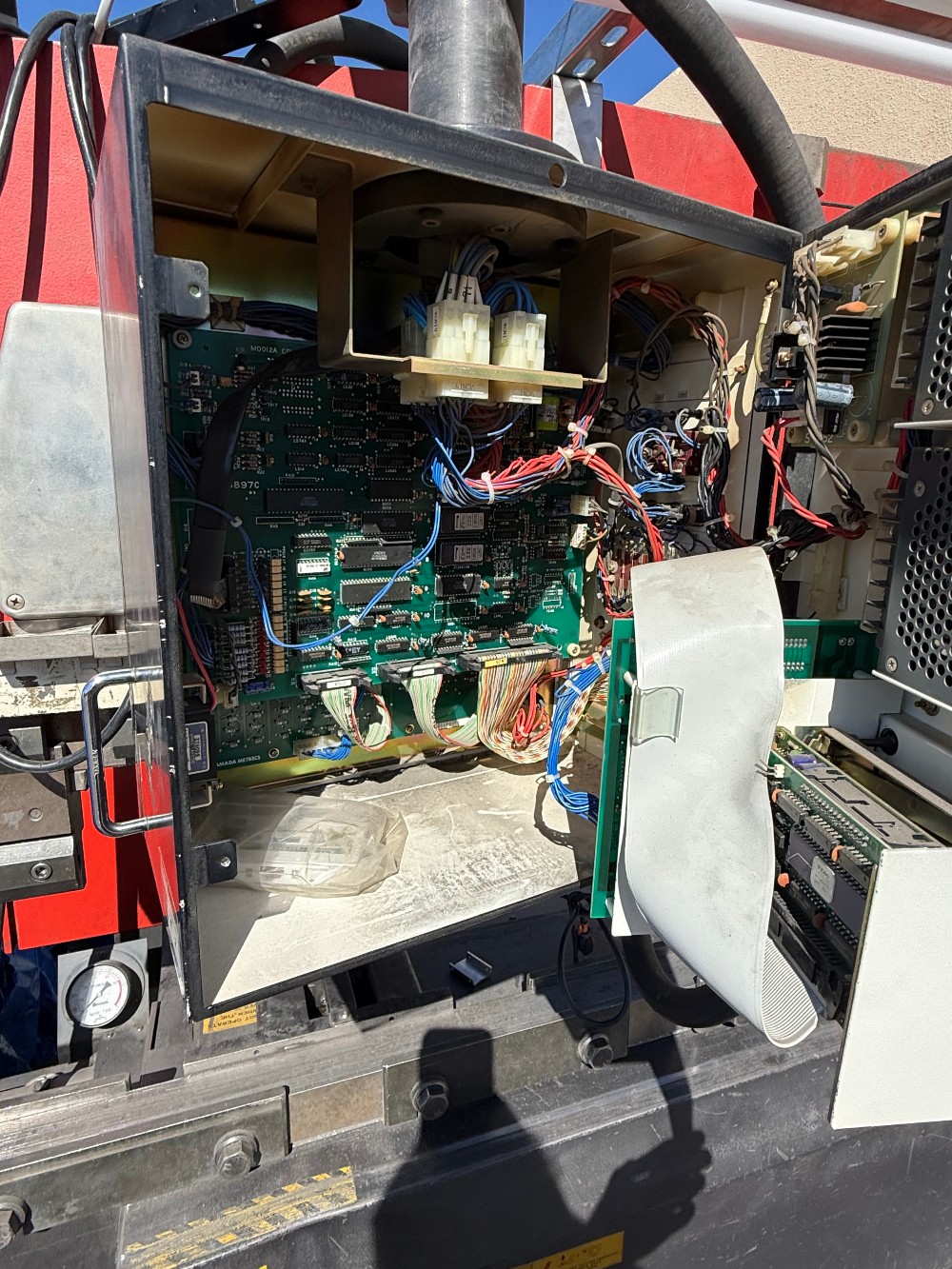

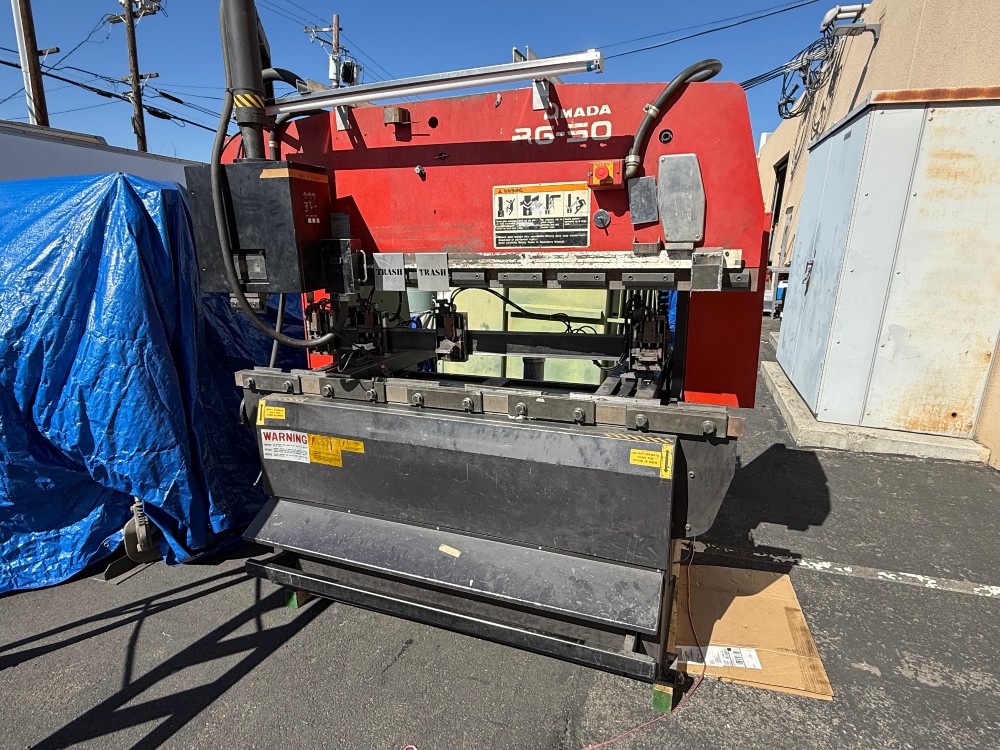

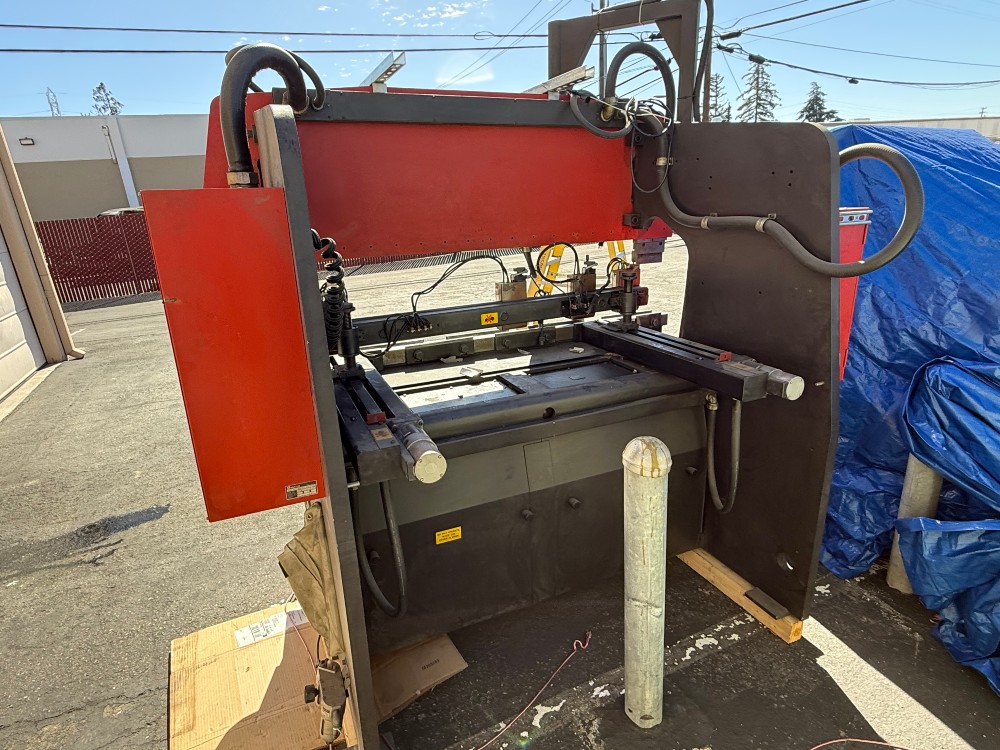

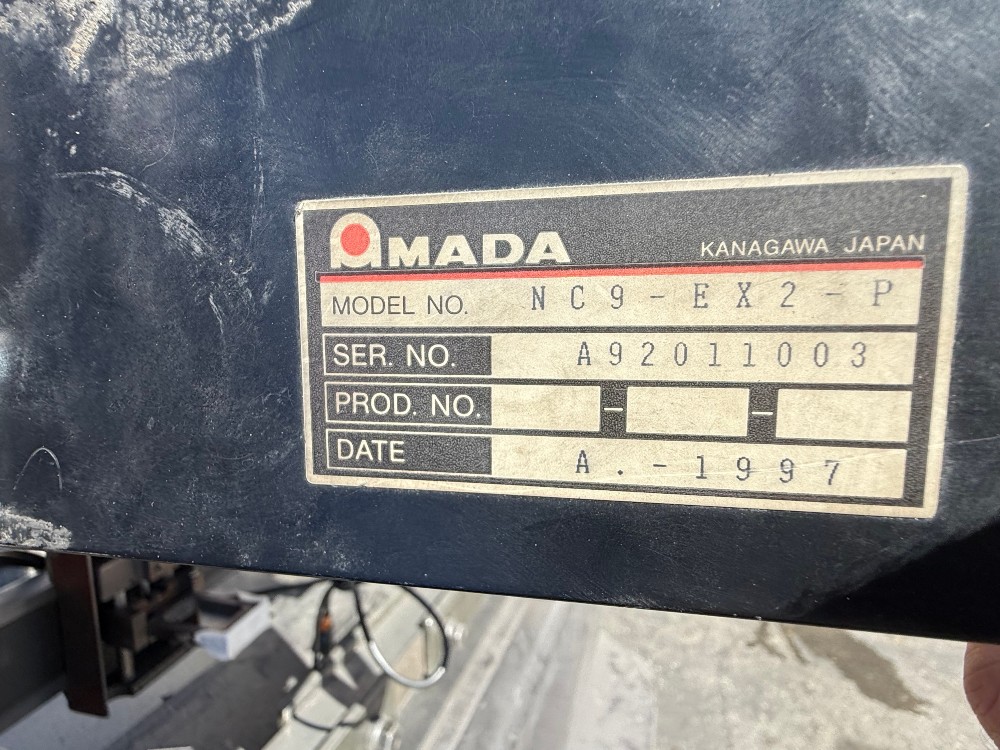

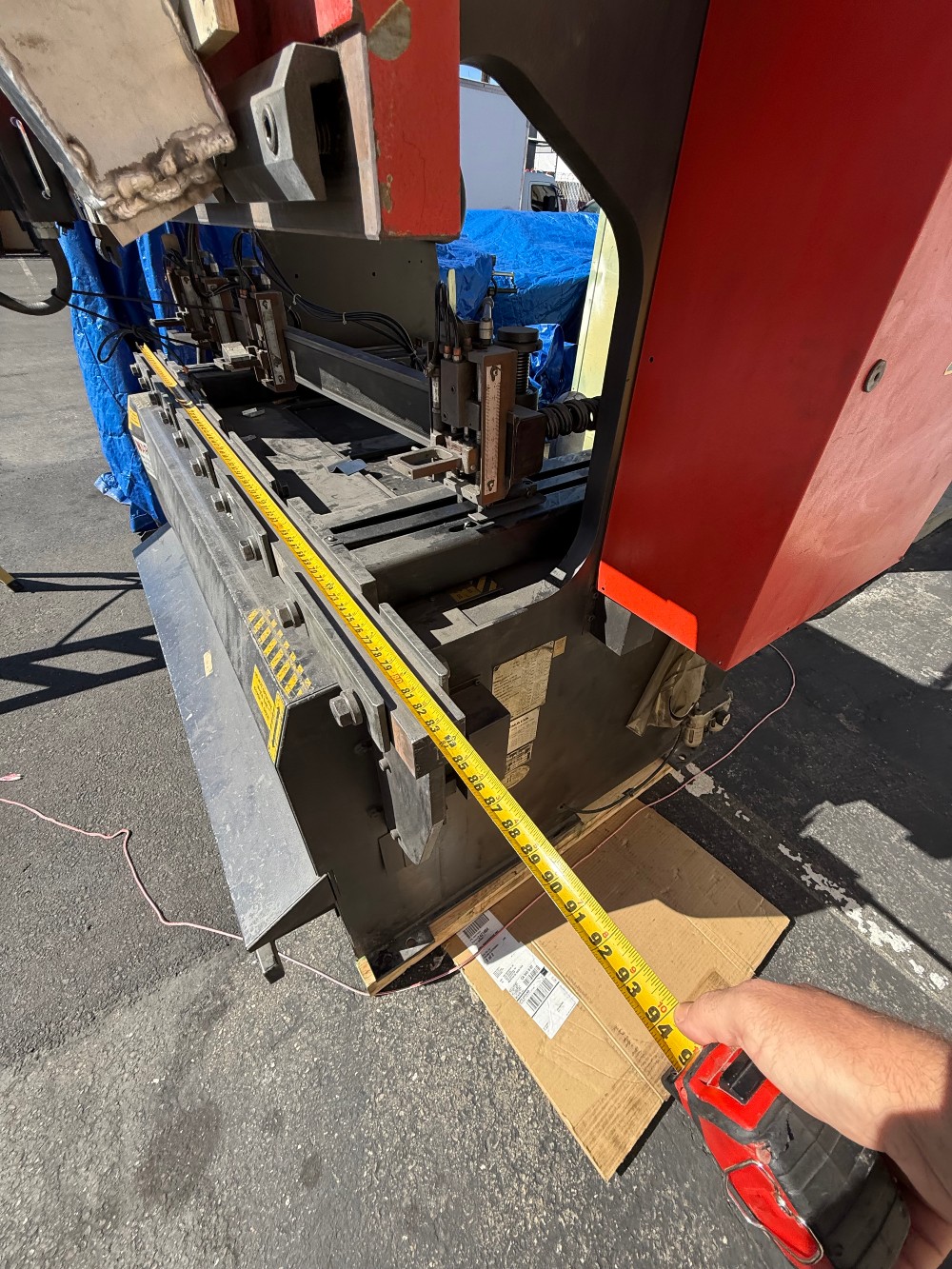

General specs: - Capacity: 55 tons - Bending length: 82" - Distance between uprights: 59.9" - Throat depth: 15.76" - Stroke: 3.9" - Open height: 14.58" - Main motor: 5 HP - Control: NC9-EXII CNC - Weight: approximately 6,600 lbs
Happy to send more photos or set up an in-person inspection. Let me know if you have any questions.
