For Sale by Southern Fabricating Mchy Sales
Description
1.2mm X 4.5’ Automatic Panel Bender with PC Based Numerical Control System, QT500-7 and Gray Iron 250 Casted Frame and Panel Thickness Detections System.
GENERAL SPECIFICATIONS
Feeding Structure: Pressing Arm
Max Bending Width: 55”
Stainless Steel Max Bending Thickness: 1.2mm
Cold Panel Max Bending Thickness: 1.5mm
Aluminum Panel Max Bending Thickness: 2mm
Min Panel Thickness: 0.014mm
Max Bending Size: 55” X 55”
Max Bending Height: 6.7” (Customizable 11.8”)
Min Bending Height: 0.12”
Four Side Forming Min, Inner Size: ~5.5”
Dimensions: 173” X 75” X 114”H
Weight: 12 Tons
Motor Power: 38 Kw
Bending Angle: 0 - 180°
INCLUDES: PC Based Numerical Control System, QT500-7 and Gray Iron 250 Casted Frame and Panel Thickness Detections System.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
Get Your Price from Southern Fabricating Mchy Sales!
Buyers Who Viewed This Listing Also Viewed:
60" Erbend #PBC1520, CNC Motorized Folding Machine, 0.079" max. steel/galvanized thickness, 0.3 sec/bend, 56.3 HP, CNC manipulator arm system

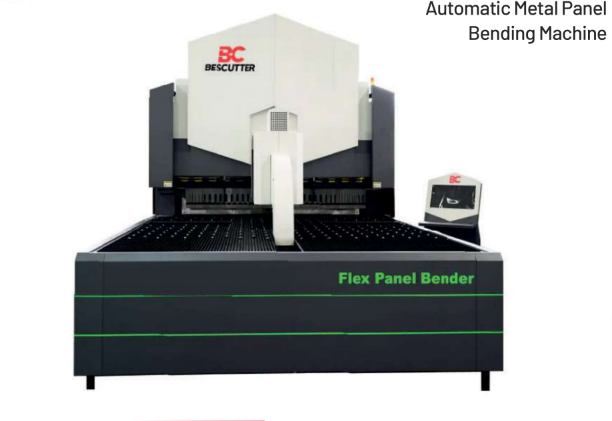

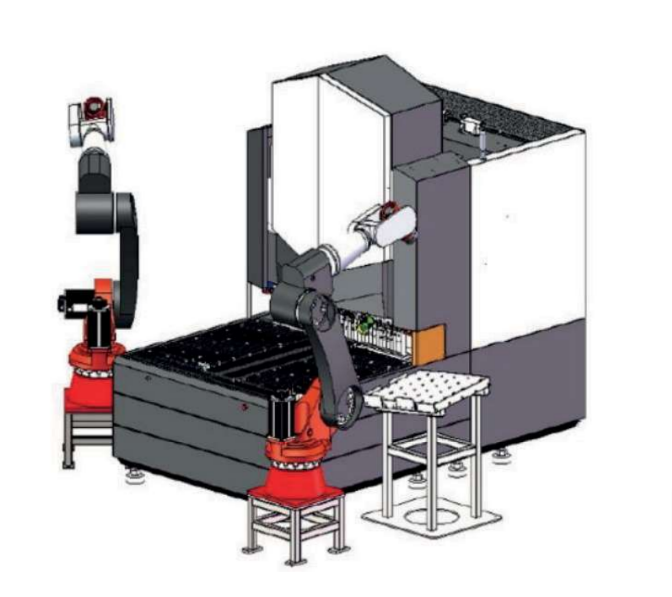

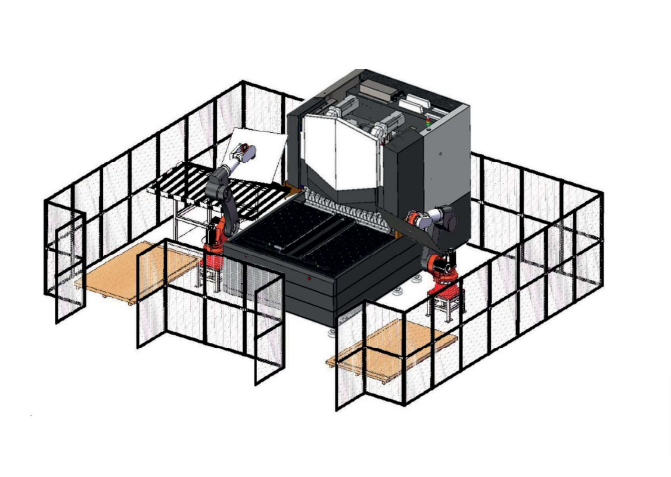

60" Bescutter Omni Series 15 Axis Automatic Flexible Panel Bender
