Gallons/Liters: 528.0
Stock # 20257
Price: $19,500 USD
1 / 4
Click to zoom in
1 / 4
For Sale by JM Industrial LLC
Surplus Record Dealer Since 1993
Location: Millwood, WV
Contact Sheldon Sharp
Phone Number: 304...> Show Phone Number 304-273-0795
Let the seller know you found their listing on Surplus Record!
$19,500 USD
Finance for as low as $395/mth
Description

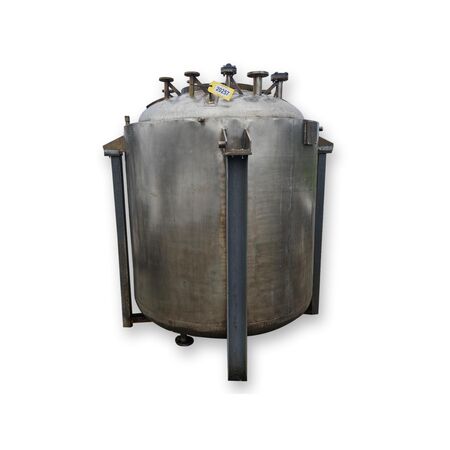

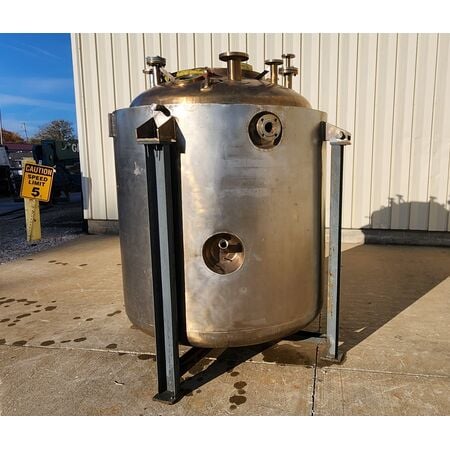

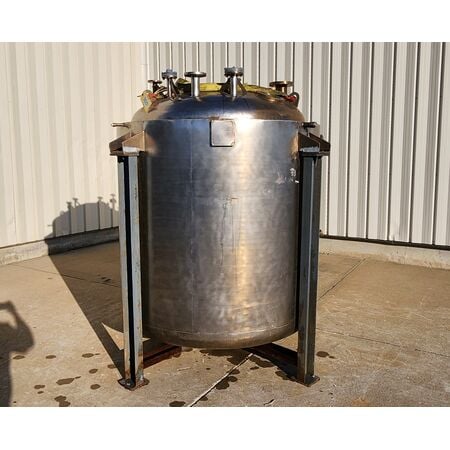

Used 2,000 L 316L Stainless Jacketed Pressure Vessel Reactor Slurry Feed Tank
Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm

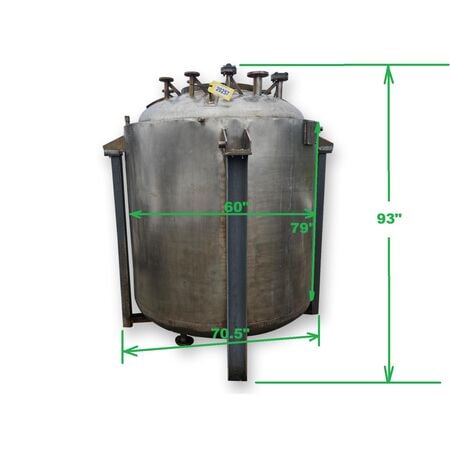

Vessel Dimensions: 1350mm X 1350mm cylinder length; Overall Vertical Height: 2001mm
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40 C (104 F)
Test Pressure: 2 KG/CM g (28.4PSI)
Internal baffle plates @ 90 , top-center mixer flange, inspection port, CIP spray ball.
Four-point side saddle brackets with carbon steel legs.
Mixer/agitator not included.
Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm
Vessel Dimensions: 1350mm X 1350mm cylinder length; Overall Vertical Height: 2001mm
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40 C (104 F)
Test Pressure: 2 KG/CM g (28.4PSI)
Internal baffle plates @ 90 , top-center mixer flange, inspection port, CIP spray ball.
Four-point side saddle brackets with carbon steel legs.
Mixer/agitator not included.
Inquire Further with JM Industrial LLC!
