515 HP Detroit #Series-60, 14.0 L remanufactured long block - DDEC V

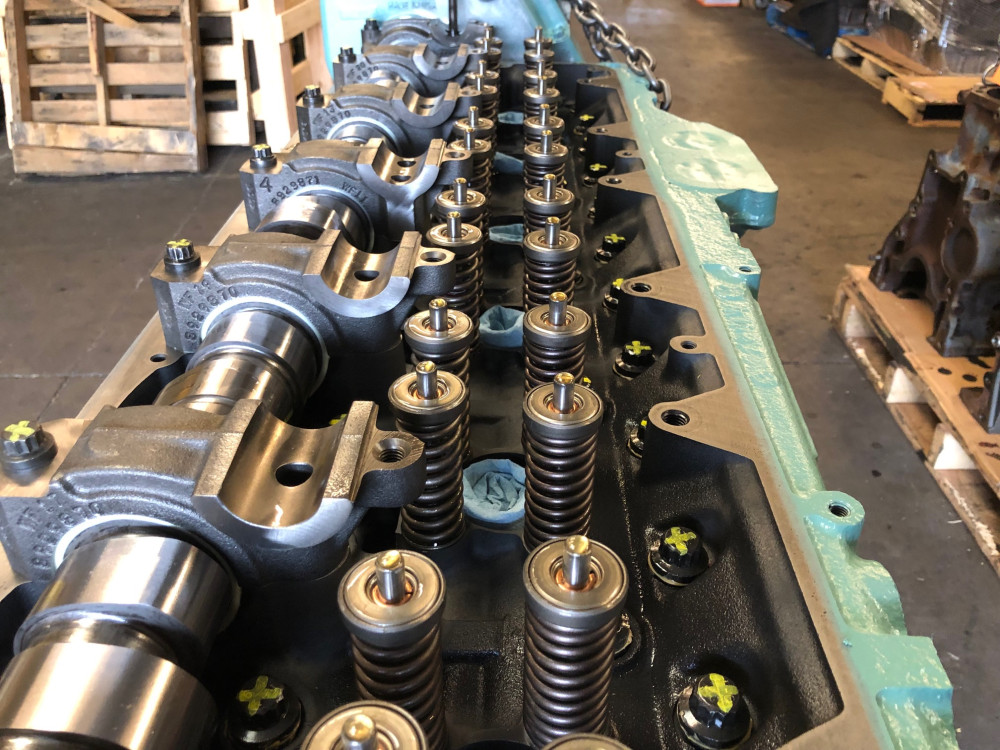

We offer a variety of both, over the road truck and industrial replacement engines for the Detroit Diesel 60 Series. Our remanufactured Detroit Diesel 60 Series engines (11.1 L, 12.7 L and 14.0 L) come as a 3/4 long block and are not running trim condition. Our remanufacturing process strips the core down to the bare block whereas the camshaft, crankshaft, engine block, connecting rods and cylinder head are all built back to original OEM spec. The long block is then finished with new aftermarket gaskets, liners, bearings, pistons and rings.

Detroit Diesel 60 Series Long Block Engine Includes:

• Reman Engine Block
• Reman Cylinder Head
• New Pistons
• Reman Connecting Rods
• Reman Camshaft and Lifters
• Reman Crankshaft
• Intermediate Cover
• Timed Front Gear Group
• Includes gaskets, liners, rings and ancillary components
• Fuel Pumps, Turbos, Injectors, Manifolds, Pan are available for additional purchase
• 1 Year Warranty (1st 6 Months Parts/Labor, 2nd 6 Months Parts Replacement Only
• NOTE: Core Charge is applied after sale

Common Serial Number Prefixes: 06R, DDECI, DDECII, DDECIII, DDECIV, DDECV

Detroit Diesel 60 Series Specs:

• Displacement – 14.0 L Displacement
• Cylinders – 6
• Type- Electronic (DDEC System)
• Combustion – Direct Injected
• Horsepower – 330-505 HP
• Max Torque – 1350-1650 ft-lbs @1200 RPM
• Optimal Running Speed – 1800 RPM
• Bore and Stroke – 5.12 x 6.30 in (130 x 160mm)
• Compression Ratio: 16.5:1
• Aspiration – Water Cooled
• Weight – 2640 lbs approx, dry
• Oil Capacity – 46 quarts
