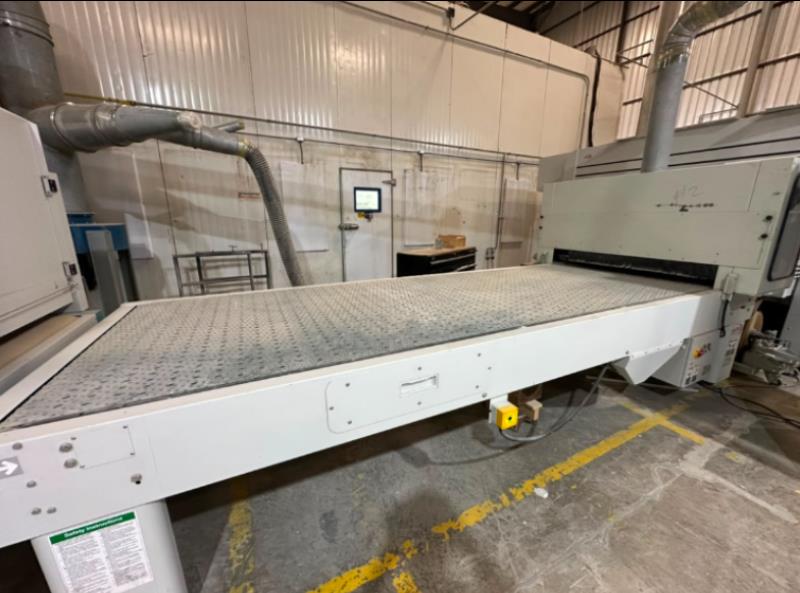

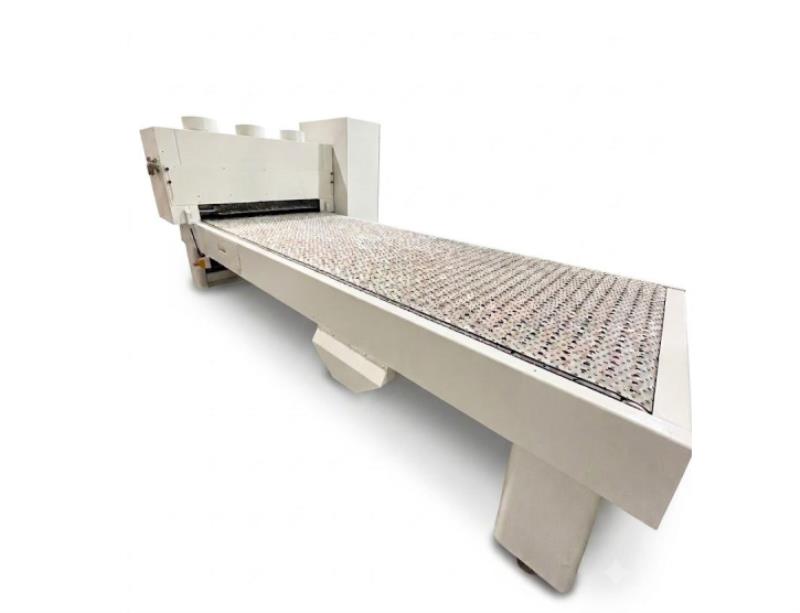

51" x 177" Cefla #TNS-4500/A, belt conveyor, 2017

Estimated monthly payment valid upon approved credit.

Request Formal Quote

The CEFLA Belt Handling Type TNS 4500/A is an industrial vacuum belt conveyor designed to transport, stabilize and accurately position wood panels and furniture components throughout automated finishing lines. The machine utilizes a perforated conveyor belt combined with an integrated vacuum chamber and centrifugal blower to generate continuous negative pressure, securely holding workpieces against the belt during transport. This vacuum retention system prevents movement, vibration and misalignment while components pass through sanding, painting, drying and curing operations, ensuring consistent product positioning and superior finishing quality. The conveyor operates in synchronization with adjacent production equipment through PLC control, improving production flow, minimizing manual handling and increasing the overall efficiency, reliability and safety of industrial woodfinishing operations.Machine Type: Vacuum Belt Conveyor (Belt Conveyor with Suction) Model: TNS 4500/A Manufacturer: Cefla Finishing Machine Function: Automatic conveying and positioning of workpieces through finishing lines Conveyor Type: Continuous vacuum belt conveyor Conveyor Length: 4,500 mm Maximum Working Width: Up to 1,300 mm Conveyor Belt: Wear-resistant perforated conveyor belt Vacuum Holding System: Integrated suction chamber beneath the conveyor belt Vacuum Generation: Integrated centrifugal blower for negative pressure generation Suction System: Continuous vacuum retention for workpiece stabilization during transport Drive System: Geared electric motor with variable frequency drive (VFD) Conveyor Speed: Variable, electronically synchronized with production line equipment Control System: PLC integrated with upstream and downstream finishing equipment (NOT INCLUDED IF PURCHASED SEPARATE OF THE LINE) Workpiece Detection: Photoelectric sensors for automatic panel detection Machine Frame: Heavy-duty welded steel construction Adjustable Leveling Feet Electrical Supply: 400–480 V, 3 Phase, 50/60 Hz Approximate Dimensions: 4.50 × 1.60 × 0.95 m Approximate Weight: 900–1,100 kg
