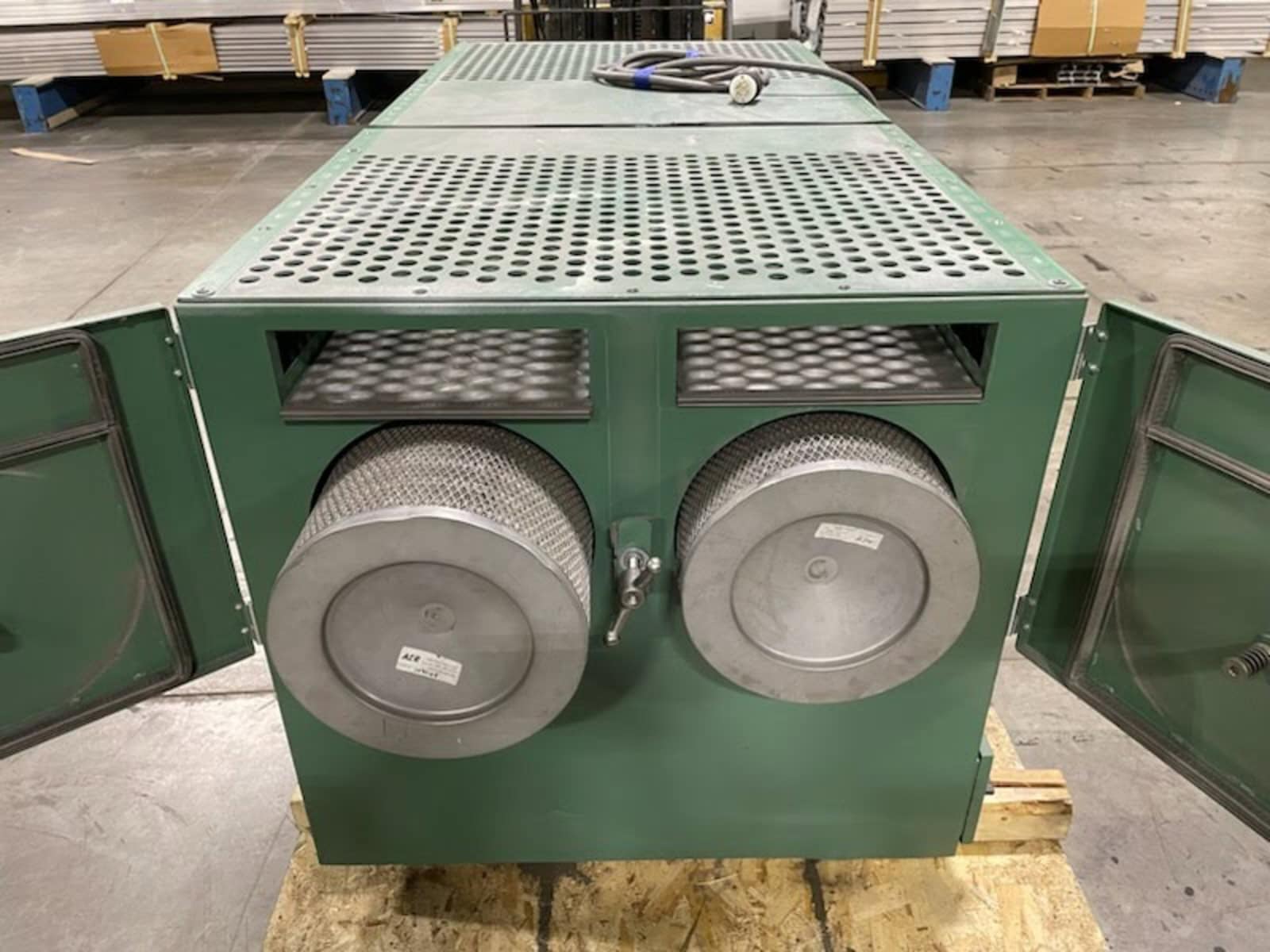

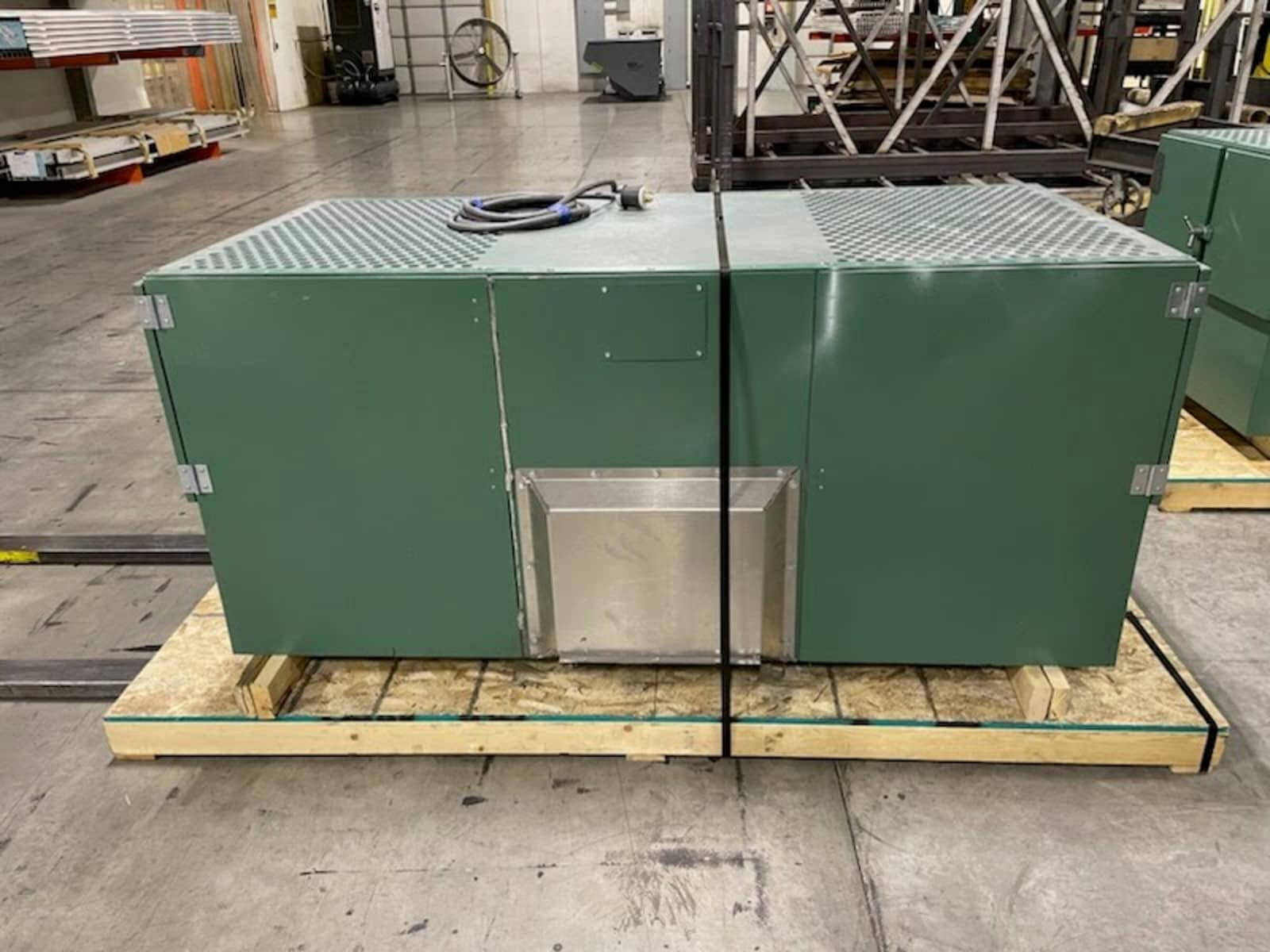

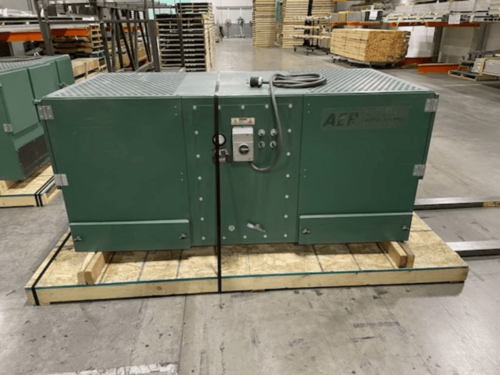

42" x 72" AER #APB-4276, Downdraft Bench Table, 480 V., 960 sq.ft., 7.5 HP, 105 PSI, 2020

Nominal CFM: 5050 CFM @ 4″ w.g. 250 FPM Face Velocity

480V 3PH 8.4A 60hz

Table Top Dimensions: 42” x 72”

Total Filter Area: 960 sq ft

Motor: 7.5HP

Compressed Air Requirements: 90-105 psi, dry

Dimensions: 76.75″ x 43″ x 62″
Weight: 410 lbs

Certfications: UL and CSA

Airflow ranges from 2500 to 5050 CFM depending on table top size and motor horsepower.

99% filter efficiency at 0.5 microns particulate size.
Sealed doors with tool-less entry for cartridge change.

Heavy duty galvanized grating table top and rear wall hinged sides are standard.

Direct drive backward inclined airfoil non-overloading fan.

Manual push button filter cleaning system.
Mini-helic filter change-out gauge.

High capacity dust drawers.

11 and 14 gauge heavy duty metal construction.

Kelly Green industrial textured powder coat finish.

Manual motor starter.
