For Sale by Reid Machinery Inc
Surplus Record Dealer Since 2023
Location: Lansing, MI
Contact Sales Dept.
Phone Number: 517...> Show Phone Number 517-887-8300
Let the seller know you found their listing on Surplus Record!
Description

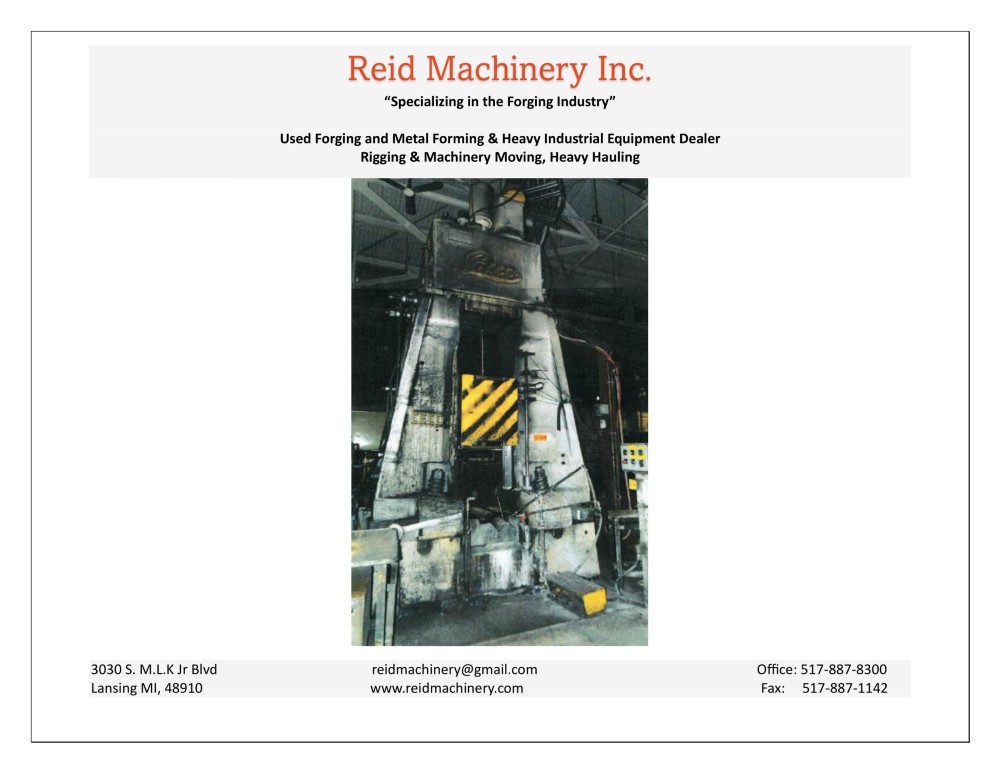

| 5000 Lasco KH250 Drop Hammer Asset: L058 | ||||||||||
| Serial Number: B-13400A | ||||||||||
| Model Number: KH250 | ||||||||||
| Blow Energy: 2500 KPM | ||||||||||
| Max. Drop Height: 1100 mm | ||||||||||
| Die Height: 400 mm | ||||||||||
| Rem Weight: 5070 lbs | ||||||||||
| Distance between Guides: 700 mm | ||||||||||
| Ram F to B: 590 mm | ||||||||||
| Motor Capacity: 40 kw | ||||||||||
| Anvil Weight: 59520 lbs | ||||||||||
| Net Weghit if Hammer: 121253 lbs | ||||||||||
| Total Height from Floor: 5600 mm | ||||||||||
| Total Height of Hammer: 6570 mm | ||||||||||
| Max Die Weight: 926 lbs | ||||||||||
| Oil Filling: 500 litres | ||||||||||
| Taking out of service, disassembled and transferred to be stored at Reid Machinery site. Assembly and accessories not included. | ||||||||||

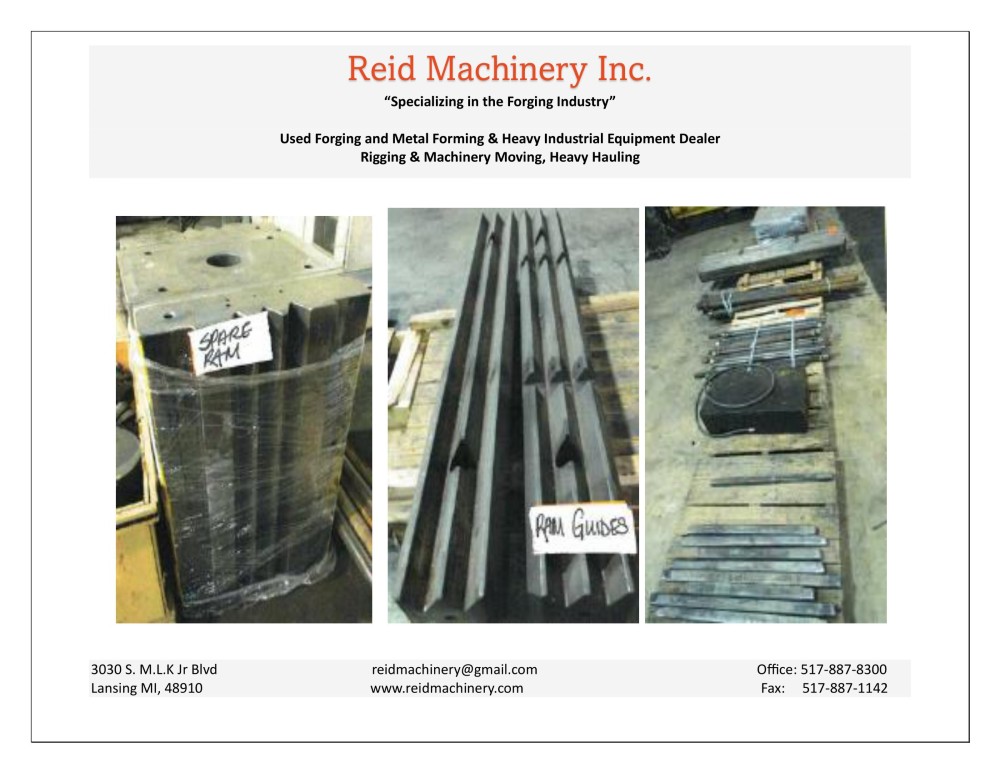

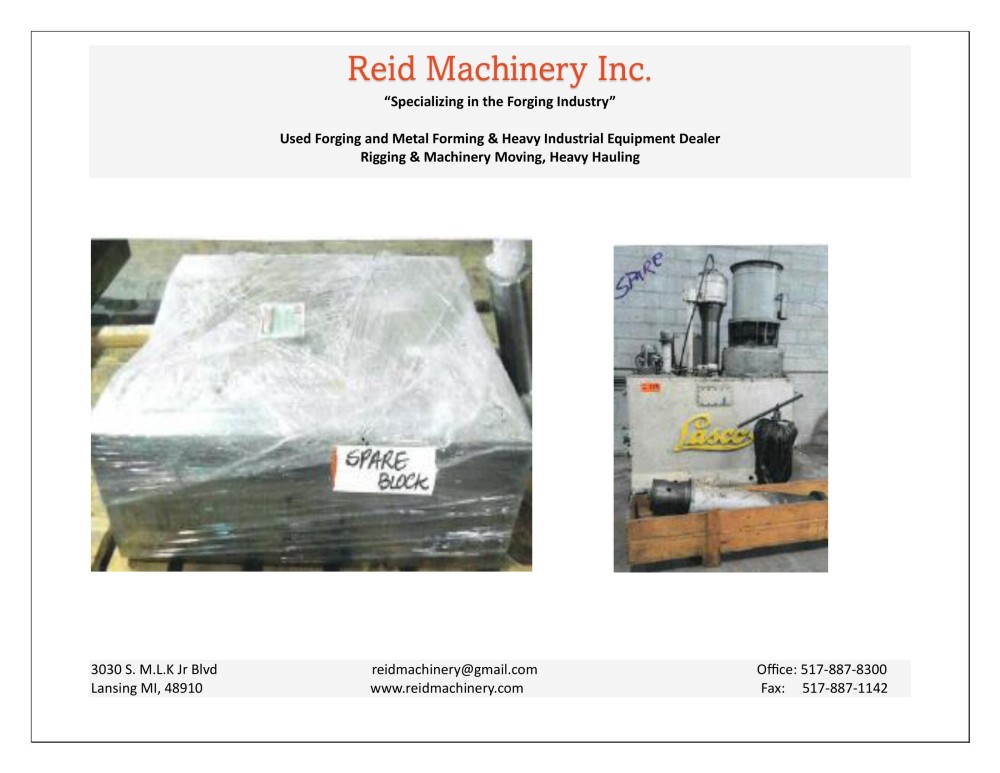

| Spare Parts Included: 1- Spare Ram. 2- Ram Guides. 3- Hydraulic System. 4- Spare Block.The base of the press is steel. During the ultrasound inspaction a small hairline cracks was idientified on the base. | ||||||||||
| Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with the exception made only by Reid Machinery Inc and all parties involved in the transaction. Specifications of machine: (Subject to buyer verification) | ||||||||||
Get Your Price from Reid Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
6000 lb. Chambersburg Ceco-drop Hammer #60-CD-2594-L
Category: Drop Hammers
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Chambersburg
Model: 60-CD-2594-L
6000 lb CECO Drop Hammer Asset: L019 Model: 60-CD -2594-L Cylinder Bore: 15" - 381 mm Inlet & Exhaust: 3.5" - 89 mm Above Floor: 242 3/4" - 6166 mm Floor Space: L-R & F-B 68" x 130" - 1727 mm x 3302 mm Ram Stroke: 52" - 1321 mm Distance From Top of Anvil Cap to Bottom of Guide Std. Gulde: 21.1/4" - 540 mm Ext ...more
JUST ADDED!

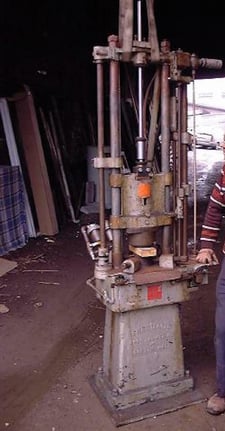

100 lb. drop Cutler-Hammer, 93" height, 2380 lb. weight, AS IS
