For Sale by Presses for Industry
Surplus Record Dealer Since 1989
Location: Detroit, MI
Contact Chase Thornton
Phone Number: 313...> Show Phone Number 313-839-9300
Let the seller know you found their listing on Surplus Record!
Description
PRELIMINARY SPECIFICATIONS

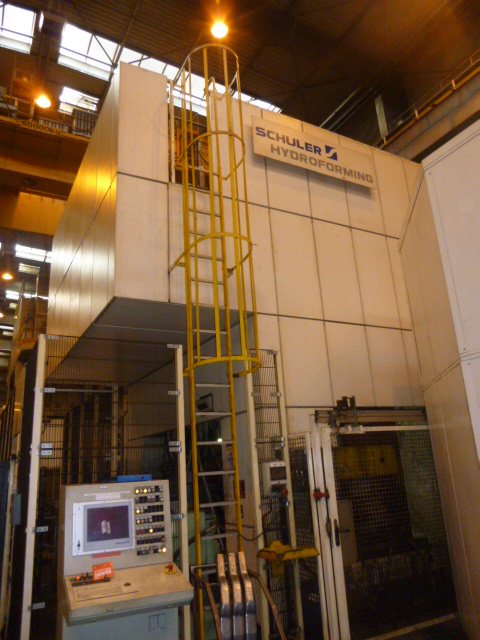

SCHULER HYDROFORM PRESS
MODEL SHP 50000 / 3150 x 2150
YEAR 2002
5000 TON CAPACITY (50000 kN)
35.43" STROKE (900 mm)
74.80" DAYLIGHT (1900 mm)
124" LR X 84" FB SLIDE (3150 mm X 2150 mm)
178" LR X 84" FB TABLE (4520 mm X 2150 mm)
129" BETWEEN COLUMNS LEFT TO RIGHT (3280 mm)
SPEEDS
365 mm/s SPEED FAST APPROACH
235 mm/s RETURN SPEED (ADJUSTABLE CONTINUOUS)
7, 0 mm/s WORKING SPEED
THREE PHASE POWER SUPPLY 400V

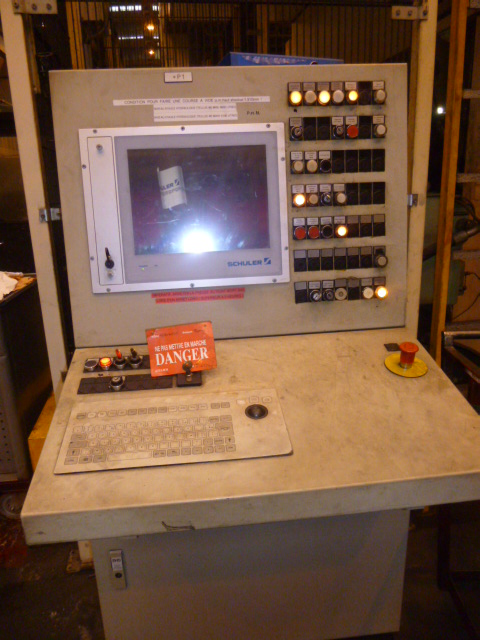

CONTROL VOLTAGE 230V AC
PRESSURE VALVES 24V DC
FREQUENCY 50Hz
APPROX. O.A. DIMENSIONS
APPROX. 215" X 235" X 264" HEIGHT ABOVE FLOOR
APPROX. 145" DEPTH PIT
APPROX. WEIGHT 679,000 LBS (308000 kg)
APPROX. SHIPPING WEIGHTS
(1) BASE BED 150,000 LBS (68,000 kg)
(1) CROWN 132,000 LBS (62,000 kg)
(1) SLIDE 53,000 LBS (24,000 kg)
(1) TABLE 51,000 LBS (23,000 kg)
(2) SLIDE CYLINDER 64,000 LBS (29,000 kg) each
(4) UPRIGHTS 10,120 LBS (4,600 kg) each
(4) TIE ROD W/O NUT 14,500 LBS (6,600 kg) each
MISC 66,000 LBS (30,000 kg)
THIS PRESS WAS WELL MAINTAINED BY THE PLANT
THE PRESS IS DISASSEMBLED AND IN STORAGE FOR INSPECTION (IN GERMANY)
THIS PRESS IS AVAILABLE FOR IMMEDIATE DELIVERY!!!
SCHULER HYDROFORM PRESS
MODEL SHP 50000 / 3150 x 2150
YEAR 2002
5000 TON CAPACITY (50000 kN)
35.43" STROKE (900 mm)
74.80" DAYLIGHT (1900 mm)
124" LR X 84" FB SLIDE (3150 mm X 2150 mm)
178" LR X 84" FB TABLE (4520 mm X 2150 mm)
129" BETWEEN COLUMNS LEFT TO RIGHT (3280 mm)
SPEEDS
365 mm/s SPEED FAST APPROACH
235 mm/s RETURN SPEED (ADJUSTABLE CONTINUOUS)
7, 0 mm/s WORKING SPEED
THREE PHASE POWER SUPPLY 400V
CONTROL VOLTAGE 230V AC
PRESSURE VALVES 24V DC
FREQUENCY 50Hz
APPROX. O.A. DIMENSIONS
APPROX. 215" X 235" X 264" HEIGHT ABOVE FLOOR
APPROX. 145" DEPTH PIT
APPROX. WEIGHT 679,000 LBS (308000 kg)
APPROX. SHIPPING WEIGHTS
(1) BASE BED 150,000 LBS (68,000 kg)
(1) CROWN 132,000 LBS (62,000 kg)
(1) SLIDE 53,000 LBS (24,000 kg)
(1) TABLE 51,000 LBS (23,000 kg)
(2) SLIDE CYLINDER 64,000 LBS (29,000 kg) each
(4) UPRIGHTS 10,120 LBS (4,600 kg) each
(4) TIE ROD W/O NUT 14,500 LBS (6,600 kg) each
MISC 66,000 LBS (30,000 kg)
THIS PRESS WAS WELL MAINTAINED BY THE PLANT
THE PRESS IS DISASSEMBLED AND IN STORAGE FOR INSPECTION (IN GERMANY)
THIS PRESS IS AVAILABLE FOR IMMEDIATE DELIVERY!!!
Get Your Price from Presses for Industry!
