5000 lbf Tinius Olsen Locap Tensile Tester

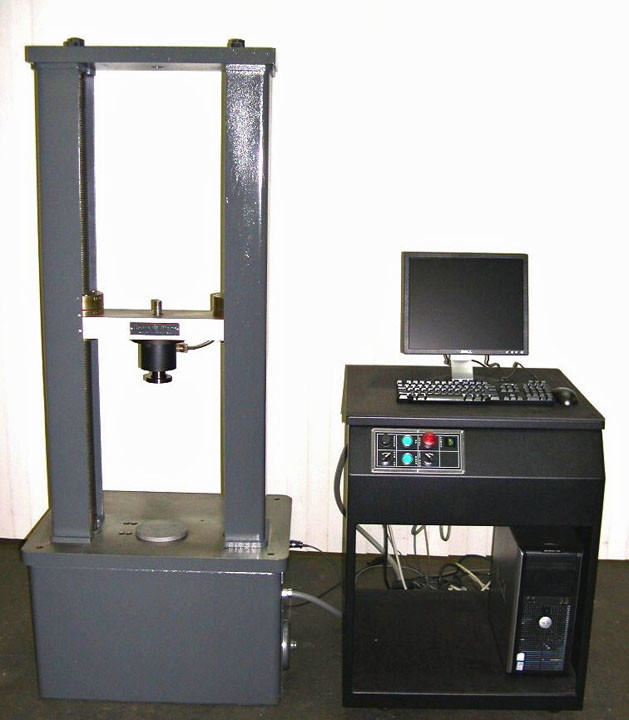

(1) Reconditioned 6,000 lbf (30 kN) Capacity Tinius Olsen, Model LoCap, Electro-Mechanical Tension and Compression Testing Machine updated with new SCR Variable Speed Drive Controller and PC Controls

Tinius Olsen Model LoCap

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 15"

Testing Stroke: 48"

Table Size (W x D): 15" x 21"

Testing Speed (IPM): .0002 – 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

New Control Console (W x D x H): 25" x 27" x 35½"

Load Frame (W x D x H): 38" x 21½" x 81"

Weight (lbs.): 2,200

Electrical Requirements (V,Hz,PH): 230, 60, 1

EQUIPPED WITH:

• Computer System With Keyboard & Mouse
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with null modem cable and power transformer.
• Electronic Material Testing Control System in custom Cabinet/Desk with PC/Manual Controls.
• New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
