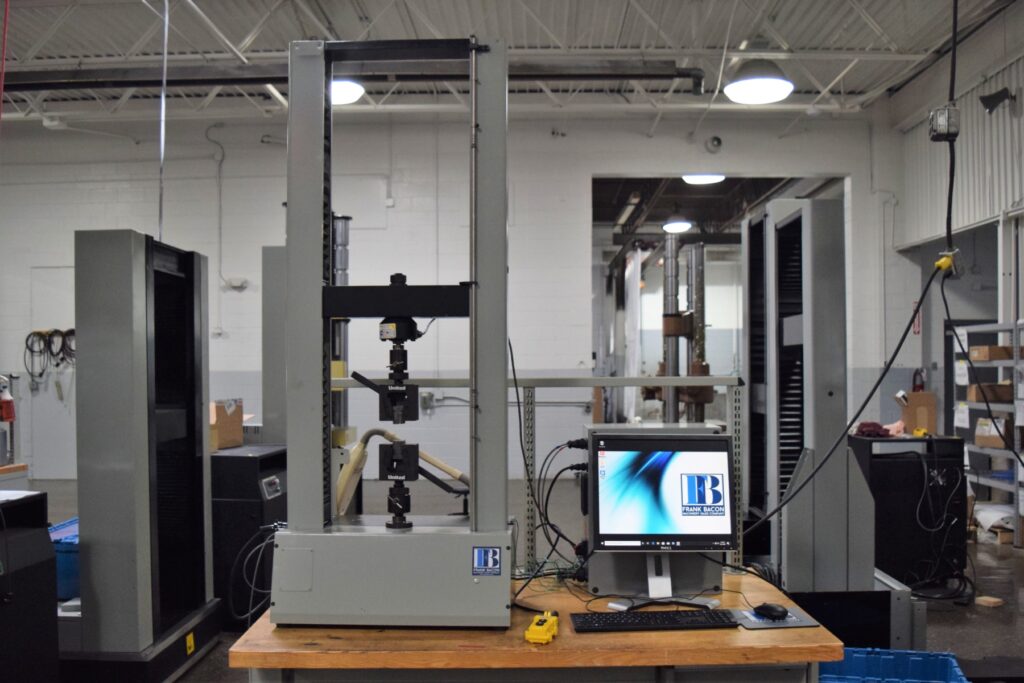

5000 lbf (20kN) United #SSTM-20kN, table-top electro-mechanical two screw unispace testing machine

Remanufactured 5,000 lbf (20 kN) Capacity United, Model SSTM-20kN, Table-Top Electro-Mechanical
Two Screw Unispace Tension and Compression Testing Machine.
United SSTM-20kN

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 45"
Compression Testing Opening (Less Tooling): 45"
Distance Between Columns/Screws: 16"
Testing Stroke: 45"
Testing Speed (IPM): .001 to 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Table Top Console (W x D x H): 24" x 24" x 24"
Load Frame (W x D x H): 26" x 20" x 64"
Approximate Weight (Lbs): 500
Electrical Requirements (V,Hz,PH,A): 120V, 60Hz, 1PH

EQUIPPED WITH:
• Computer System with Key Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB
Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.
• 20kN Tension & Compression Load Cell

FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty*Representative Images
