For Sale by Reid Machinery Inc
Description

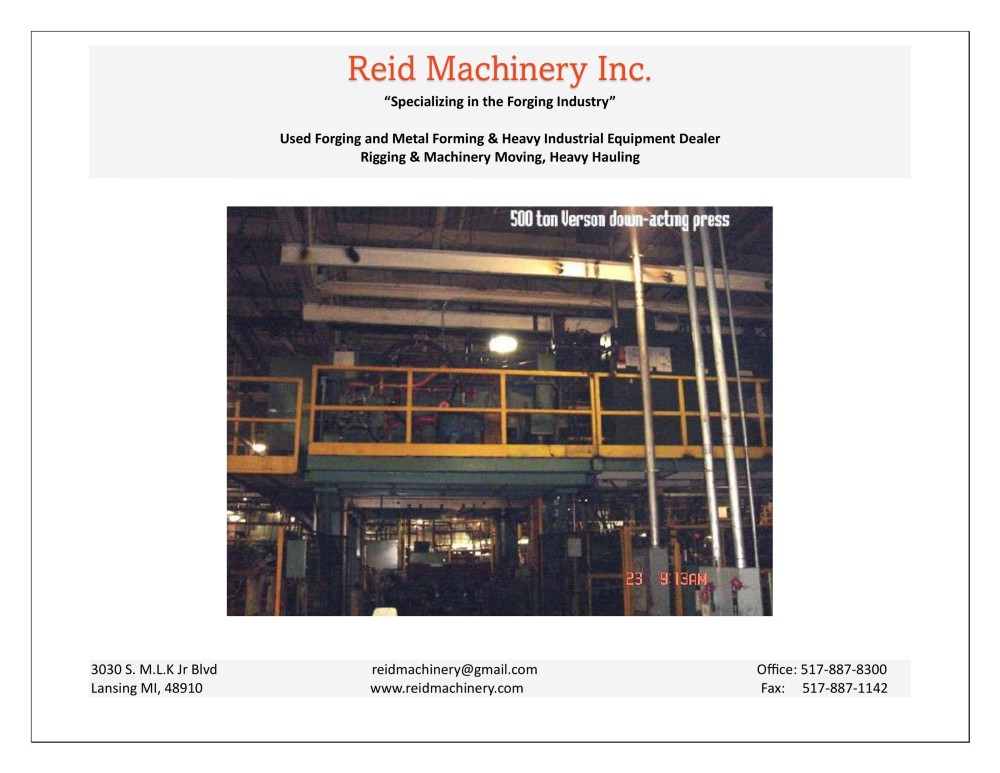

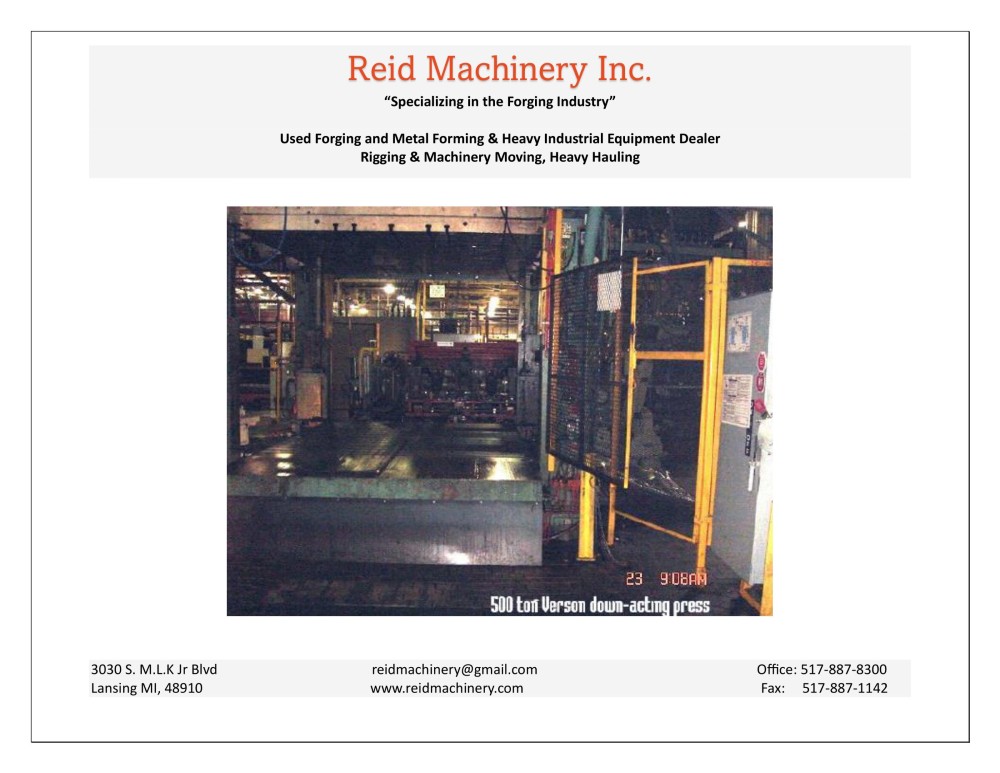

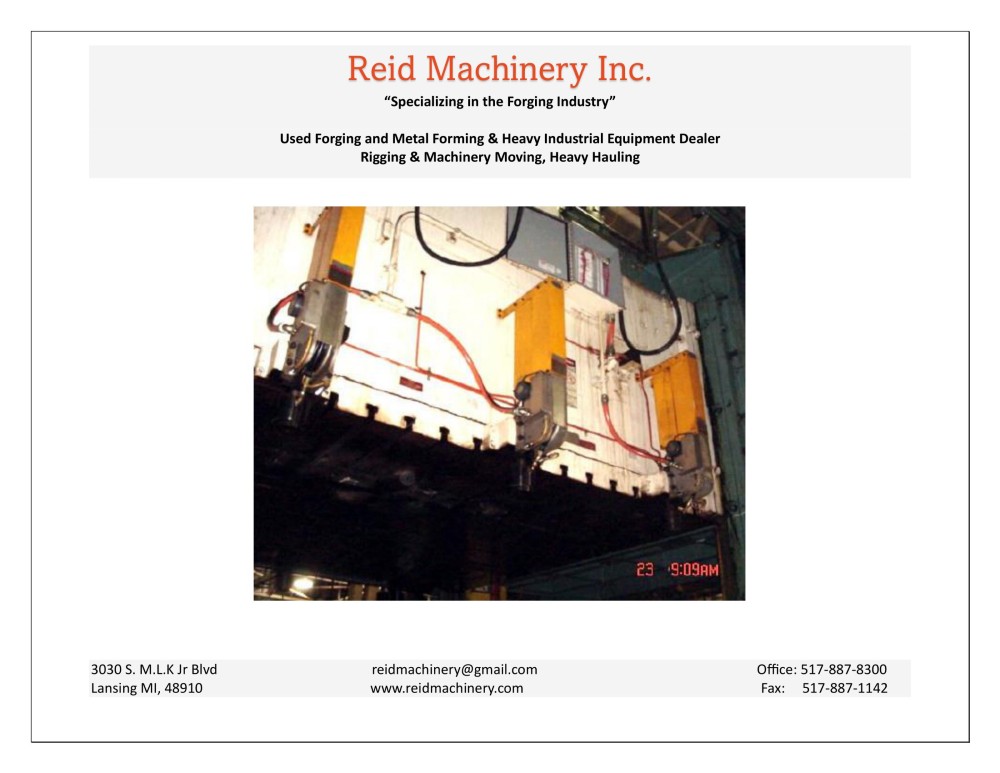

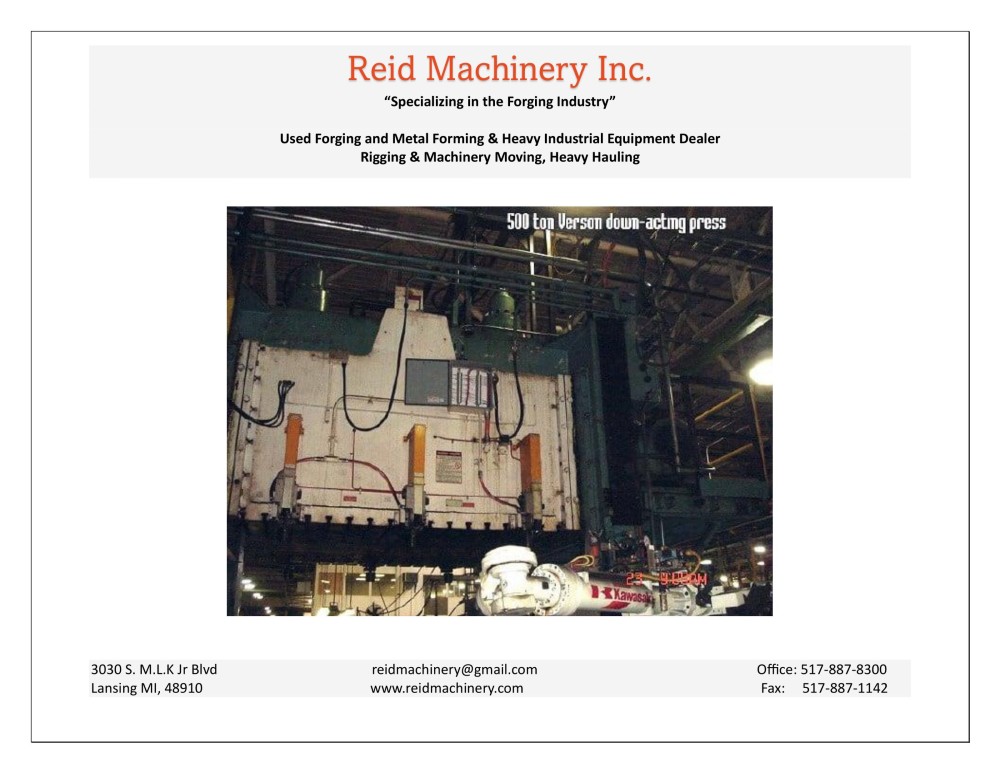

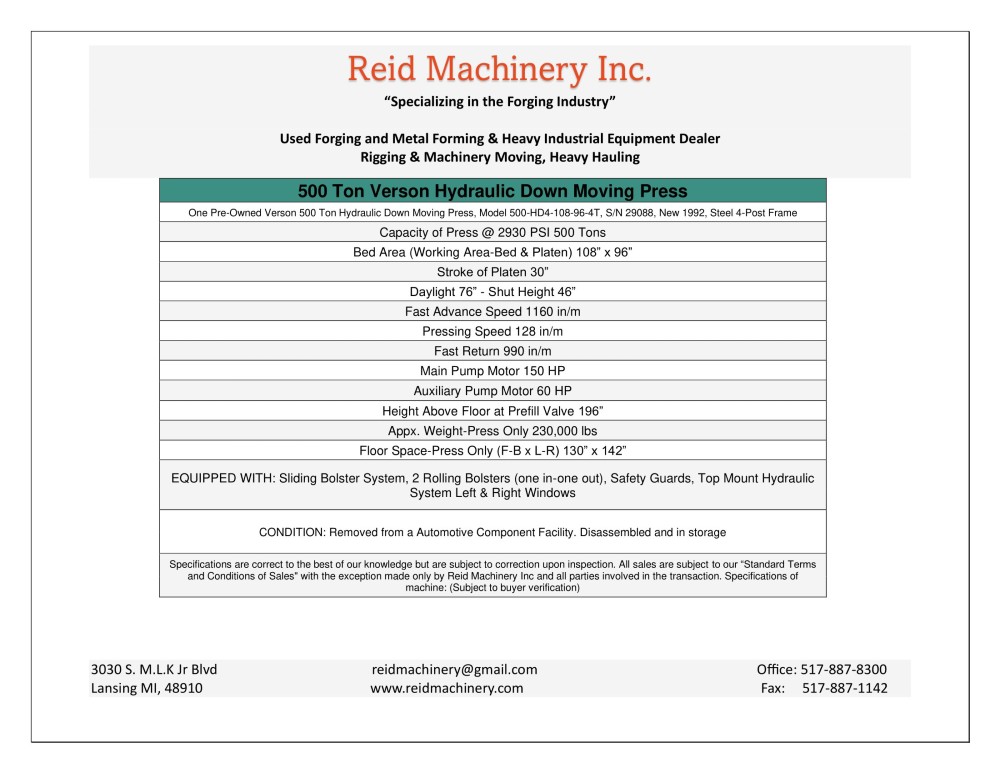

500 Ton Verson Hydraulic Down Moving Press
One Pre-Owned Verson 500 Ton Hydraulic Down Moving Press, Model 500-HD4-108-96-4T, S/N 29088, New 1992,Steel 4-Post Frame.
Capacity of Press @ 2930 PSI 500 Tons |
Bed Area (Working Area-Bed & Platen) 108” x 96” |
Stroke of Platen 30” |
Daylight 76” - Shut Height 46” |
Fast Advance Speed 1160 in/m |
Fast Return 990 in/m |
Main Pump Motor 150 HP |
Auxiliary Pump Motor 60 HP |
Height Above Floor at Prefill Valve 196” |
Appx. Weight-Press Only 230,000 lbs |
Floor Space-Press Only (F-B x L-R) 130” x 142” |
EQUIPPED WITH: Sliding Bolster System, 2 Rolling Bolsters (one in-one out), Safety Guards, Top Mount Hydraulic System Left & Right Windows.
Additional Rolling Bolsters are available if needed.
CONDITION: Removed from an Automotive Component Facility. Disassembled and in storage.
Get Your Price from Reid Machinery Inc!
