For Sale by Alma Machinery Co-Ann Arbor MI
Surplus Record Dealer Since 1960
Location: Ann Arbor, MI
Contact Jim Walters
Phone Number: 734...> Show Phone Number 734-971-8860
Let the seller know you found their listing on Surplus Record!

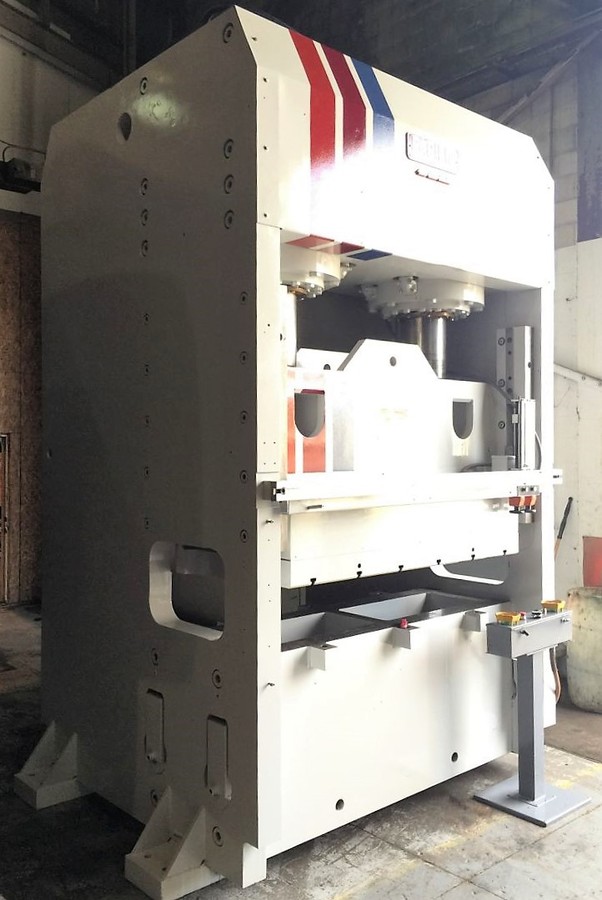

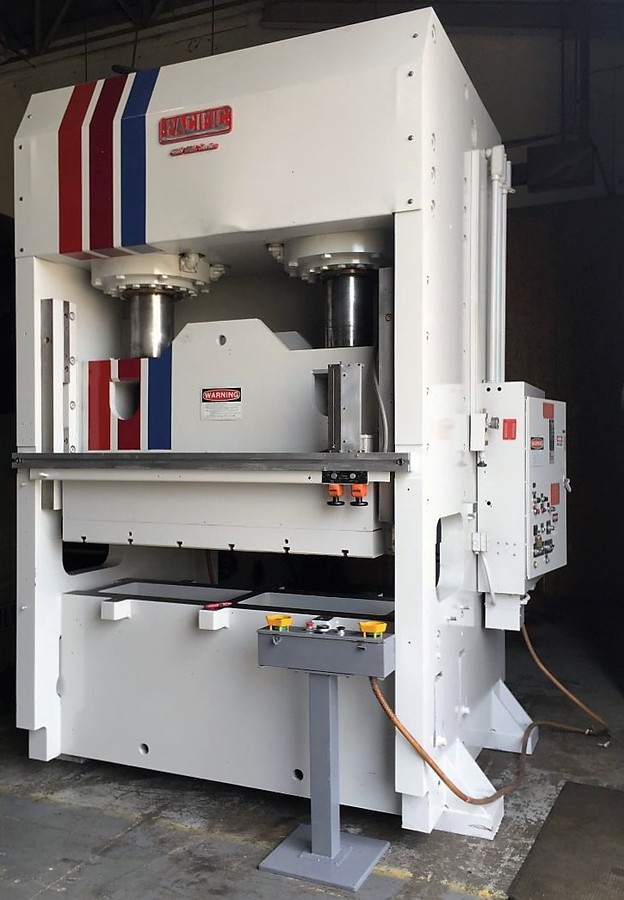

Description
CAPACITY 500 TON
PUNCHING CAPACITY 400 TON
MAXIMUM STROKE 12"
DAYLIGHT TO BED 8" TO 20"
BED AREA 78" X 36" (RL X FB)
BOLSTER PLATE 78" X 36" (RL X FB) X 5" Thick
RAM AREA 78" X 36" (RL X FB)
RAM SPEEDS (INCHES PER MINUTE) RAPID ADVANCE 372 | PRESSING 128 | SLOW PRESSING 35 | RETURN 197
WINDOW SIZE 24" X 16" SIDE WINDOWS
CYLINDER SIZE APPROX 8" - 226.98 IN2
FLOOR TO BED 41.5"

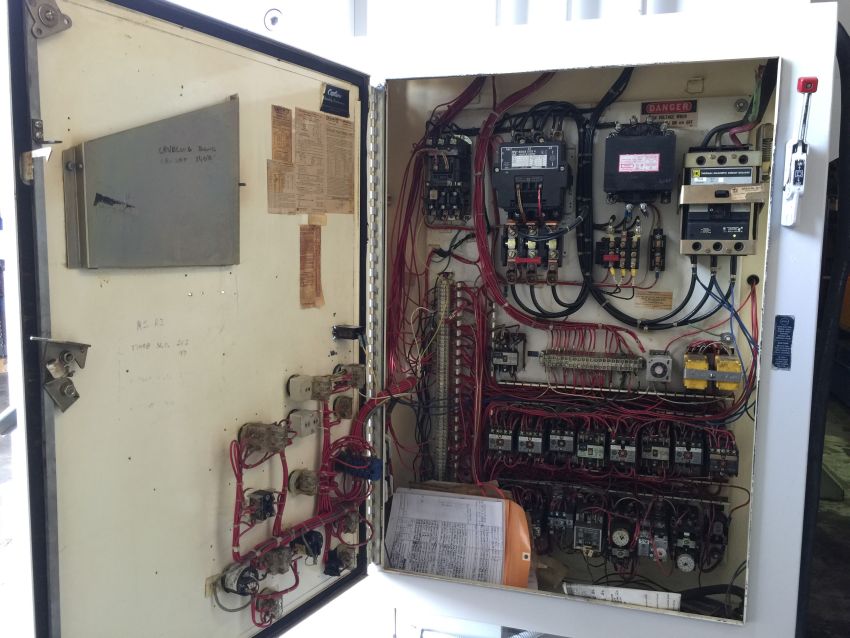

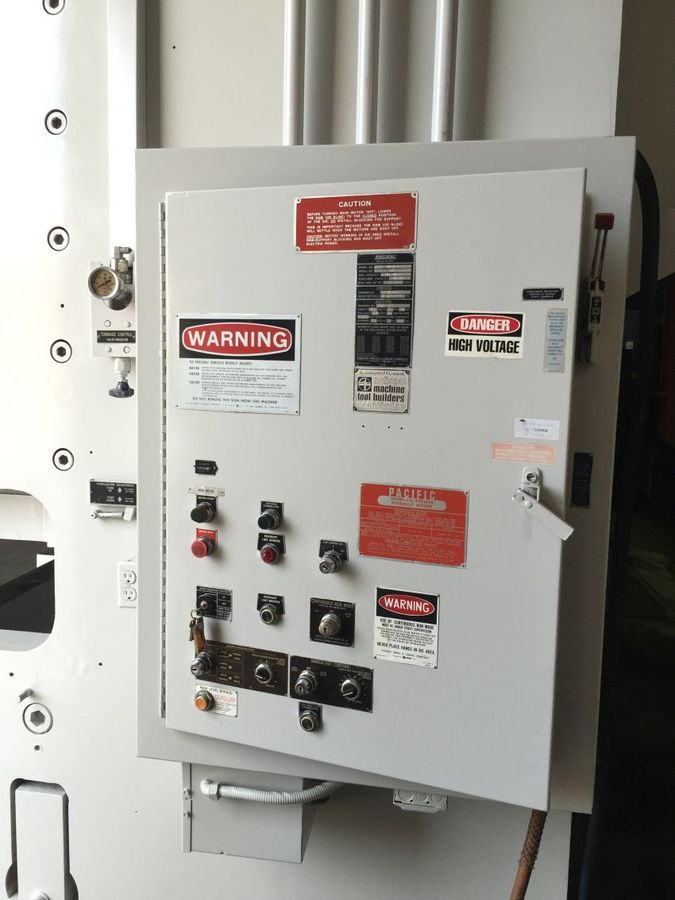

PRESS CONTROLS WINTRiSS CONTROLS
HYDRAULICS VICKERS PUMP 4535V60A25
ELECTRICAL 60HP 460V-3-60 MOTOR 1800 RPM 60 HZ
APPROX. DIMENSIONS 9'1" X 8'2" (RL X FB) X 12'1" HIGH
APPROX WEIGHT 71,000 LBS.

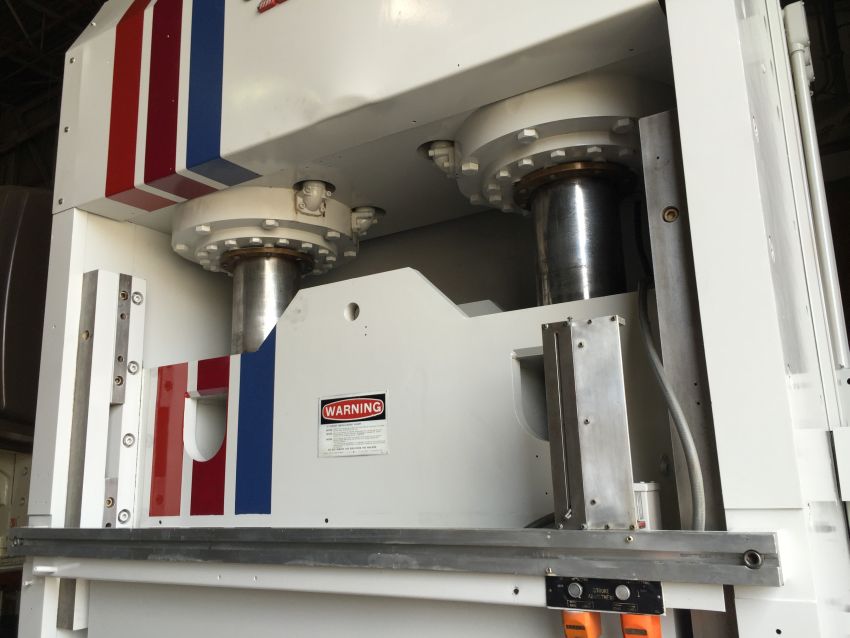

DUAL RAM
STEEL FRAME DESIGN
FLOOR STANDING
3" BORE 2" STROKE KNOCKOUT CYLINDER
__
PUNCHING CAPACITY 400 TON
MAXIMUM STROKE 12"
DAYLIGHT TO BED 8" TO 20"
BED AREA 78" X 36" (RL X FB)
BOLSTER PLATE 78" X 36" (RL X FB) X 5" Thick
RAM AREA 78" X 36" (RL X FB)
RAM SPEEDS (INCHES PER MINUTE) RAPID ADVANCE 372 | PRESSING 128 | SLOW PRESSING 35 | RETURN 197
WINDOW SIZE 24" X 16" SIDE WINDOWS
CYLINDER SIZE APPROX 8" - 226.98 IN2
FLOOR TO BED 41.5"
PRESS CONTROLS WINTRiSS CONTROLS
HYDRAULICS VICKERS PUMP 4535V60A25
ELECTRICAL 60HP 460V-3-60 MOTOR 1800 RPM 60 HZ
APPROX. DIMENSIONS 9'1" X 8'2" (RL X FB) X 12'1" HIGH
APPROX WEIGHT 71,000 LBS.
DUAL RAM
STEEL FRAME DESIGN
FLOOR STANDING
3" BORE 2" STROKE KNOCKOUT CYLINDER
__
Get Your Price from Alma Machinery Co-Ann Arbor MI!
Buyers Who Viewed This Listing Also Viewed:
500 Ton, Bolling, up-acting slab-side press, 12" stroke, 17.25" & 33.5" daylight, 20" x17", #2364
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Bolling
CLEARANCE L TO R BETWEEN THE SIDES IS APPROX 31" (28.5" BETWEEN THE GIB GUIDES). 16" DIAMETER RAM WITH APPROX 12" OF STROKE AND RATED AT 5000 PSI (300 TONS AT 3000 PSI). SLAB SIDES ARE MILLED AND DRILLED FOR TWO DIFFERENT DAYLIGHT OPENINGS: APPROX 17.25" AND 33.5". SIDES ARE APPROX 4.75" THICK WITH 3.5" SLOTS. TWO ...more
JUST ADDED!

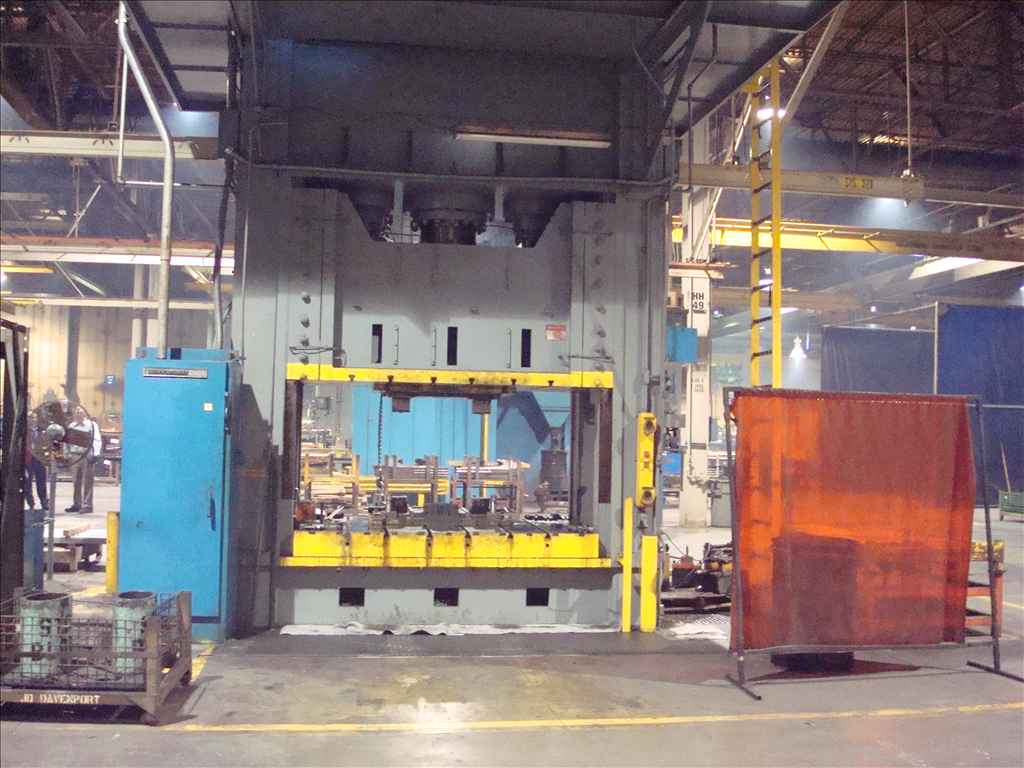

500 Ton, Williams & White #SH-500-96-54, hydraulic straight side press, 38" stroke, 48" daylight, 96" x 54" bed, 24" x 40" windows, cushion, 1975
