500 Ton, Carrier #23XRV5556NRAA50-S, Water-Cooled Chiller, R-134a, oil-free, R05 compressor, 2012

Overview

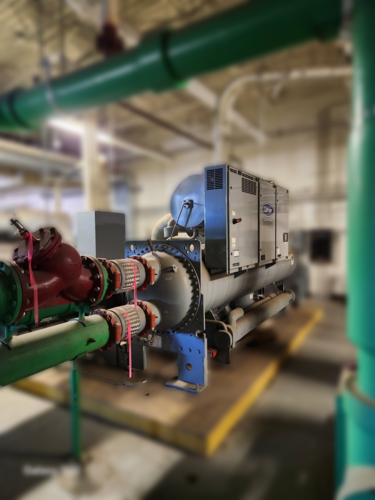

Available now is a Carrier 23XRV Series Water-Cooled Centrifugal Chiller, model 23XRV5556NRAA50-S, with high-efficiency, oil-free magnetic bearing technology. Manufactured in 2012, this chiller is an excellent fit for commercial HVAC systems requiring reliable, large-capacity cooling.

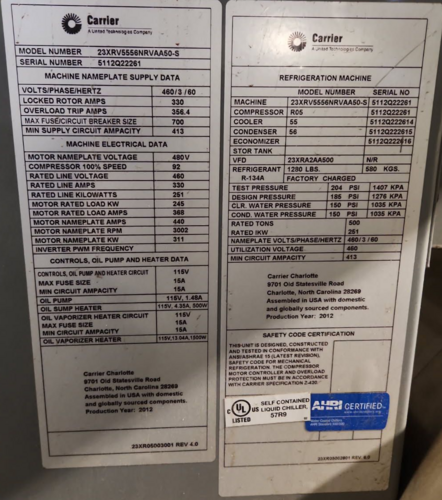

Technical Specifications
- Model: 23XRV5556NRAA50-S
- Serial Number: 5112022261
- Capacity: 500 Tons
- Refrigerant: R-134a (Factory Charge: 1280 lbs / 580 kg)
- Voltage: 460V / 3 Phase / 60 Hz
- Production Year: 2012
Electrical Details
- Locked Rotor Amps: 330 A
- Overload Trip Amps: 356.4 A
- Max Fuse/Circuit Breaker Size: 700 A
- Min Circuit Ampacity: 413 A
- Motor Rated Load Amps: 265 A
- Compressor 100% Speed: 480V
- Rated Input Power: 350 kW
Refrigeration Data
- Cooler Test Pressure: 204 PSIG
- Condenser Test Pressure: 186 PSIG
- Design Pressures:
- Cooler: 186 PSIG (1276 kPa)
- Condenser: 150 PSIG (1035 kPa)
- VFD Model: 23XRA2A500
- Compressor Type: R05
- AHRI Certified
- UL Listed: 57799
Heater & Pump Circuit Details
- Controls, Oil Pump & Heater Circuit: 115V
- Oil Pump: 115V, 1.48A
- Oil Sump Heater: 115V, 4.35A, 500W
- Oil Vaporizer Heater: 115V, 10.34A, 1500W
Features & Benefits
- Oil-Free Magnetic Bearing Compressor – reduced maintenance and high energy efficiency
- VFD-Driven – allows dynamic load control and energy savings
- Factory-Charged & Fully Packaged – quick installation
- Built in the USA – Carrier Charlotte facility
Applications
- Central chilled water plants
- Large commercial buildings
- Hospitals and data centers
- Industrial process cooling
Location: Ohio
