Description

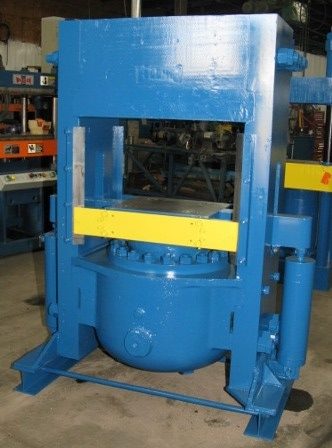

CLEARANCE L TO R BETWEEN THE SIDES IS APPROX 31" (28.5" BETWEEN THE GIB GUIDES). 16" DIAMETER RAM WITH APPROX 10" OF STROKE AND RATED AT 5000 PSI (300 TONS AT 3000 PSI). MAX DAYLIGHT OF APPROX 17". SLAB-SIDES ARE 4.75" THICK WITH A 3.5" SLOT. TWO T.J. 3.25" BORE DOUBLE-ACTING SIDE CYLINDERS WITH APPROX 10" STROKE. OPERATOR HEIGHT IS APPROX 36.5" (NOTE: 5" TALL I-BEAMS UNDER PRESS "FEET" COULD BE REMOVED TO LOWER THE OPERATOR HEIGHT AND OVERALL HEIGHT ACCORDINGLY). PORT IS APPROX 2.5". *BASED ON INFORMATION GLEANED FROM ORIGINAL OWNER, WE BELIEVE THE PRESS IS RATED TO 5000 PSI; AT 3000 PSI THE PRESS WOULD GENERATE 300 TONS. OVERALL DIMENSIONS APPROX: 58" X 40" X 72" TALL. APPROX 18,000 POUNDS. ITEM #2359.
Get Your Price from Icon Industries, Inc!
