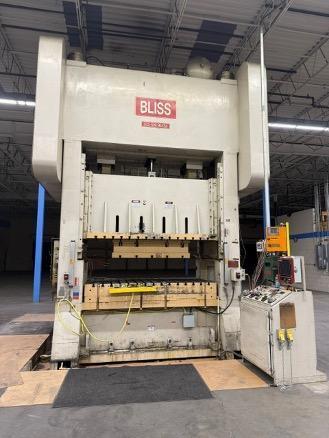

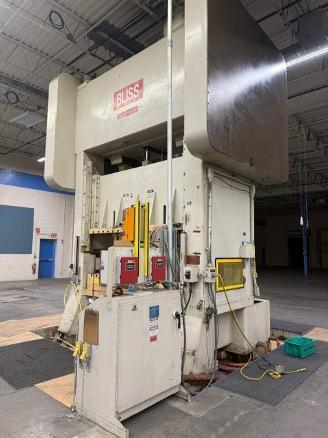

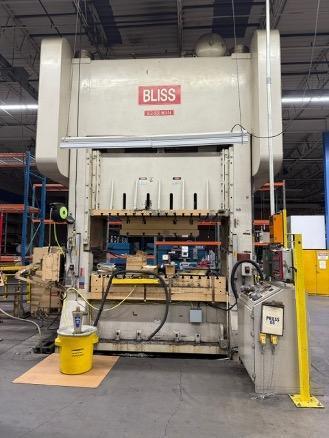

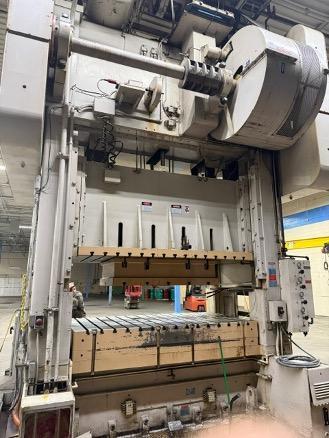

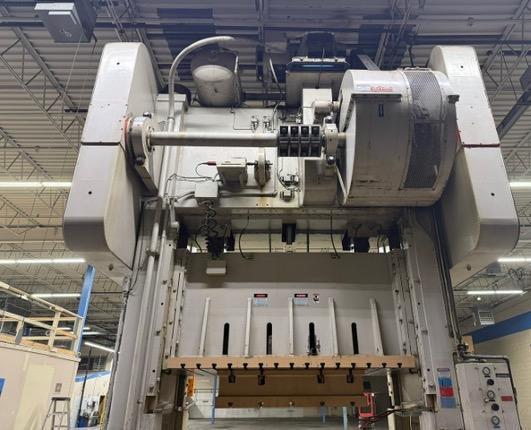

500 Ton, Bliss #SE2-500-96-54, straight side double crank press, 12" stroke, 44" Shut Height, 12" ram adj., 20-40 SPM, air clutch & brake, Wintriss Smart Pac Pro, 1989

Preliminary specifications
________________________

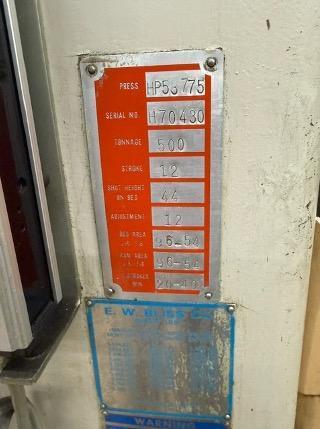

Model SE2-500-96 x 54 Straight side double crank Twin Gear Drive
500 Tons Capacity
12" Stroke
44". Shut Height (SDAU) to Bed
Net Die space stroke down adjustment up 32" to 20" slide to top of bolster plate(8") t slot plate
20-40 SPM vari strokes per min
12" motorized ram adjustment
36" wide window x 20" high @ 7.25" above bolster plate
Equipment @ Features
______________________
air clutch & Brake

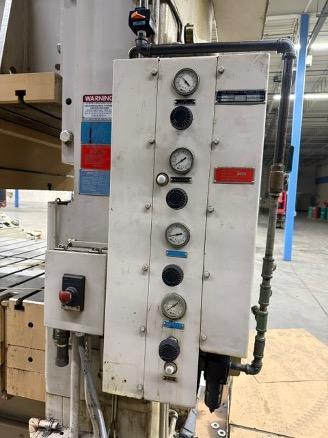

air counterbalances
hydraulic tie rod nuts
8" t-slotted bolster plate
T-slotted Ram
Bliss model UCC-24-22-6 DIe Cushions (2)
Independent pin pads, each 30" front to back x 36" left to right
cushion pattern drilled through bolster 6 holes to land on each pad
Cushion maximum stroke 6"
Tonnage for Each cushion is 40 tons@100 psi
cushions are easily serviceable and accessible through top of bolster once removed
console control panel
Auto Lube
Motor & Controls
_________________
75 HP Main Motor 208/230/3/60
Eddy current variable speed drive
Wintriss Smart Pac pro for ancillary equipment Added 2025
Toledo tonnage monitor
Weldotron light curtains
Press Dimensions
_________________
243" overall height of press with out mounts X 132.5" LR 102" FB

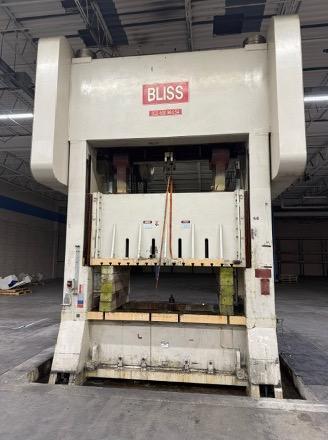

Press was sitting in a 10" recessed Pit with tie rod well holds ( drawings available
This press is professional maintained and dismantled and recently stored in a climate control warehouse in Mnpl MN. Delivery and or rigging and re-assembly can be quoted your warehouse by the same service company that dismantled the press. We can offer this great machine turn key on your floor. please don't hesitate to call for your showing.
