Year: 1987
Ton: 500.0
Stroke: 50.0
Daylight: 72.0
Stock # 18
1 / 4
Click to zoom in
1 / 4
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

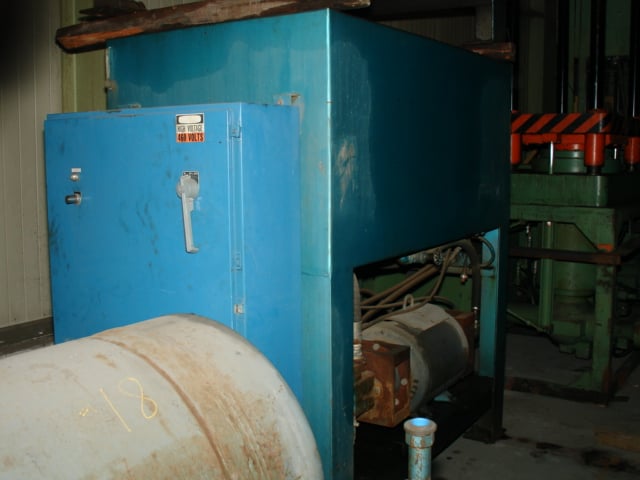

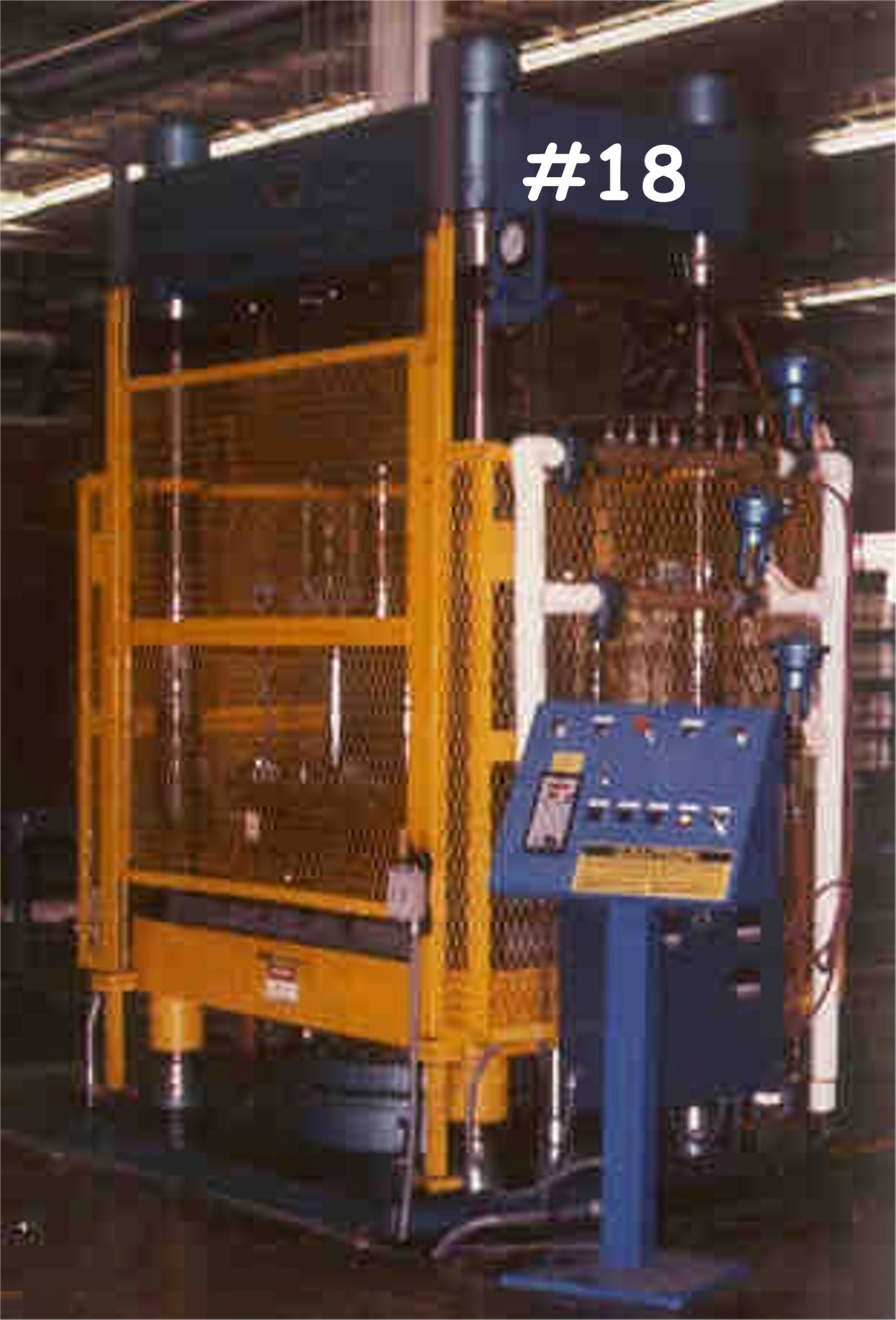

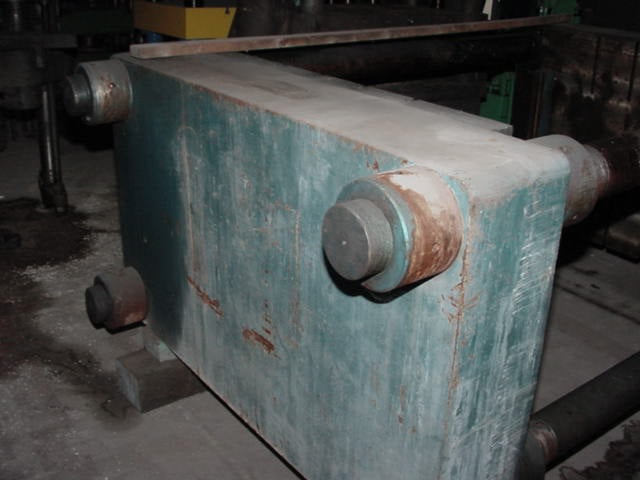

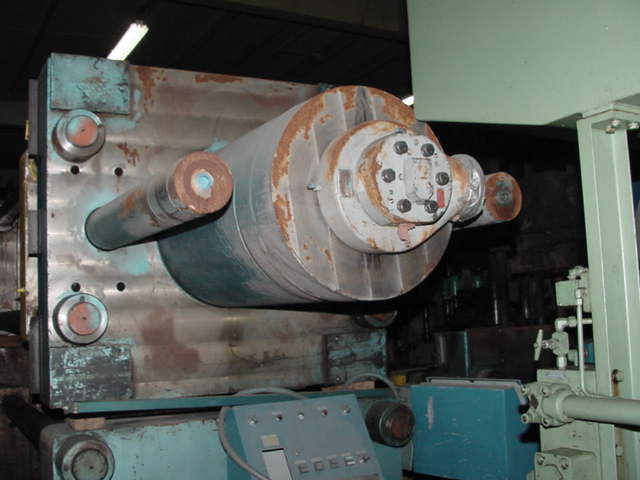

(53" L TO R BETWEEN TIERODS; 26" F TO B BETWEEN TIERODS). NEW IN 1987. 24" MAIN RAM. 72" DAYLIGHT WITH 50" STROKE. 3 \u00bd" T-SLOTTED PLATES ON SLIDE AND CROWN (WHICH RESULTS IN 65" DAYLIGHT). 6" DIA. TIERODS. 50 HP, 1200 RPM, 230/460 VOLTS. 2250 PSI. 60 GPM TO 500 PSI; 8 GPM TO 2250 PSI. TWO 5" DIAMETER FAST CLOSE CYLINDERS. SPEEDS: FAST CLOSE = 360 IPM; FAST OPEN = 360 IPM; PRESSING = 4 IPM; BREAK-AWAY = 0-360 IPM (UP TO 40 TONS). PRESS IS APPROX. 20' TALL. ORIGINALLY SET UP WITH 14' ABOVE FLOOR AND 6' BELOW. 9' 2 \u00bd" TALL STEEL BASE AVAILABLE TO SUPPORT PRESS (BASE FOOTPRINT IS 68" X 62" AND COULD BE REDUCED TO APPROX. 6' IN HEIGHT). OVERALL DIMENSIONS OF POWER UNIT ARE 87" X 42" X 6' TALL. HYDRAULIC DRAWING. C. (ITEM #18C)
Get Your Price from Icon Industries, Inc!
