500 KVA 12470GY/7200 Primary, 480/277 Secondary, Giga Energy, Padmount Transformer, 3PH, 2024

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004

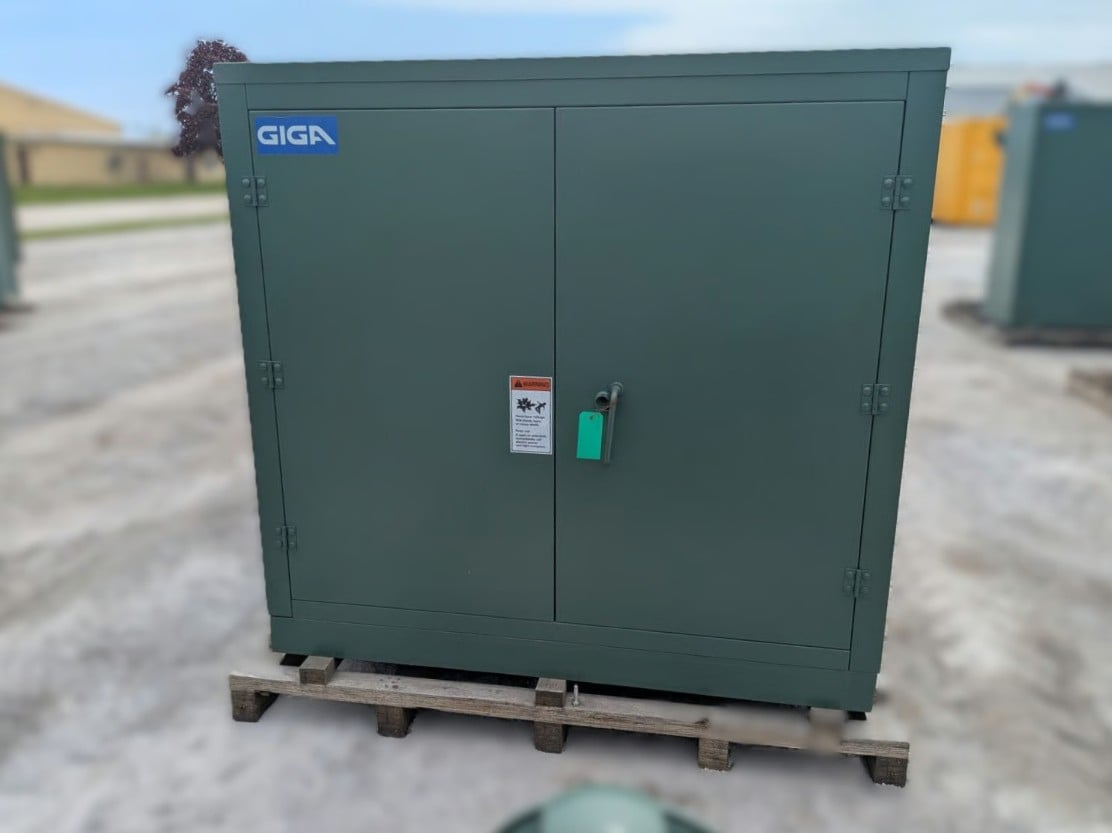

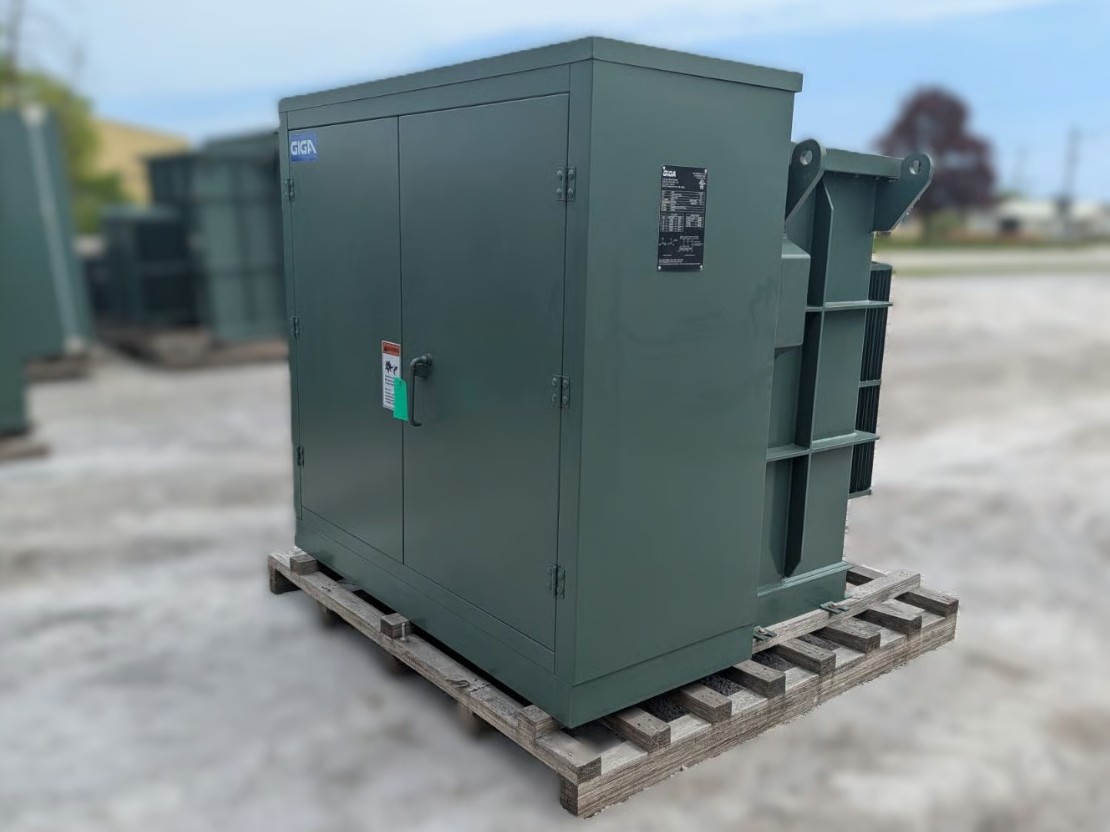

*500 KVA Pad Mount Three-Phase Transformer HV:12470GY/7200 LV 480Y/277

CONDITION: NEW SURPLUS

Manufacturer: Giga Energy
YEAR: 2024
Serial#:Varies by Transformer
TYPE: Three-Phase Pad Mount Transformer
KVA: 500
Enclosure: Pad Mount Outdoor Rated
Phase: 3
Hertz: 60
Primary Voltage: 12470Y/7200
Secondary Voltage: 480Y/277
Impedance: 5.51%
Degree Temp Rise: 65 Degree C Rise
Winding Material: Copper

Actual Transformer Dimensions:
Width: 69.5"
Length/Depth: 67"
Height: 66"
WEIGHT: 6835 lbs.

Shipping Dimensions & Weight:
Width: 77"
Length: 71"
Height: 73.5"
WEIGHT: 7135 lbs.

500 KVA, 3PH, 12470GY/7200 - 277/480V

-RATED CAPACITY: 3 PHASE

-HIGH VOLTAGE: 12470 GY/ 7200

-LOW VOLTAGE: 480 Y/ 277

-BIL: HV 95KV; LV 30KV

-HV TAPS: 2 ABOVE, 2 BELOW @ 2.5% EACH

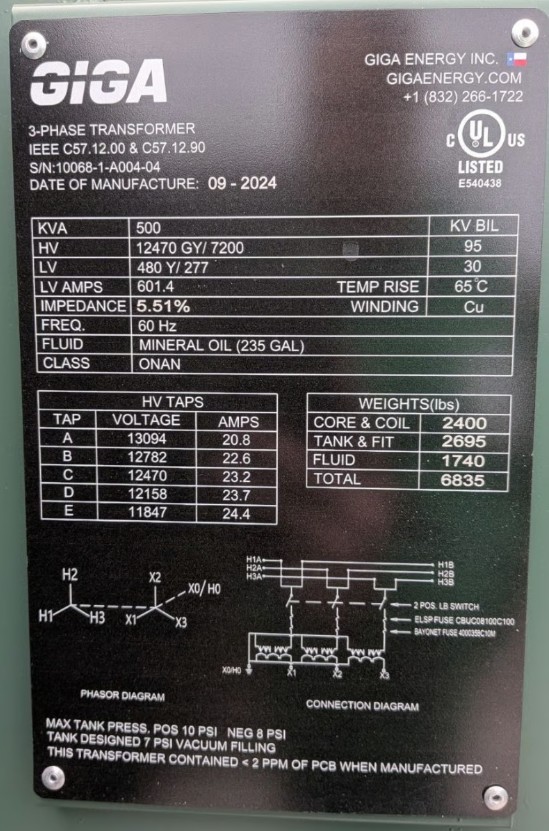

TAP VOLTAGE AMPS

A 13094 20.8

B 12782 22.6

C 12470 23.2

D 12158 23.7

E 11847 24.4

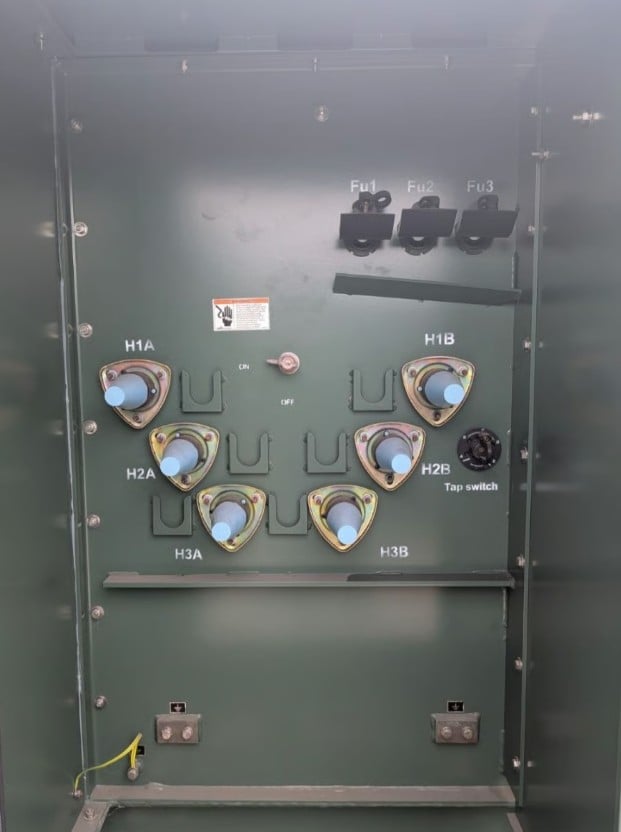

-HV BUSHINGS: (6) 200 A 15 KV LOADBREAK

-DEAD FRONT LOOP FEED

-LV BUSHINGS: (4) 8

-HOLE WITH SUPPORTS

-FLUID: MINERAL OIL

-COOLING CLASS: ONAN

-FREQUENCY: 60 HZ

-TEMPERATURE RISE: 65C

-WINDING MATERIAL: COPPER

-TANK MATERIAL: MILD STEEL

-FUSING: BAYONET W/ CLFS

-SWITCH: (1) 2

-POS. LBOR

-LIQUID LEVEL GAUGE

-PRESSURE VACUUM GAUGE

-DIAL TYPE THERMOMETER

-DRAIN AND SAMPLE VALVE

-cUL LISTED

-IEEE C57.12.00 & C57.12.90

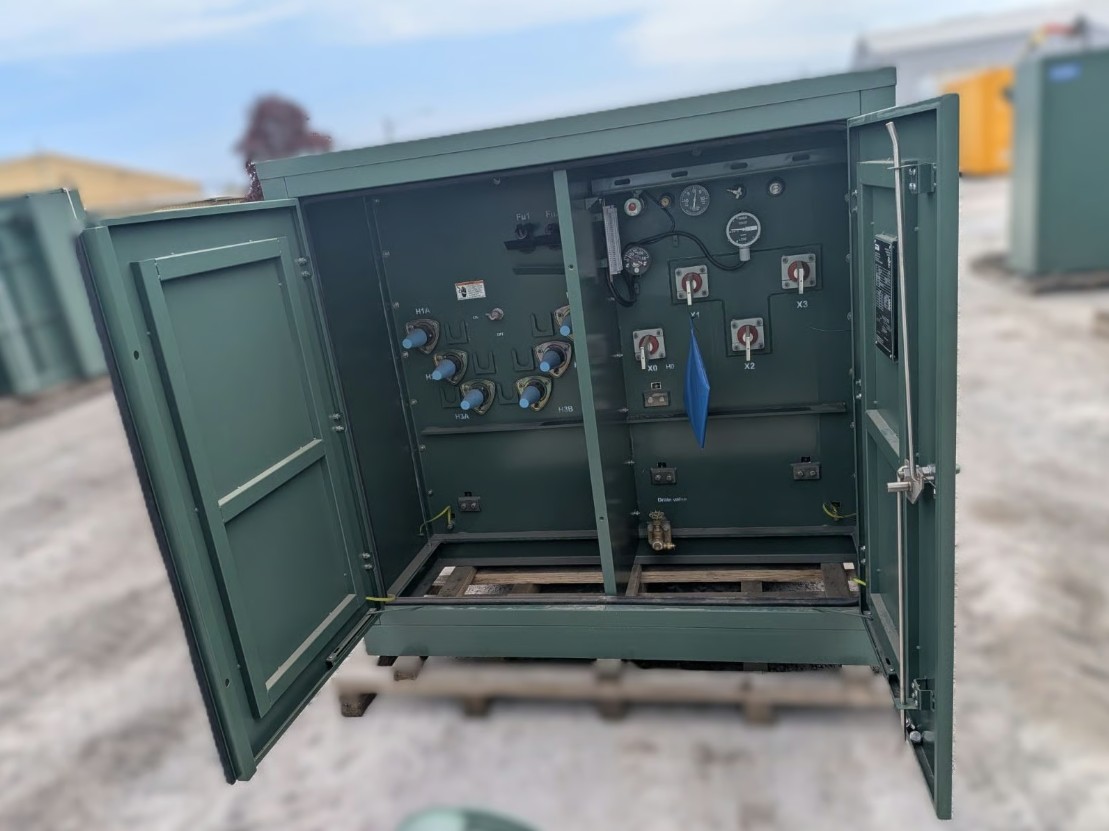

-LIFTING LUGS POSITIONED FOR AND CAPABLE OF LIFTING ENTIRE PAD MOUNT UNIT

-PROVISIONS FOR GROUNDING ON THE TRANSFORMER TANK IN BOTH THE PRIMARY AND SECONDARY COMPARTMENTS SHALL BE COPPER.

-OIL FILL PLUG

-TOP FILTER PRESS CONNECTION

-COMBINATION ONE-INCH OIL DRAIN VALVE, LOWER FILTER PRESS CONNECTION, SAMPLING DEVICE LOCATED IN THE PRIMARY COMPARTMENT

-OIL LEVEL PLUG

GIBUYS #: GV0004
