For Sale by VX Machinery
Surplus Record Dealer Since 1995
Location: Sylvania, OH
Contact Victor Van Deilen
Phone Number: 734...> Show Phone Number 734-854-8700
Let the seller know you found their listing on Surplus Record!
Description
Specifications

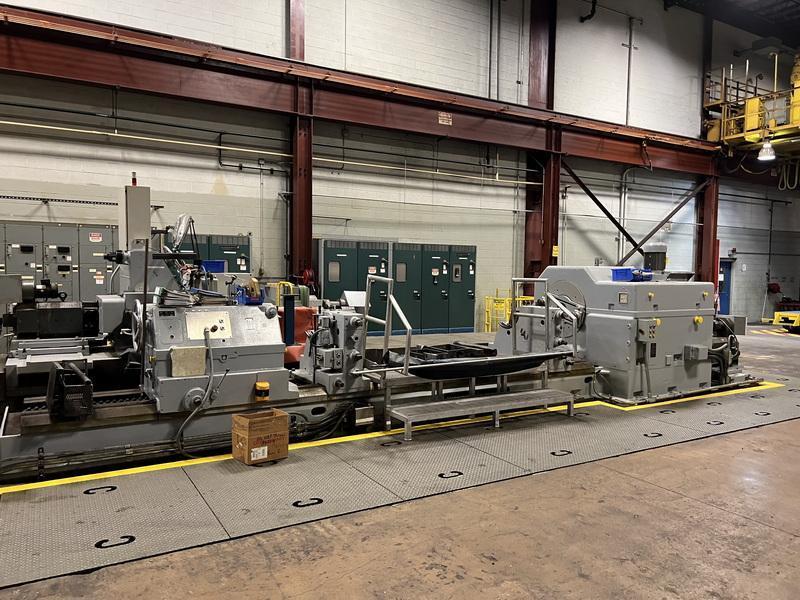

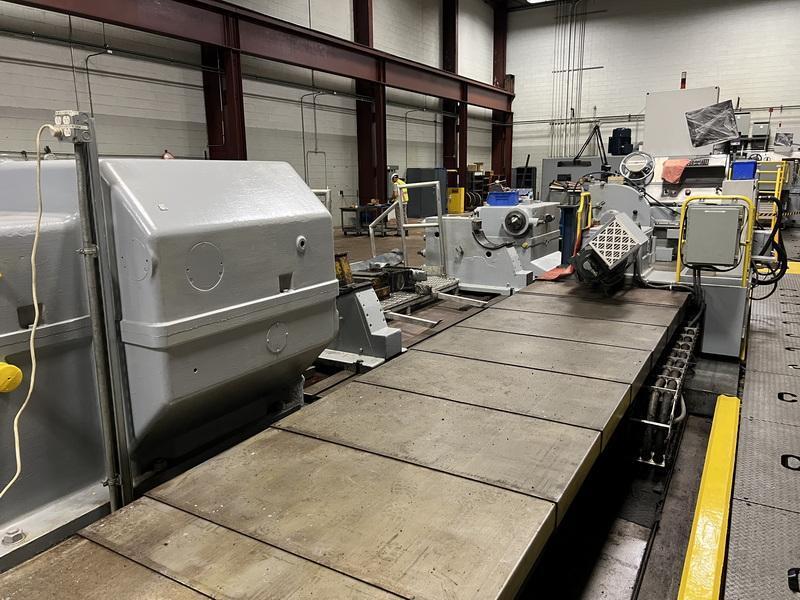

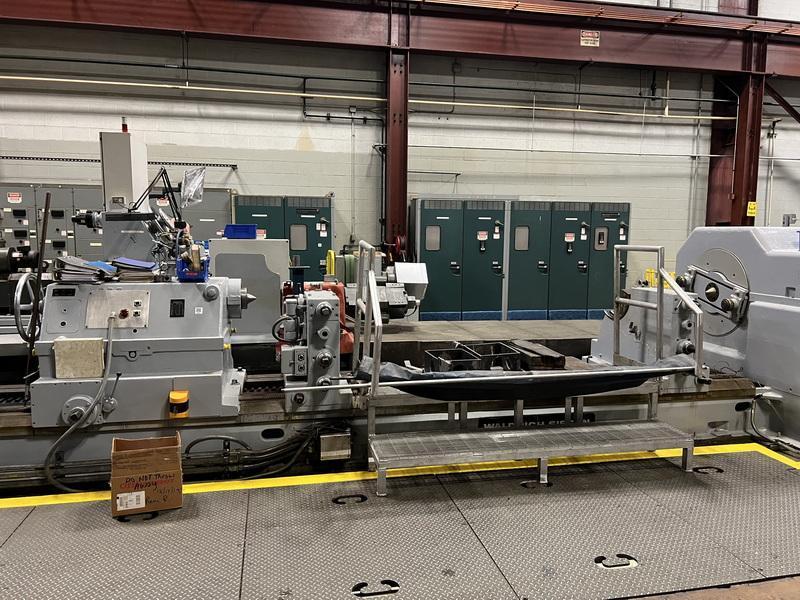

-Waldrich Siegen Roll Grinder
-Model: V/S II b 35 x 5000
-Crowning and Cambering Capabilities

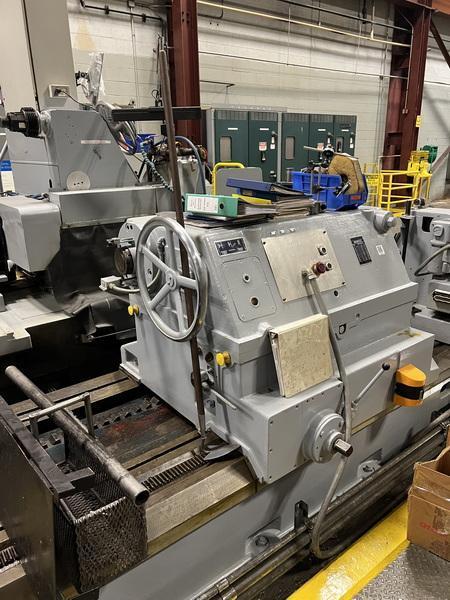

-Stationary Rotating Roll with Travelling Grinding Carriage
-2 Steadies
-Servo Drives: Headstock & Grinding Wheel
-Max Roll Diameter: 1260mm (50")
-Min Roll Diameter: 140mm (5.5")
-Distance Between Centers: 5000mm (16')
-Max Grinding Wheel Diameter: 800mm
-Max Roll Weight: 35 Tons (70,000 Lbs)
-Face Plate RPM: 7 - 70 RPM
-Grinding Carriage Feed: 60 - 4000 mm/min
-Cross Slide Traverse Infeed: 560mm
-Rapid Traverse Cross Slide: 400mm/min
-Fine In-Feed Hand Wheel: .0125mm/1 Umdr
-Coarse In-Feed Hand Wheel: .25mm/1 Umdr
-End Feed by Motor: .01 - .1 mm/Hub
Grinding Wheel:
-Max Diameter: 800mm (31.5")
-Width: 80mm (3.15")
-Hole: 305mm (12")
-Headstock: 60 HP : 240/960/2400 RPM
-Grinding Wheel: 40 HP : 720/1800 RPM
-Carriage Drive: 5 HP : 24/1600 RPM
-Rapid Traverse Cross Slide
-Grinding Spindle Lubrication
-Bedway Lubrication
-Quill Rapid Traverse - Tailstock
-2008 Electrical Upgrade

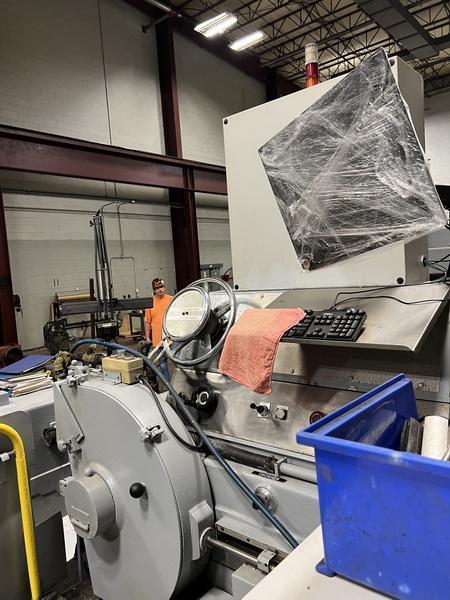

-Computer Controlled
-Allen Bradley Powerflex Digital Drives
-Allen Bradley 1606-XL Power Supply
-N-Tron 508 XT Ethernet Card
-Allen Bradley Panelview Plus 1250 Digital Readouts
-Allen Bradley PLC CompactLogix L32E
-Waldrich Siegen Roll Grinder
-Model: V/S II b 35 x 5000
-Crowning and Cambering Capabilities
-Stationary Rotating Roll with Travelling Grinding Carriage
-2 Steadies
-Servo Drives: Headstock & Grinding Wheel
-Max Roll Diameter: 1260mm (50")
-Min Roll Diameter: 140mm (5.5")
-Distance Between Centers: 5000mm (16')
-Max Grinding Wheel Diameter: 800mm
-Max Roll Weight: 35 Tons (70,000 Lbs)
-Face Plate RPM: 7 - 70 RPM
-Grinding Carriage Feed: 60 - 4000 mm/min
-Cross Slide Traverse Infeed: 560mm
-Rapid Traverse Cross Slide: 400mm/min
-Fine In-Feed Hand Wheel: .0125mm/1 Umdr
-Coarse In-Feed Hand Wheel: .25mm/1 Umdr
-End Feed by Motor: .01 - .1 mm/Hub
Grinding Wheel:
-Max Diameter: 800mm (31.5")
-Width: 80mm (3.15")
-Hole: 305mm (12")
-Headstock: 60 HP : 240/960/2400 RPM
-Grinding Wheel: 40 HP : 720/1800 RPM
-Carriage Drive: 5 HP : 24/1600 RPM
-Rapid Traverse Cross Slide
-Grinding Spindle Lubrication
-Bedway Lubrication
-Quill Rapid Traverse - Tailstock
-2008 Electrical Upgrade
-Computer Controlled
-Allen Bradley Powerflex Digital Drives
-Allen Bradley 1606-XL Power Supply
-N-Tron 508 XT Ethernet Card
-Allen Bradley Panelview Plus 1250 Digital Readouts
-Allen Bradley PLC CompactLogix L32E
Get Your Price from VX Machinery!
