Description

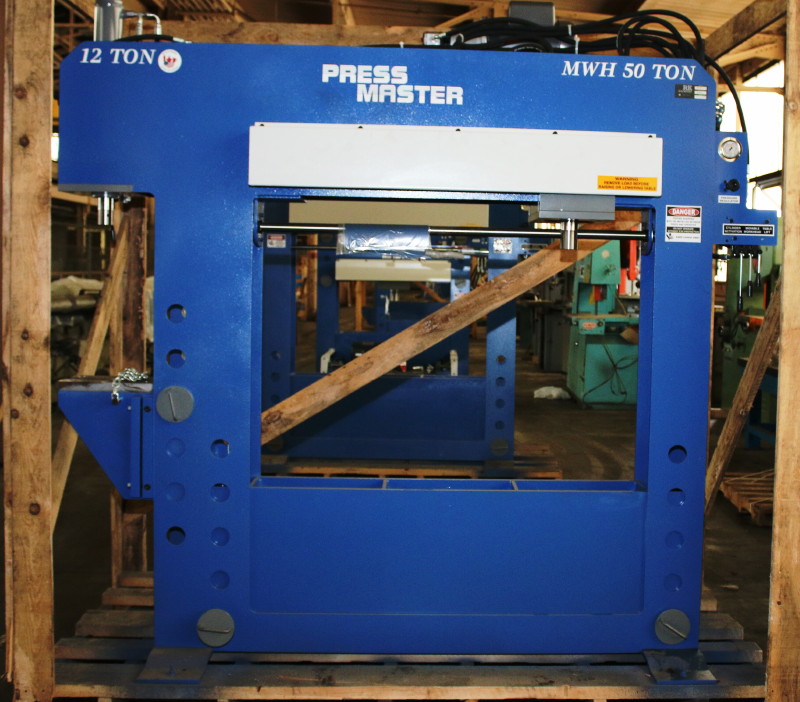

COMBINATION 50 TON H-FRAME PRESS
& 12 TON BROACHING PRESS
w/MOVABLE WORKHEAD
MODEL HFBP-50/12 MWH
NEW - IN STOCK FOR IMMEDIATE DELIVERY
H-FRAME SPECS:
RATED CAPACITY ............................... 50 TONS
STROKE ....................................... 12"
BORE ......................................... 6"
RAM SPEED: ADVANCE ........................... 20 IPM
RETURN ............................ 24 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 48"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 10"
MAXIMUM DISTANCE FROM BED TO RAM .............″4"
OVERALL HEIGHT ............................... 102"
OVERALL WIDTH ................................ 102"
OVERALL DEPTH ................................ 54"
WEIGHT ....................................... 2,800#

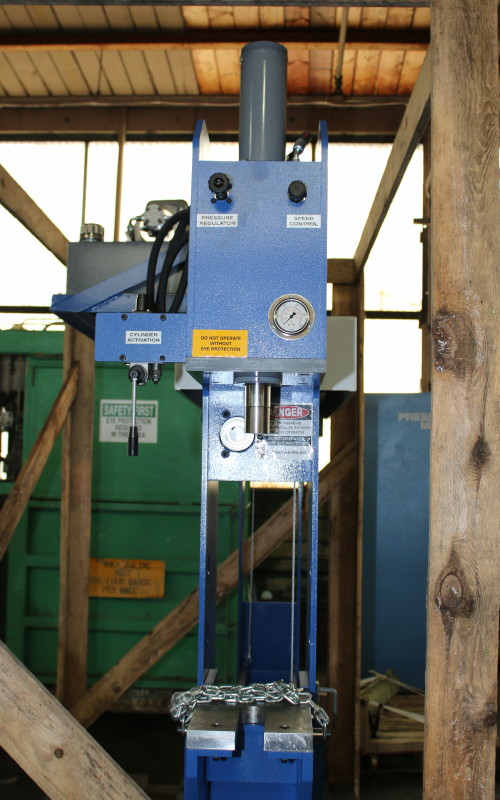

BROACHING C-FRAME SPECS:
CAPACITY ..................................... 12 TONS
STROKE ....................................... 20"
BORE .........................................″"
RAM SPEED: ADVANCE ........................... 80 IPM
RETURN ............................ 144 IPM
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US… CANADIAN COMPONENTS
STANDARD FEATURES:

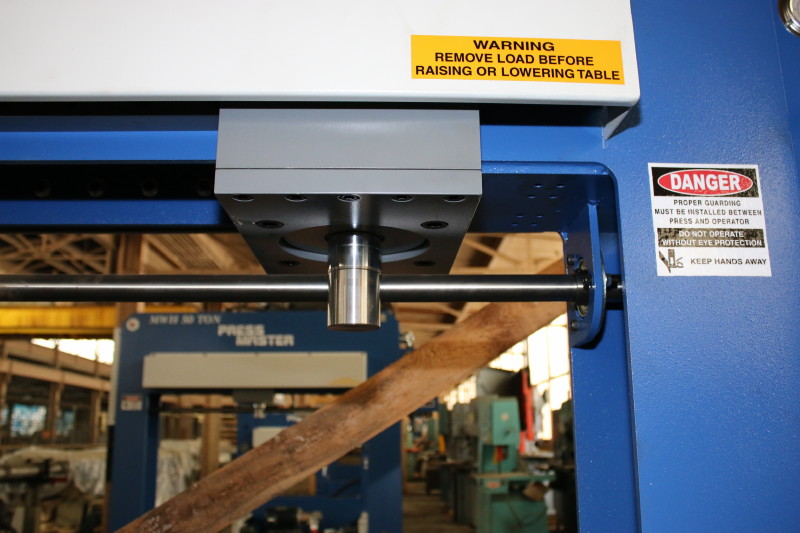

- POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK, ALLOWS
OPERATOR TO POSITION RAM FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
- PRESSURE REGULATOR
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB
- LOW SPEED PUMP
- SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT
- DOUBLE-ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

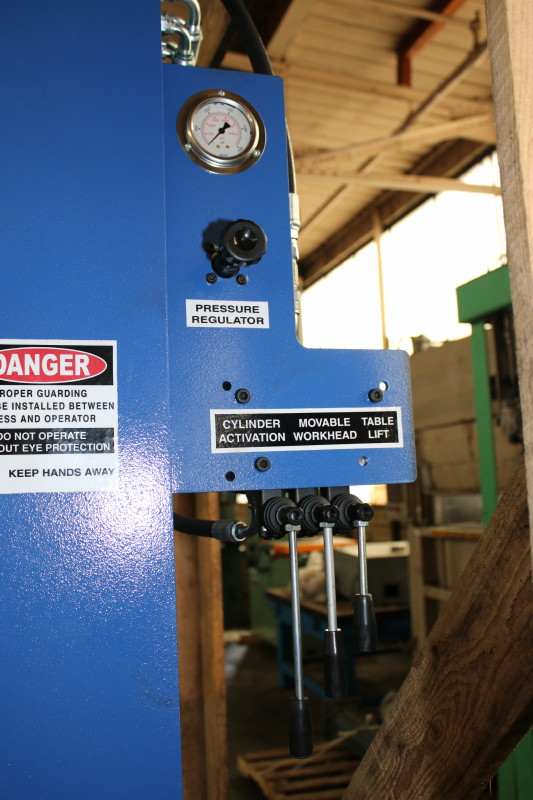

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK
- HIGH CAPACITY 10 GAL. HYDRAULIC OIL RESERVOIR
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- BALDOR 5 HP, 230 VOLT / 1 PHASE MOTOR
- STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING
- FULL ONE YEAR PARTS WARRANTY.

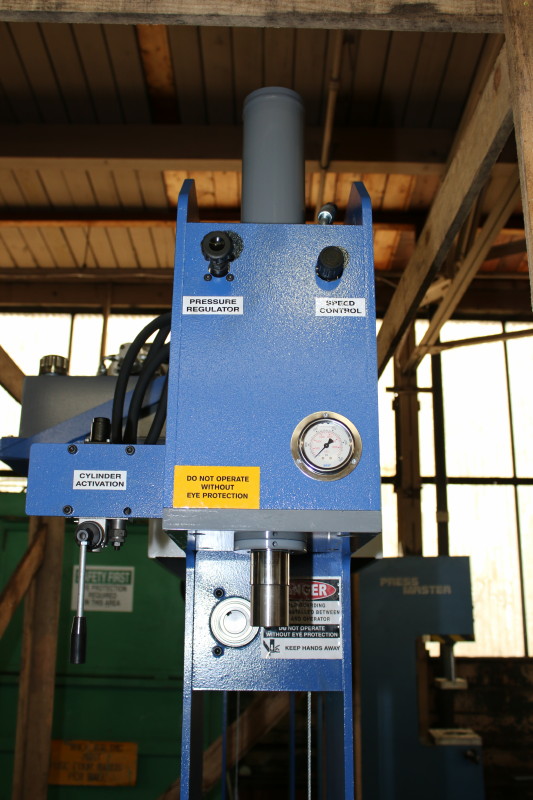

STANDARD FEATURES 12 TON C-FRAME:
- PRESSURE REGULATOR
- SPEED CONTROL
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $… 800
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $1,600
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
- 60" BETWEEN THE POSTS ...................... $3,500
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
