For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

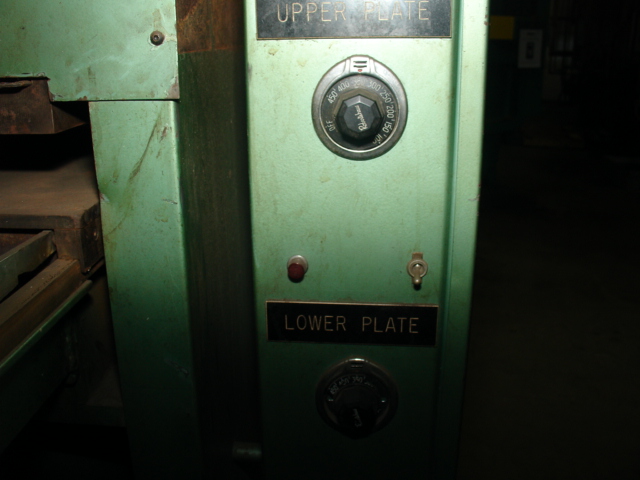

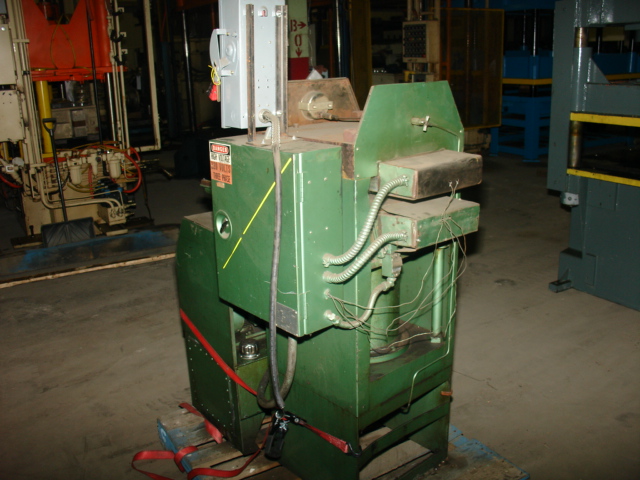

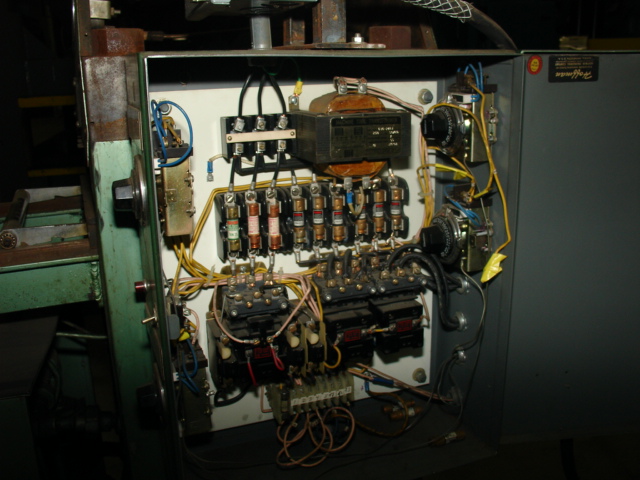

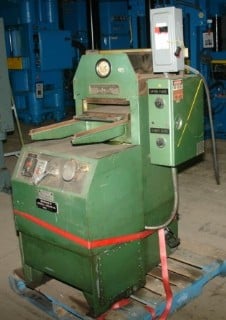

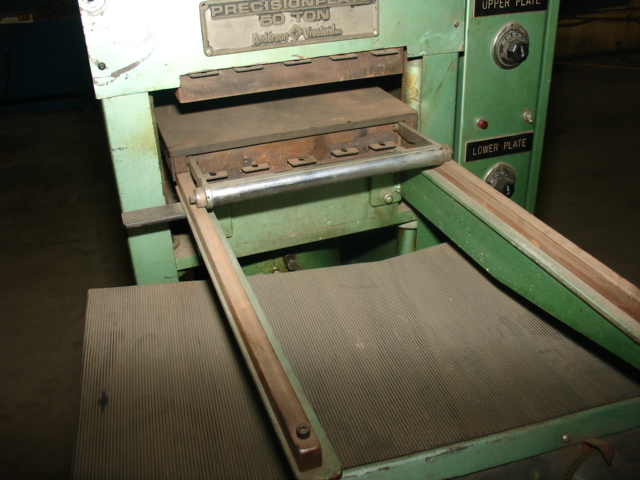

PRECISION-PLATE (SERIAL #1894) BY ANDERSON-VREELAND. 12" X 18" X 1.5" ELECTRIC PLATENS WITH STRIP HEATERS (5 PER PLATEN; 750 WATT). 8" BORE DOUBLE-ACTING CLAMP CYLINDER. APPROX 2" DAYLIGHT AND STROKE. GUIDED ON 1.5" DIAMETER POSTS WITH 2" BUSHINGS. APPROX 41.5" OPERATOR HEIGHT. 13.5" X 18.5" ROLL-OUT TABLE (MANUAL). HYDRAULIC UNIT: 10 GALLON RESERVOIR; 3 HP MOTOR (230/460 V; 1800 RPM); ETC… RELAY CONTROL SYSTEM: WIRED FOR 220V; START/STOP; TIMER (MECHANICAL); 25 FLA; ETC… PRESS DIMENSIONS APPROX 31" X 43" X 66" TALL; HYDRAULIC UNIT DIMENSIONS APPROX 26" X 24" X 36" TALL. APPROX 3,000 POUNDS. ITEM #2333.
Get Your Price from Icon Industries, Inc!
