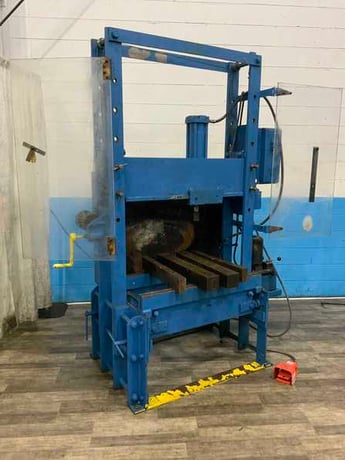

50 Ton, OTC #50T, hydraulic traveling bed H-frame press, 42" btwn uprights, 45" open height, 1.5 HP

SERIAL ................................ 13963

MODEL ................................. 50 T

CAPACITY .............................. 50 TONS

DISTANCE BETWEEN UPRIGHTS ............. 42"

AREA OF BED OF CLOSED ................. 5" X 45"

AREA OF BED OPEN ...................... 30" X 45"

BED ADJUSTMENT ........................ 0" TO 25"

DISTANCE BETWEEN SIDE FRAMES .......... 9-3/8"

RAM TRAVEL (STROKE) ................... 16"

BED ADJUSTMENT ........................ 7" CENTER

OPEN HEIGHT ........................... 45"

CLOSED HEIGHT ......................... 0"

CYLINDER DIAMETER ..................... 2"

HEAD TRAVEL LEFT OR RIGHT ............. 31"

BED TRAVEL IN & OUT ................... 28"

PHASE ................................. 3

VOLTAGE ............................... 220/440

MOTOR ................................. 1.5 HORSEPOWER
