$7,950 USD
Description
Description:

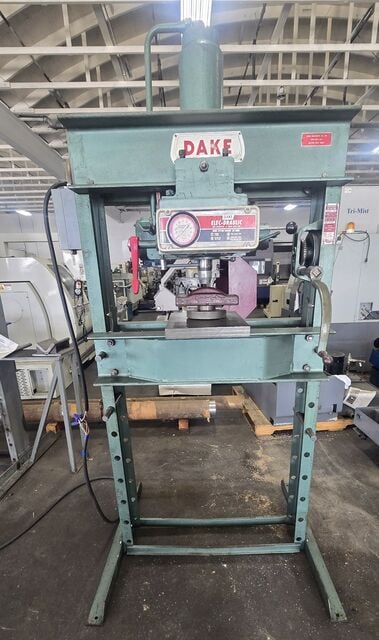

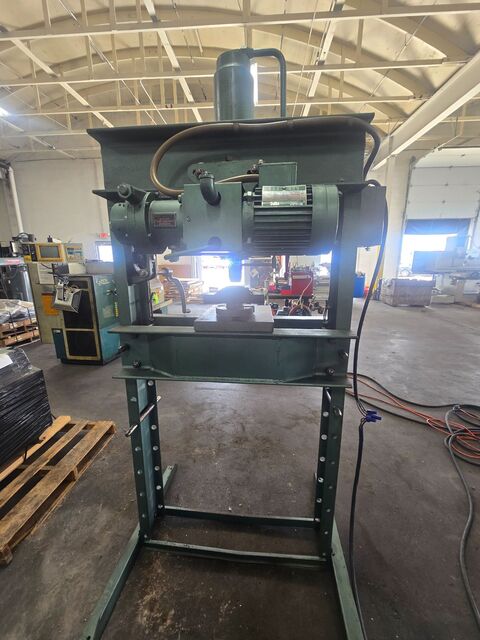

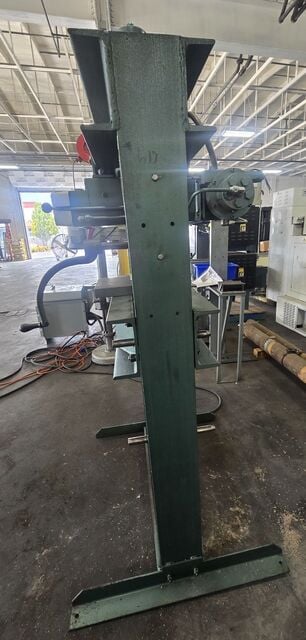

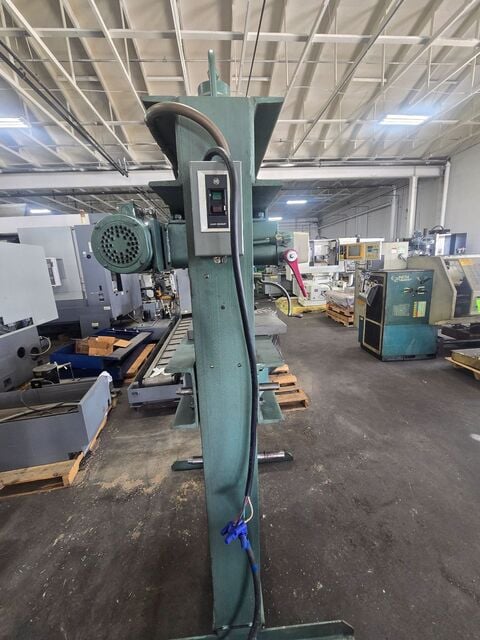

Used DAKE Elec-Draulic I 50-Ton hydraulic press, model 5-050 in good condition. Features 50-ton capacity, adjustable table, rapid ram return, safety valve, and more. Operates at 2 HP, 220V/440V. Ideal for precise pressure control in fabricating tasks.
Spec Sheet:
Dake 50 ton Elec-Draulic H Frame Press 5-050
This 50 ton single-acting electric-hydraulic press offers a 40 IPM ram advance speed,
7 IPM ram pressing speed and a 2 horsepower motor.
FEATURES:
Movable work-head is roller mounted on ball bearings for off-center work.
Safety valve protects against overloads.
Adjustable table permits easy vertical movement by means of self-locking hoist.
Single-acting cylinder provides fast, reliable pressing and internal spring return.
Variable ram speed allows fingertip control of ram movement for precise pressure control.
Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
Stroke indicator ensures accurate ram control.
STANDARD EQUIPMENT:
Frame
2 Forged Steel V-Blocks
Flat Ram Nose

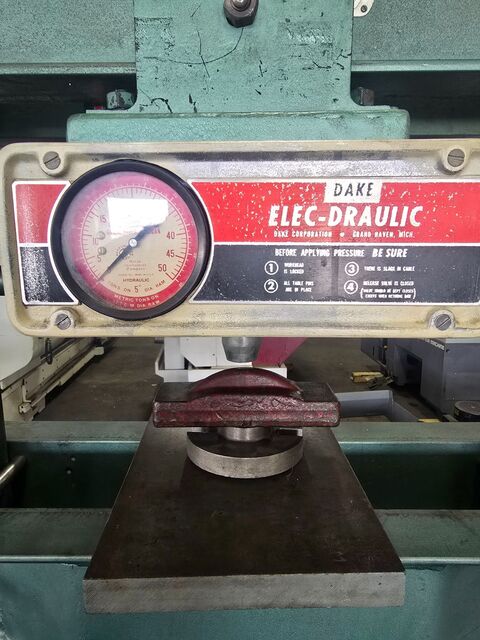

Pressure Gauge
Self-locking Table Hoist
Workhead
2 Steel Table Plates
V-ram Nose
Stroke Indicator
Safety Relief Valve
SPECIFICATIONS:

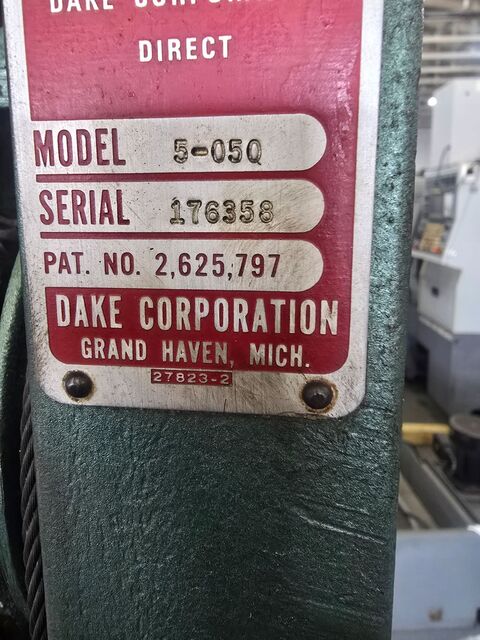

Part Number: 5-050
Capacity: 50 tons
Operation: Electric
Horsepower: 2

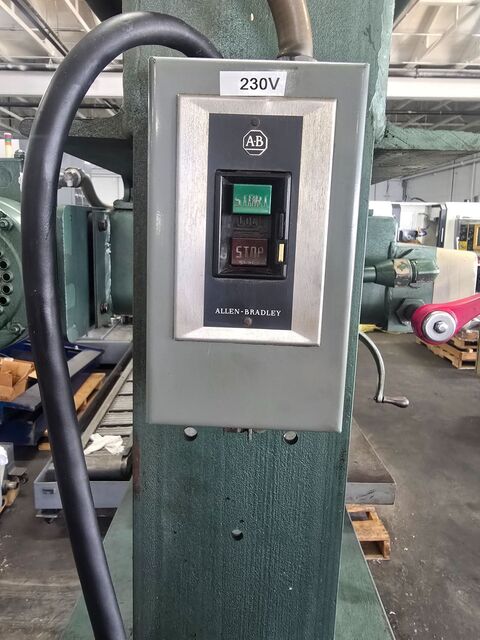

Voltage: 220V/440V, 3-Phase
Width between uprights: 32-3/4"
Width between table channels: 7-1/4"
Minimum ram to table: 5"
Maximum ram to table: 40"
Ram travel: 10"
Screw Travel: n/a
Horizontal workhead travel: 14-3/8"
Footprint: 43-1/2" x 36"
Height: 87"
Weight: 1,320 lbs
Base: 43-1/2" x 36"
Ram advance speed: 40 ipm
Pressing speed: 7 ipm
RPM: 1,800
Air Pressure: n/a
Used DAKE Elec-Draulic I 50-Ton hydraulic press, model 5-050 in good condition. Features 50-ton capacity, adjustable table, rapid ram return, safety valve, and more. Operates at 2 HP, 220V/440V. Ideal for precise pressure control in fabricating tasks.
Spec Sheet:
Dake 50 ton Elec-Draulic H Frame Press 5-050
This 50 ton single-acting electric-hydraulic press offers a 40 IPM ram advance speed,
7 IPM ram pressing speed and a 2 horsepower motor.
FEATURES:
Movable work-head is roller mounted on ball bearings for off-center work.
Safety valve protects against overloads.
Adjustable table permits easy vertical movement by means of self-locking hoist.
Single-acting cylinder provides fast, reliable pressing and internal spring return.
Variable ram speed allows fingertip control of ram movement for precise pressure control.
Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
Stroke indicator ensures accurate ram control.
STANDARD EQUIPMENT:
Frame
2 Forged Steel V-Blocks
Flat Ram Nose
Pressure Gauge
Self-locking Table Hoist
Workhead
2 Steel Table Plates
V-ram Nose
Stroke Indicator
Safety Relief Valve
SPECIFICATIONS:
Part Number: 5-050
Capacity: 50 tons
Operation: Electric
Horsepower: 2
Voltage: 220V/440V, 3-Phase
Width between uprights: 32-3/4"
Width between table channels: 7-1/4"
Minimum ram to table: 5"
Maximum ram to table: 40"
Ram travel: 10"
Screw Travel: n/a
Horizontal workhead travel: 14-3/8"
Footprint: 43-1/2" x 36"
Height: 87"
Weight: 1,320 lbs
Base: 43-1/2" x 36"
Ram advance speed: 40 ipm
Pressing speed: 7 ipm
RPM: 1,800
Air Pressure: n/a
