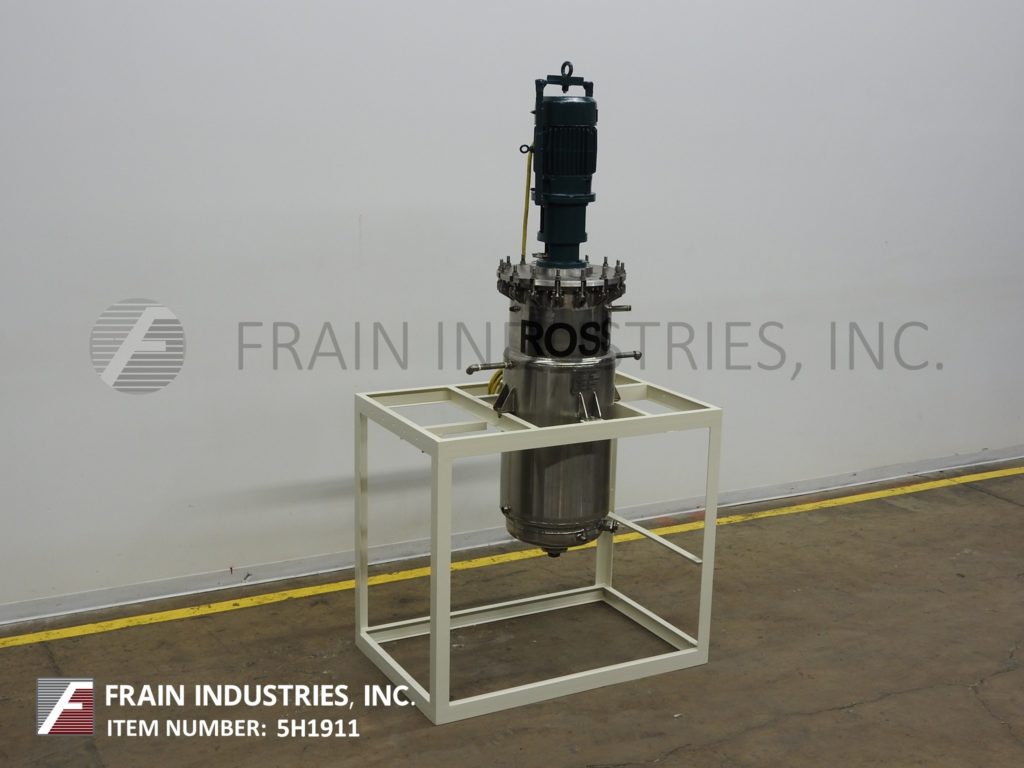

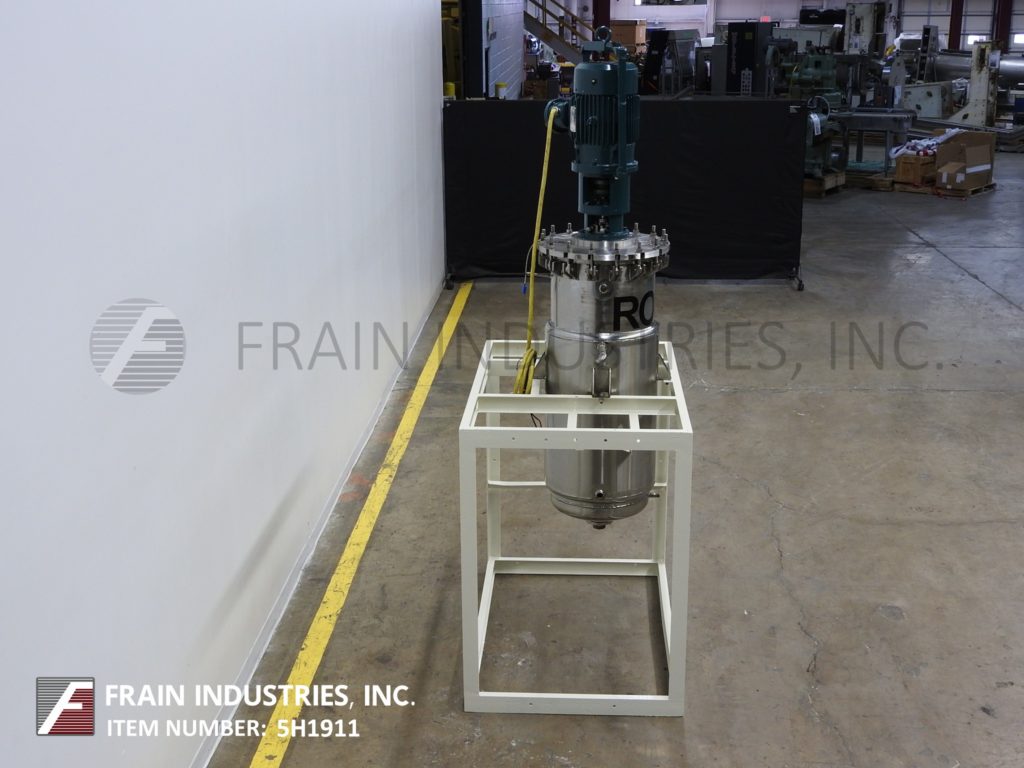

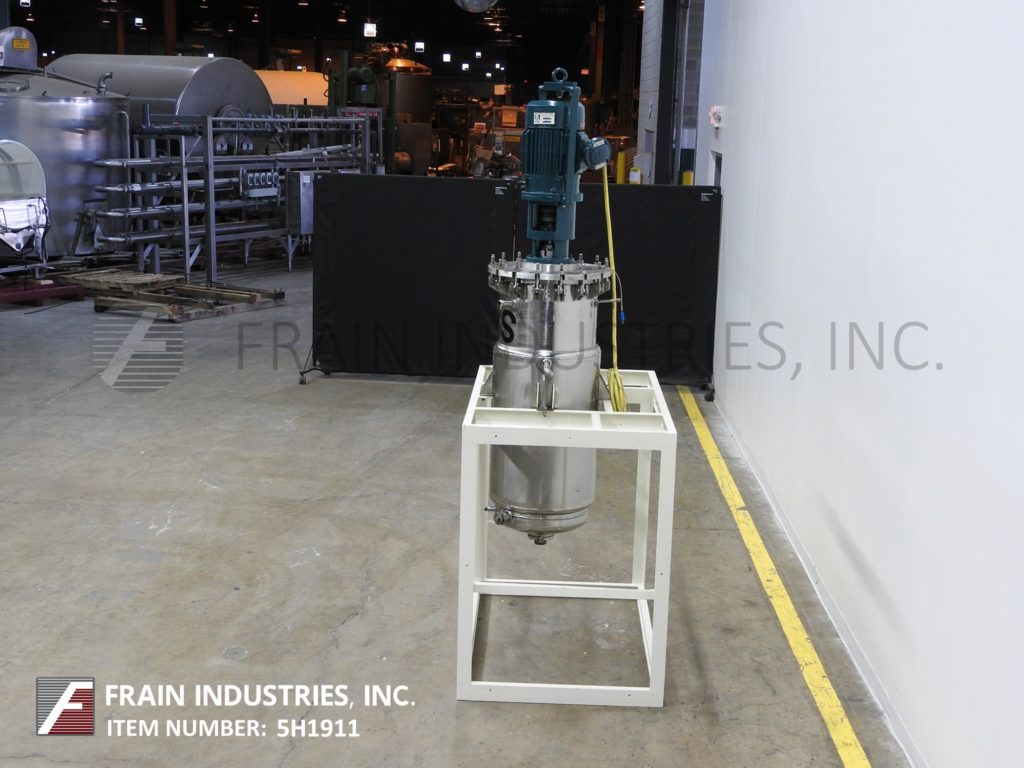

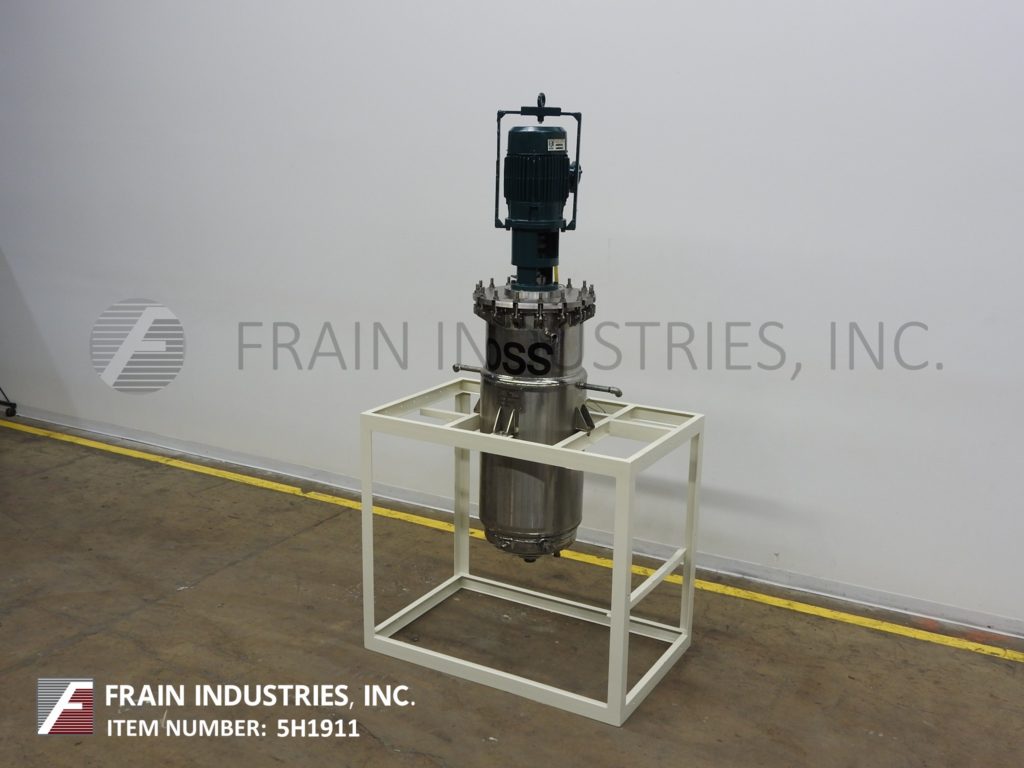

50 gallon Ross, 304 Stainless Steel jacketed process tank, 17-3/4" diameter x 48" straight wall, 40/50 psi

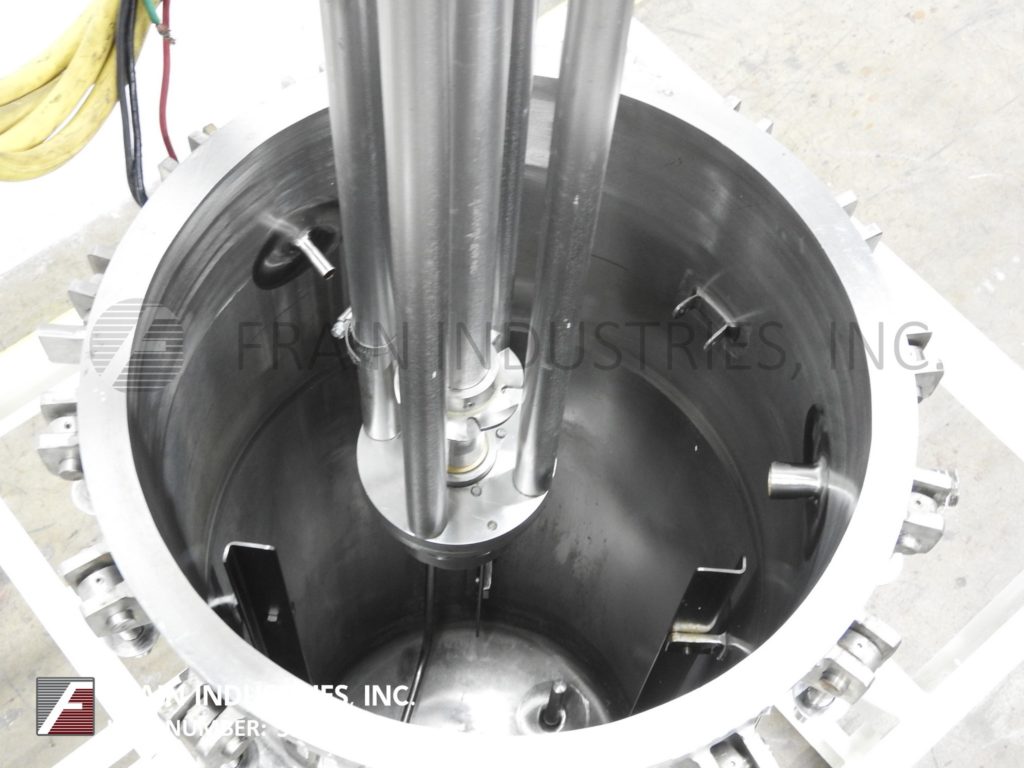

Stainless & Steel Products Co., 50 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 17¾" diameter with 48" straight wall. Equipped with (4) 1½" wide x 30" long fixed baffles, (1) thermowell, bottom liquid injection ring supplied by a ½" npt connection and top mounted high shear emulsifier.
Ross, Model ME 510, stainless steel, high shear emulsifier. Equipped with a top mounted 10 hp / 3500 rpm drive, (7/8)" slotted disintegrating head and optional downthrust shaft propeller.
Vessel and mixer mounted on a base with a 2" NPT bottom drain and 22" ground clearance.

Top Side Ports:
(1) ¾" NPT
(1) ½" NPT
(1) ¼" NPT

Bottom Side Ports:
(1) 1¼" NPT
(1) ½" NPT

Jacket Ports:
(3) ¾" NPT

MAWP: 40PSI / FV (Vessel)
MAWP: 50 PSI @ 300°F (Jacket)

OAD: 56"L x 36"W x 106"H
