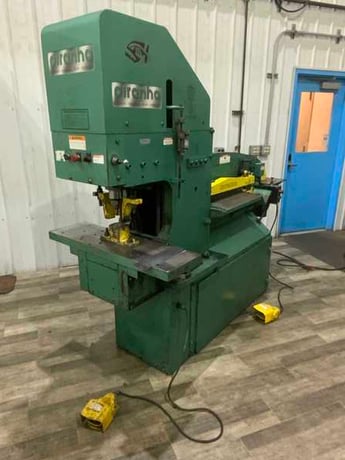

5" x 5" x 3/8" Piranha #PII-88, ironworker, 88 ton, 10" throat, 10 HP, electric foot pedal

SERIAL ................................ PII505

MODEL ................................. PII-88

PUNCHNG CAPACITY, TONNAGE ............. 88 TON

ANGLE SHEAR CAPACITY .................. 5" X 5" X 3/8"

THROAT DEPTH .......................... 10"

ANGLE SHEAR ........................... 5" X 5" X 3/8"

ROUND BAR SHEAR (MIN. TO MAX.) ........ 1-1/2"

SQUARE BAR SHEAR (MIN. TO MAX.) ....... 1" X 1"

PLATE SHEAR, BLADE LENGTH ............. 24"

PLATE SHEAR (MIN. TO MAX.) ............ 3/4" X 8" TO 1/4" X 24"

PUNCH (MAX.) .......................... 1-1/16" THRU 1" PLATE

PUNCH TABLE SIZE ...................... 34" X 16"

COPER/NOTCHER TONNAGE ................. 95

COPER/NOTCHER SIZE .................... 2-3/4" X 4" X 1/4"

STROKE LENGTH ......................... 7"

OPEN HEIGHT/ CLOSED HEIGHT ............ 14"& 7-3/4" W/O DIE BLOCK

STROKE PER MINUTE ..................... 24 @ 1"

ELECTRIC FOOT PEDAL ................... YES

MOTOR ................................. 10 HORSEPOWER
