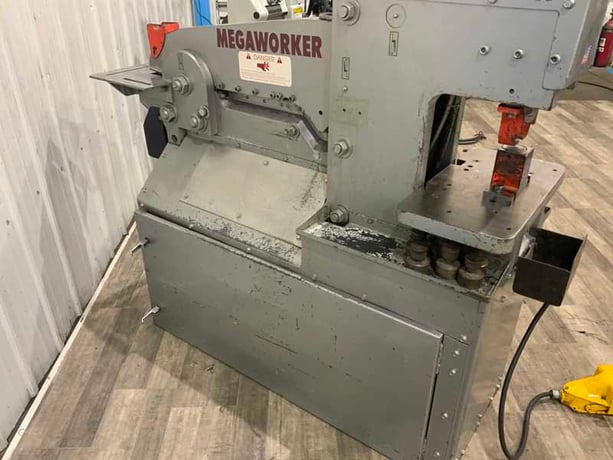

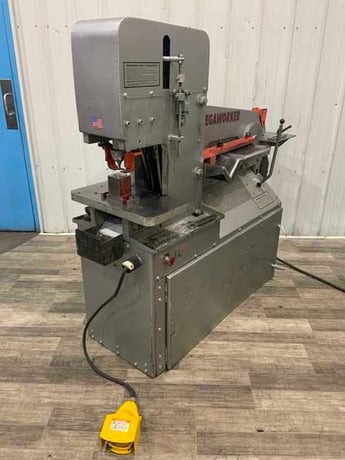

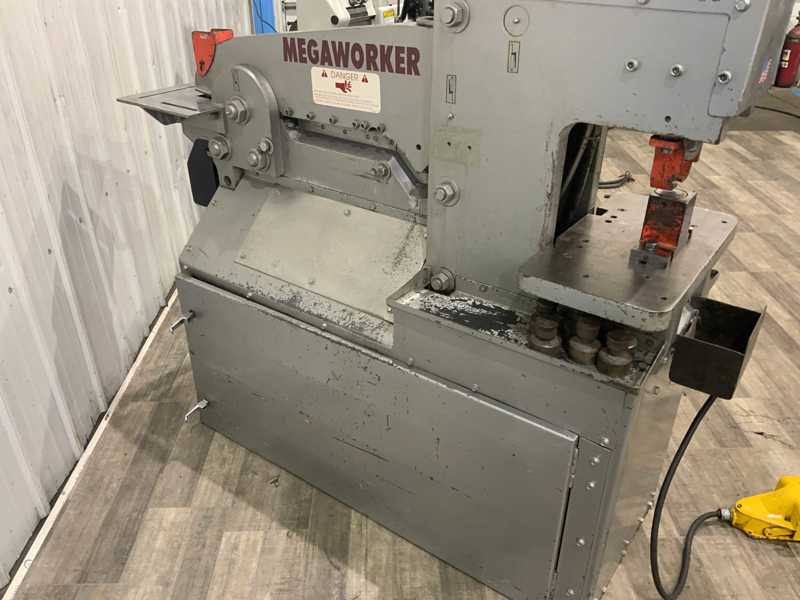

5" x 5" x 3/8" Mega, Piranha #MW35, hydraulic ironworker, 35 ton, electric foot pedal, 5 HP

SERIAL ................................

MODEL ................................. MW35

PUNCHNG CAPACITY, TONNAGE ............. 35 TON

ANGLE SHEAR CAPACITY .................. 5" X 5" X 3/8"

THROAT DEPTH .......................... 7"

ANGLE SHEAR ........................... 3" X 3" X 5/16"

ROUND BAR SHEAR (MIN. TO MAX.) ........ 11/4" TO 1-3/8"

SQUARE BAR SHEAR (MIN. TO MAX.) ....... 1/2" TO 1"

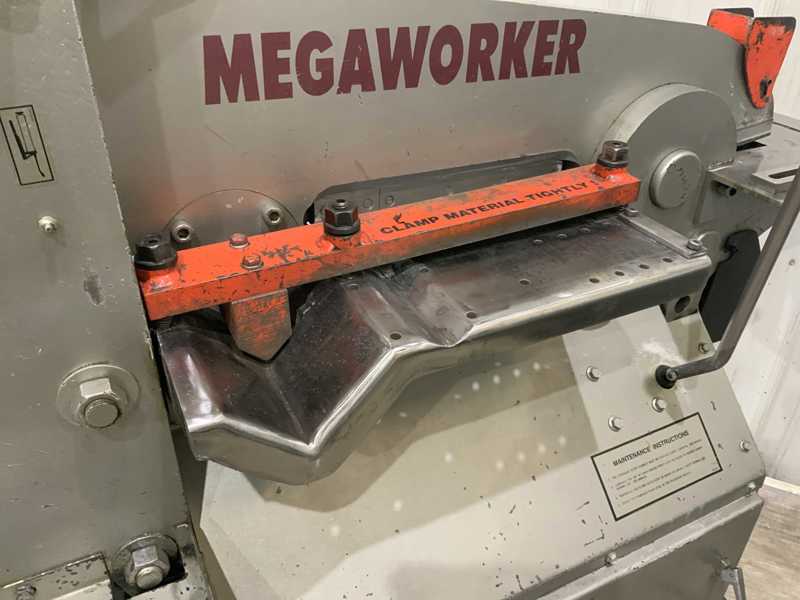

PLATE SHEAR, BLADE LENGTH ............. 13"

PLATE SHEAR (MIN. TO MAX.) ............ 5/8" X 6" TO 1/4" X 13"

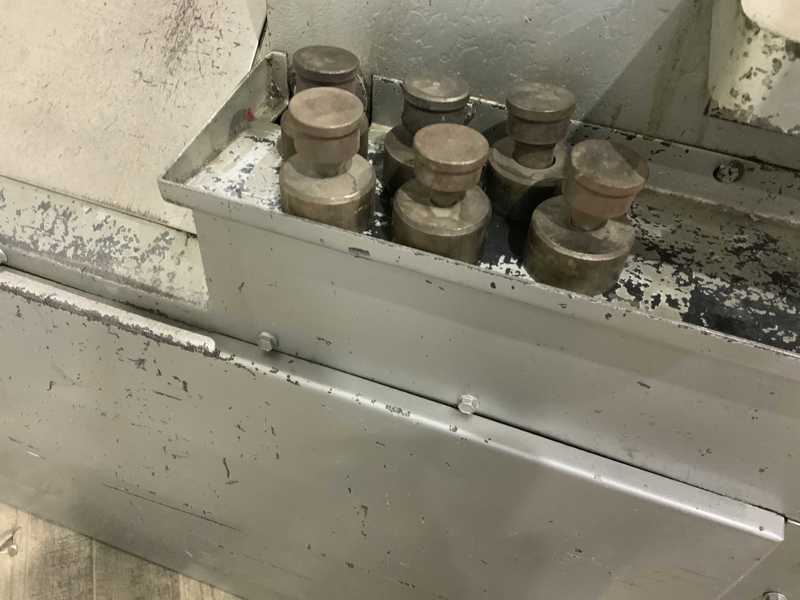

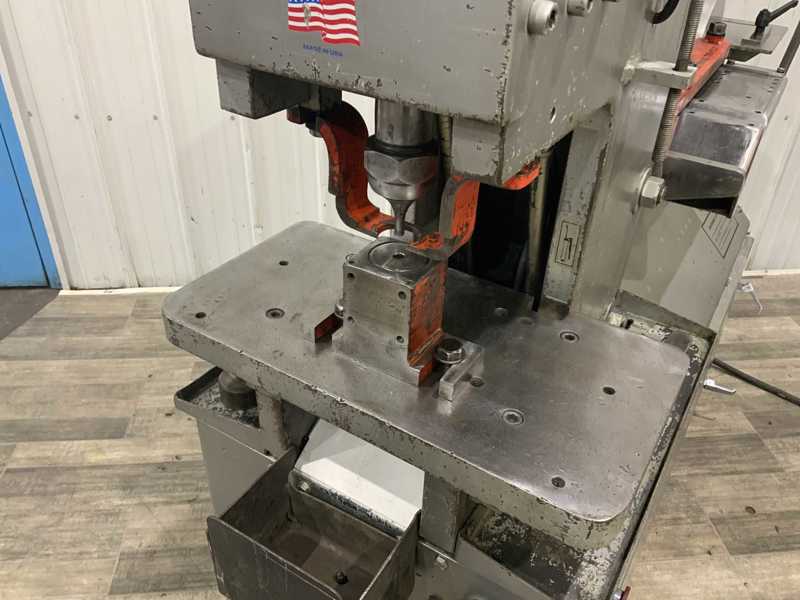

PUNCH (MAX.) .......................... 13/16" THRU 1/2" PLATE

PUNCH TABLE SIZE ......................

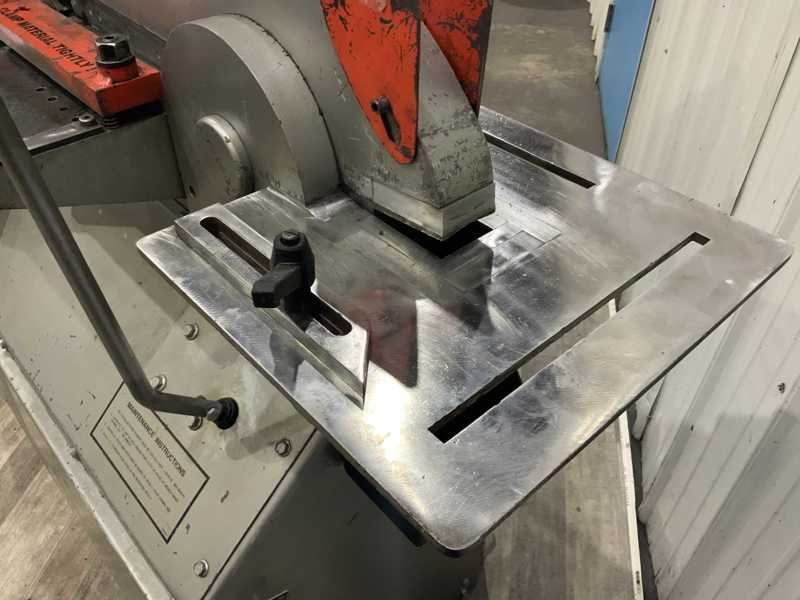

COPER/NOTCHER TONNAGE ................. 40

COPER/NOTCHER SIZE .................... 2-1/4" X 3" X 1/4"

STROKE LENGTH ......................... 4-1/4"

OPEN HEIGHT/ CLOSED HEIGHT ............ 9"& 7-1/4" W/O DIE BLOCK

STROKE PER MINUTE ..................... 28 @ 1"

ELECTRIC FOOT PEDAL ................... YES

MOTOR ................................. 5 HORSEPOWER
