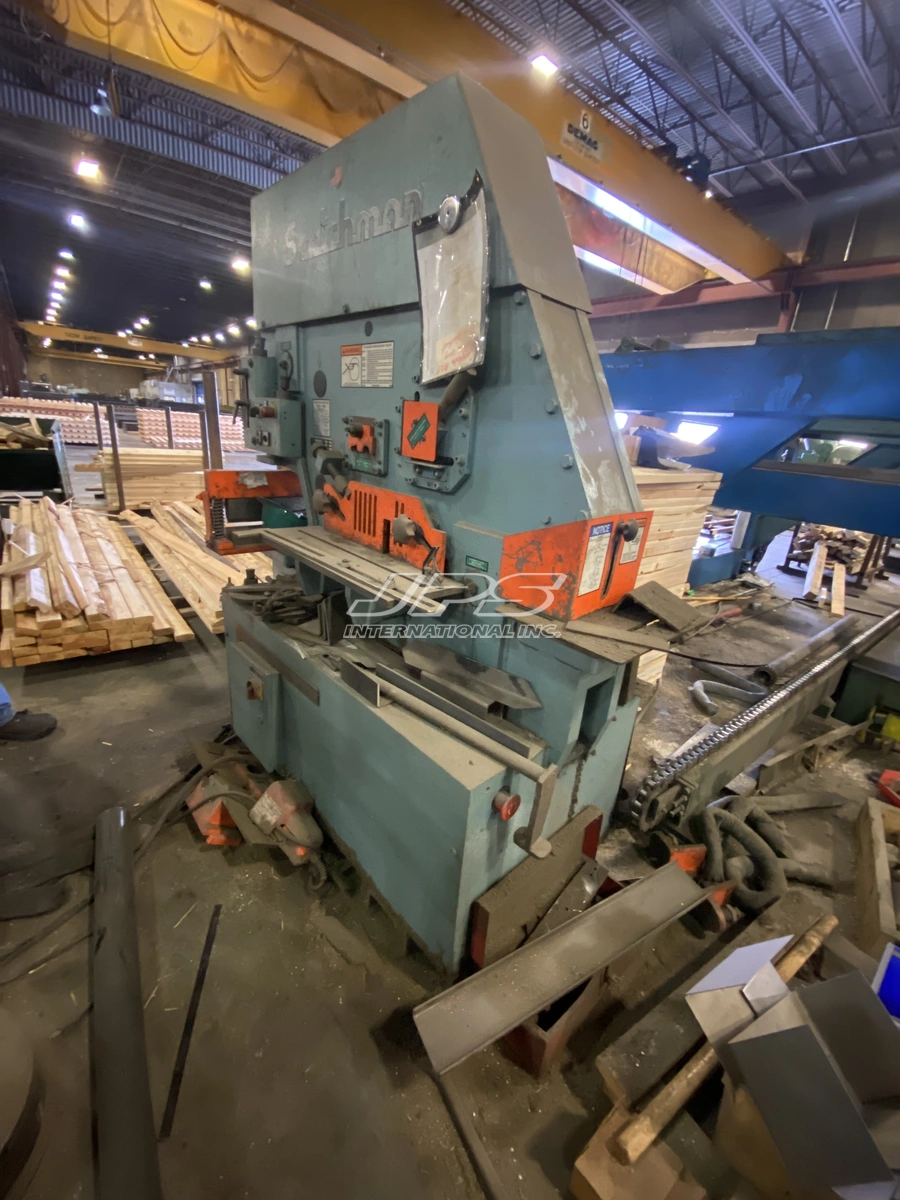

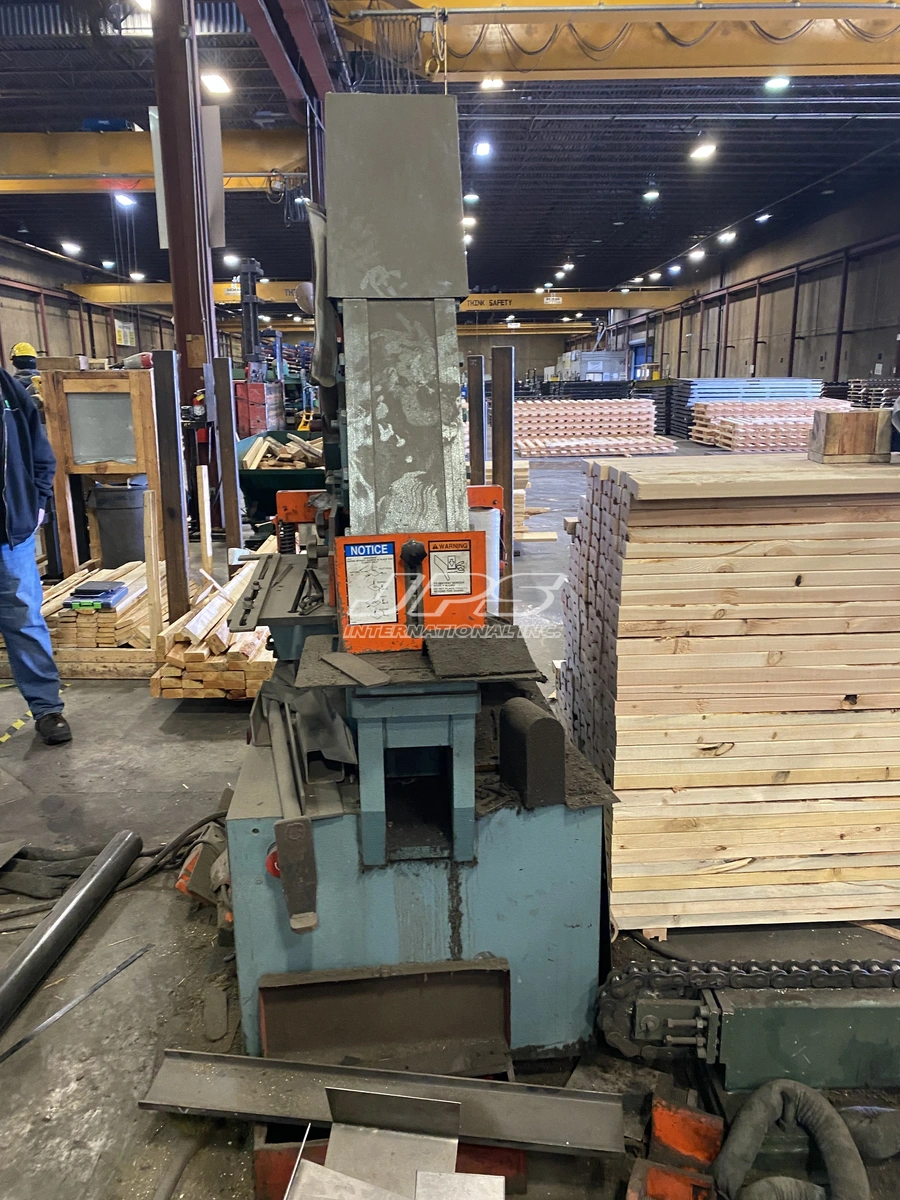

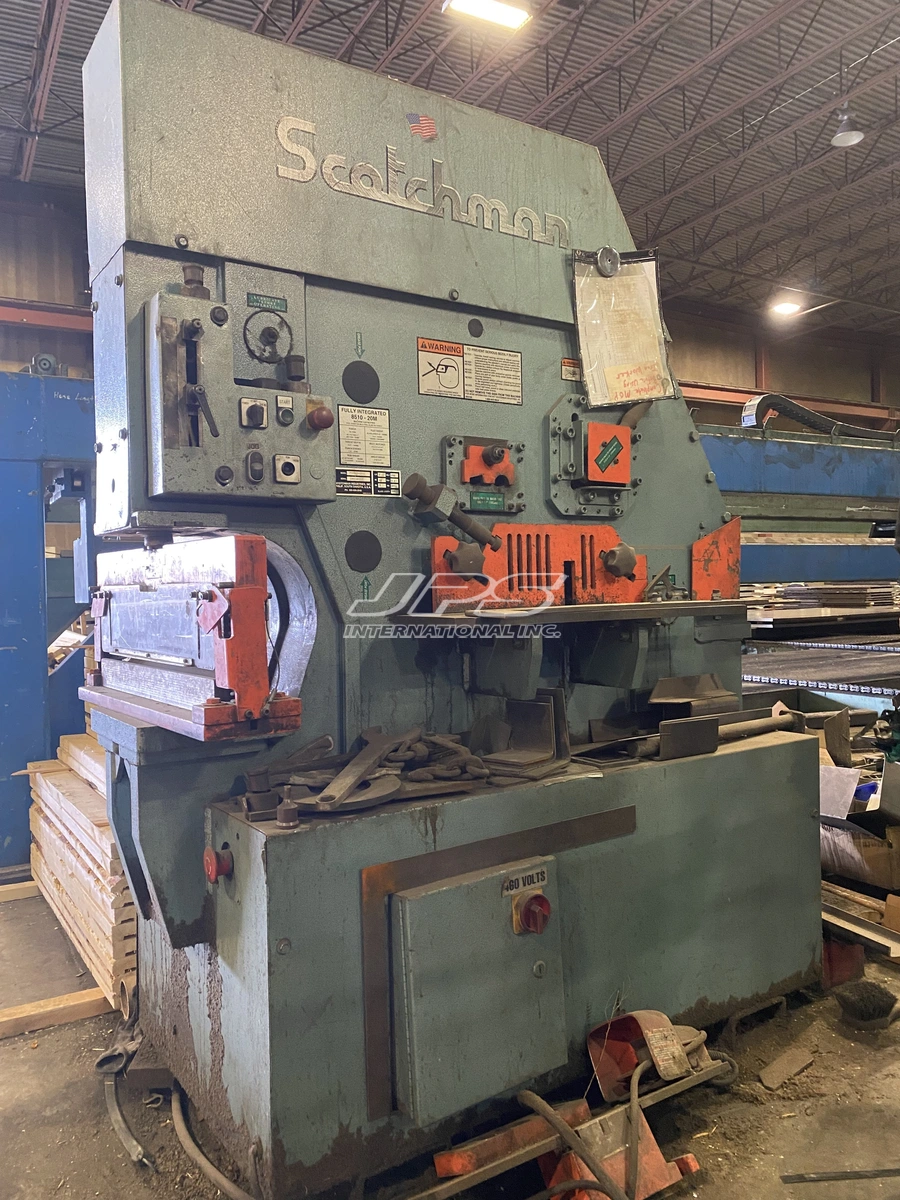

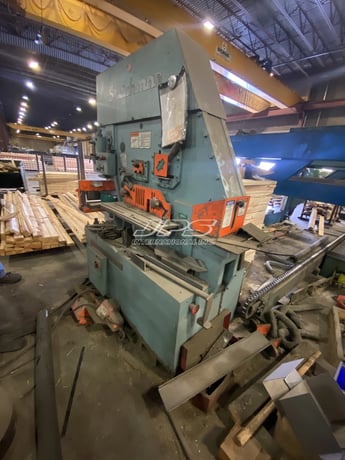

5" x 3" x 0.5" Scotchman #FI8510-20, 85 ton, 5 HP, 10" throat, 3.45" stroke, 2006

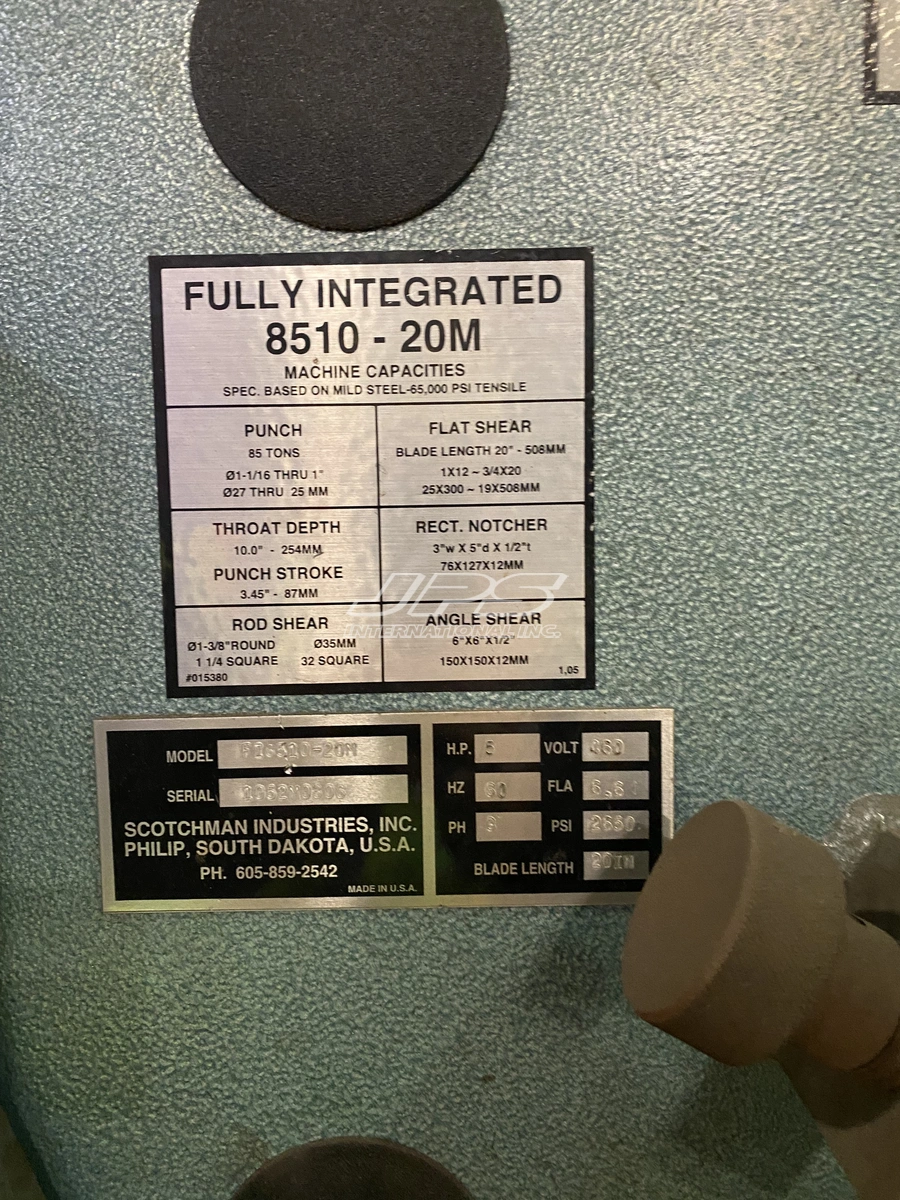

Punching Capacity:
85 ton (77 metric tons)
1-1/16" in 1" (27mm in 25mm
Special Tooling: 4" max diameter (102mm)
Throat Depth: 10" (254mm)
Flat Bar Shear:
20" length
1" x 12" (25mm x 305mm)
3/4" x 20" (19mm x 508mm)
Angle Shear 90: 6" x 6" x 1/2" (152mm x 152mm x 12mm)
Angle Shear 45 (with Bar Shear): 4" x 4" x 1/2" (102mm x 102mm x 12mm)

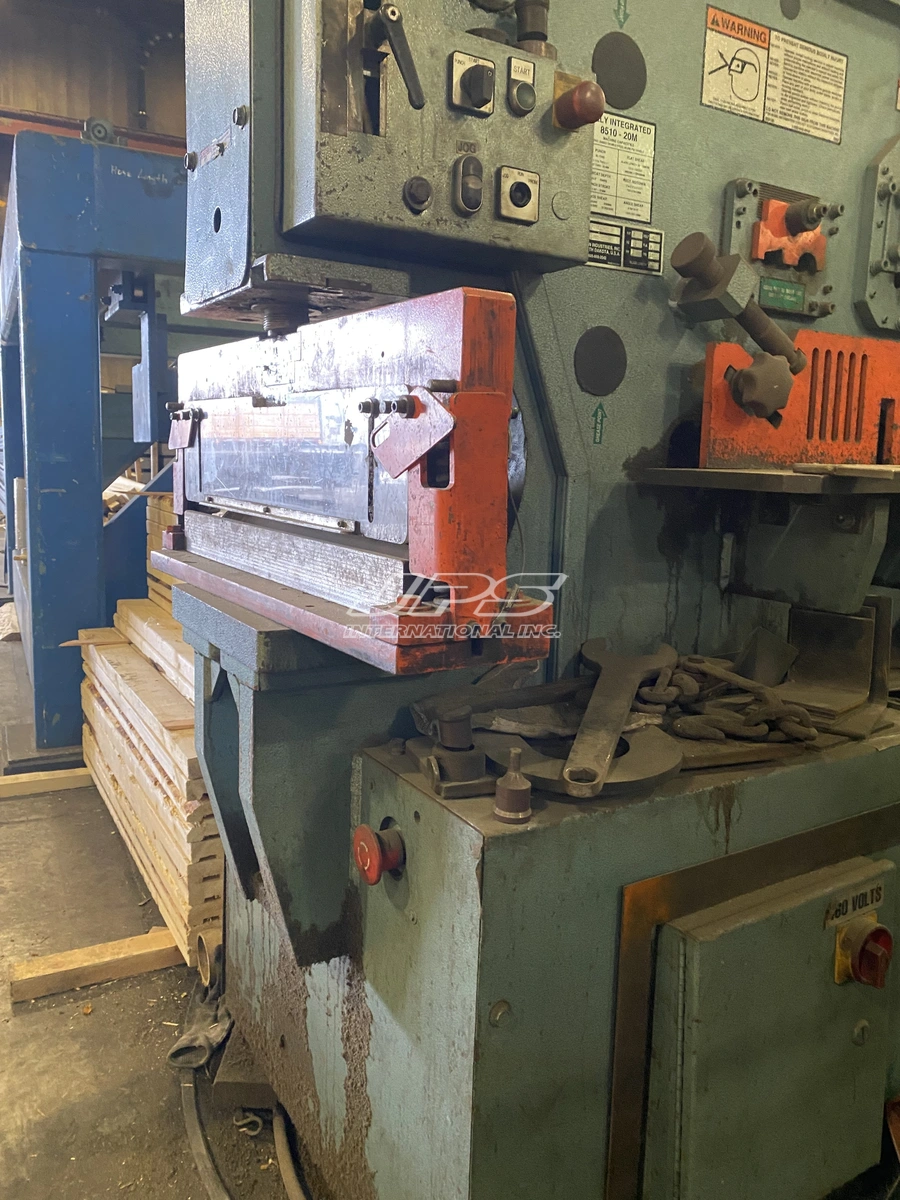

Brake:
12": 85 ton (77 metric tons)
24": 85 ton (77 metric tons)
Open End Brake: Max. 1/4" x 5" (6mm x 127mm) [Flat or Angle Iron]
Pipe Notcher (Schedule 40): 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 3" x 5" x 1/2" (76mm x 127mm x 12mm)
90 V-Notcher (Punch Station): 6" x 6" x 5/16" (152mm x 152mm x 8mm)
Channel Shear: 2" to 6" adjustable (51mm to 152mm adjustable)
Unistrut Shear: Samples required
Rod Shear:
Round (max.): 1-1/2" (38mm)
Square (max.): 1-1/4" (32mm)
Square Tube Shear: 1/2" to 2" (12 gauge) (12mm to 51mm, 2.7mm)
Picket Tool: 1/2", 3/4", & 1" (16 gauge) (12mm, 19mm, & 25mm, 1.5mm)
Weld Coupon Bender (max.): 2" wide x 3/8" (51mm x 10mm)
Offset Die Holder: Max. 40 ton (36 metric tons)
Strokes per Minute (Punch Station):
Light Material: 51 SPM (1/4" stroke)
Heavy Material: 24 SPM (3/4" stroke)
Hydraulics: 2,600 psi (179 bar)
Motor:
Standard: 5 hp (3.76 kW), 208/230/460V, 380/575V, 3-phase
Optional: 5 hp (3.76 kW), 220V, 1-phase
Dimensions:
L: 67-3/4" (172cm)
W: 32" (81.5cm)
H: 78" (198cm)
Shipping Weight: 4,554 lbs (2,066 kg) (may vary)
