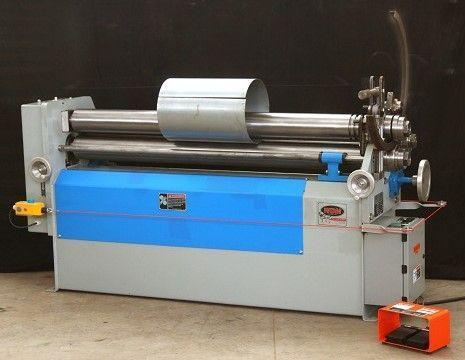

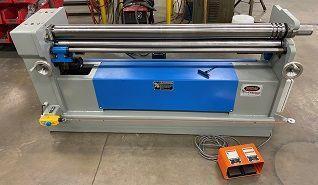

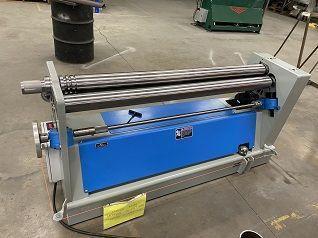

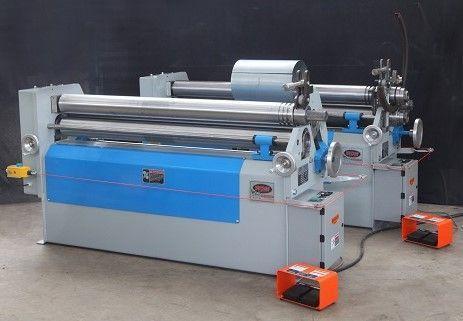

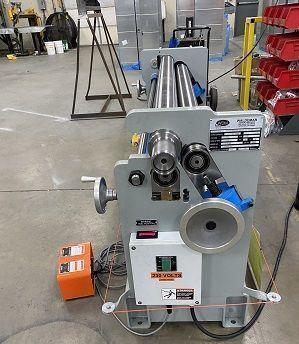

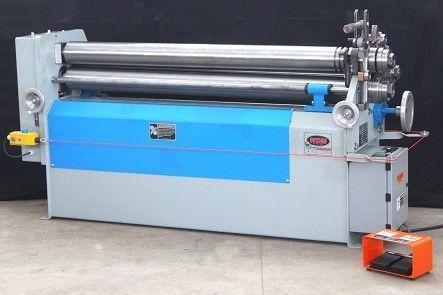

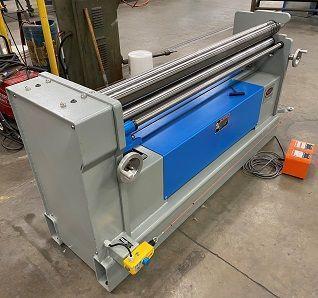

5' x 1/4" WDM #310-6-60, hydraulic initial pinch plate bending machine, 20 FPM, NEW

FEATURES:
• All gear drive • Sealed ball & roller bearings on all rolls and idler gears
• Unique all electric drive via gear motors
• Infinitely variable speed via variable frequency drives
• No Hydraulics
• 30% more effective than hydraulic machines
• Independent adjustment of the pinch roll via a handwheel-wedge-screw arrangement
• Steel bearing cases and bronze wedges
• Bending roll adjusted with handwheel via bronze worm gear/alloy steel screw arrangement, tiltable for cone rolling.
• Instant start, stop, and reverse via guarded foot pedal
• Safety cable on three sides of the machine
• Swing out top roll for easy work piece removal with new easy unlock feature
• Starting groove in pinch roll to facilitate rapid work piece pre-bending and rolling.

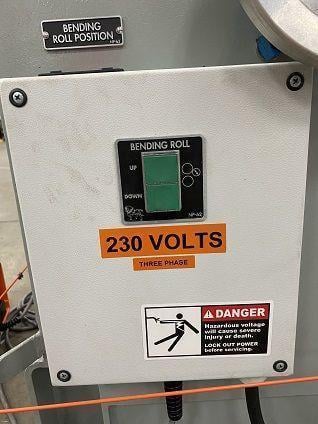

• Aluminum scale and pointer to show bending roll position
• Haze gray epoxy and safety blue enamel finish
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
WARRANTY:
Waldemar Design & Machine L.L.C. guarantees for a period of one year from the date of original purchase all necessary repairs and parts replacements to this unit occasioned by defective workmanship and/or material. Should any failure occur during this time period, purchaser agrees to return defective part to factory for repair or replacement at factory’s option.
OPTIONAL FEATURES:
• Cone Attachment - $2,050
• Hardened and Polished Rolls - $2,900
• Circular Grooves 3/8, 1/2, 5/8 - $950
• Additional Starting Groove - $225
• Third Roll Drive - $2,050
• Electric Digital Readout - $2,600
• Power Bending Adjustment - $3,450
• Power Disconnect - $950
• Single Axis Side Support (manual) - $3,600
• Overhead Support 8' Max (manual) - $5,650
FOR 3105 AND 3106:
• Extended Shafts - $2,000 • Section Dies - $3,200
• Pipe/Profile Dies 3.5” wide - $2,500
• Guide Roll Attachment - $1,500
• Anti-Twist Attachment - $1,500
EXTENDED SHAFT CAPACITY:
(310-5 and 310-6 models only)
Material 310-5 310-6 Options Required
Angle Leg In 1-1/4 x 1/4` 1-1/2 x 1/4 ES, SD, GRA, ATA
Angle Leg Out 1-1/4 x 1/4 1-1/2 x 1/4 ES, SD, GRA
Square Bar 1-1/8 1-1/4 ES, SD
Flat on Flat 1/2 x 4 1/2 X 6 ES, SD
Flat on Edge 3/4 x 1-1/2 or 1/2 x 1-3/4 3/8 X 2-1/4 ES, SD
Pipe 1-1/4 Schedule 80 1-1/2 Schedule 40 ES, PRD
Round Bar 1-3/8 1-3/8 ES, PRD
DELIVERY:
10-12 Weeks
