Description

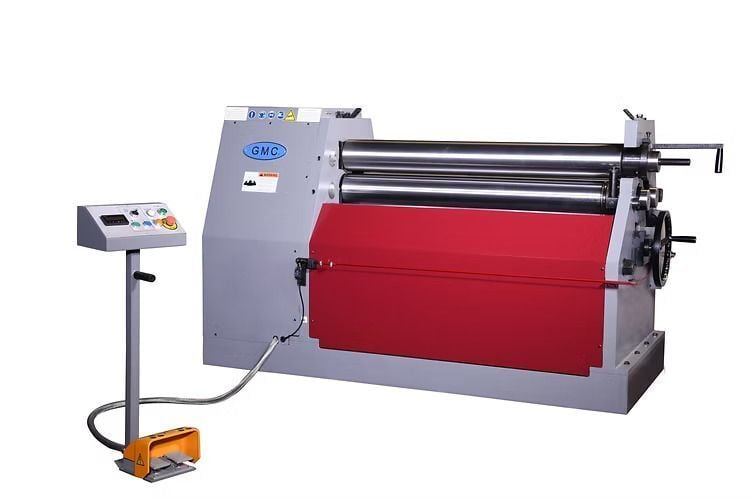

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us Roll Capacity: Mild Steel 5' x 1/4" stainless steel 5' x 3/16" soft aluminum 5' x 3/8" min. thickness 22GA Min. Roll dia. 9" Rolls Length 5' 2" Rolls Dia. 7" Pre-bend 0.18" Rolls speed 5 RPM Rolls Opening 1 1/2" Oil Tank Cap. 45L = 12 Gal Main Motor 5-1/2 HP,20 A/220V or 10A/440V Weigth 5150lbs. Dimensions 102" x 38" x 58"
WYSONG B-60 3-Roll Plate Roll #8224 #2, Length of Rolls: 5, Max Thickness: 14 Gauge, Number of Rolls: 3, Electrical: 460V/3PH, Approx. Shipping Weight: 4000 Lbs., Approx. Shipping Dimensions: 8 L x 4 W x 5 H, Pneumatic Automatic Drop End, Powered Forward/Reverse Operation.
5’ X 10 Gauge Initial Pinch Plate Roll with Remote Electrical Stand with Forward / Reverse, E - Stop, Top Mounted Handle to Lift Upper Roll Easily for Workpiece Removal, Safety Line Around Machine, Powered Bottom Roll, Rolls Made of High Grade Alloy Steel and Top Roll Position Controlled by Independent Motor. ...more
SERIAL. 12901232, MODEL. MP5.125, YEAR NEW., CAPACITY. 5' X 10 GAUGE, ROLL DIAMETER. 5", SURFACE FEET PER MINUTE. 18, WORKING AREA OF ROLL. 62", PINCH ROLL OPENING. 1/2", PASS LINE HEIGHT. 34", DUAL CONTROL FOOT. FORWARD / REVERSE, REAR ROLL ADJUSTMENT. MANUAL, ROLL GROOVED FOR WIRE. YES, TOP ROLL LIFT. YES, DROP ...more
