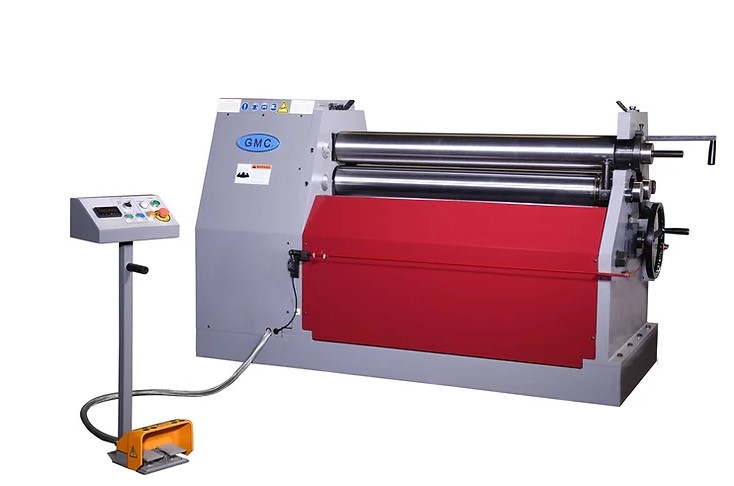

5' x 1/4" GMC #HBR-0525, Hydraulic Plate Bending Roll Machine, 3-Roll, 7" diameter x 5.17' L Roll, 0.18" Pre-Bend, 1.5" Roll Opening, 5.5 HP, 5 RPM, new

Description

GMC 5′ x 1/4″ Hydraulic Plate Bending Roll Machine, HBR-0525

Inventory # 6199

Model: HBR-0525

Specifications:

Capacity:

Mild Steel: 5′ x 1/4″

Stainless Steel: 5′ x 3/16″

Minimum Rolling Diameter: 8″

Roll Length: 5′ 2″

Roll Diameter: 7″

Pre-Bend: 0.18″

Roll Speed: 5 RPM

Roll Opening: 1 1/2″

Oil Tank Gap: 12 Gallons

Main Motor: 5.5 HP / 208v, 220v OR 460v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

ISO 9001 Certified

Easy swing-out top roller

Standard cone attachment installed

LED indicator for bending roll position

Safety lines all around the machine for emergency stop

Heavy duty all steel welded machine construction

German hydraulic logic system is centrally located and quiet

The bending roll is hydraulically powered up/down as well as the tilting adjustment

Planetary reduction gear and pump

All three rolls are made of high-grade alloy steel

All rolls run forward and reverse

Safety-type foot pedal control

Overload protection and disconnect switch

One-year industrial warranty for parts

Standard Equipment:

LED indicator for bending roll position

Safety lines all around the machine for emergency stop

Removable safety foot pedal and toolbox

Cone Attachment

(3) Grooves 3/8″, 1/2″, 5/8″ on Roll for Bending Wire

Mechanical Specifications:

Dimensions: 102″ x 38″ x 58″ H

Weight: approx. 6,850 lbs.

FOB Factory – Contact us for availability
