5" Union #BFP130/6, floor type horizontal boring mill, rapid traverse, facing head, pendant Control, digital read out, 1980

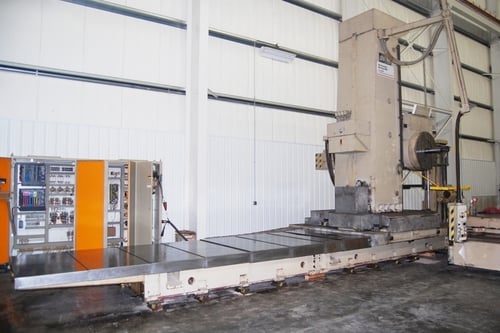

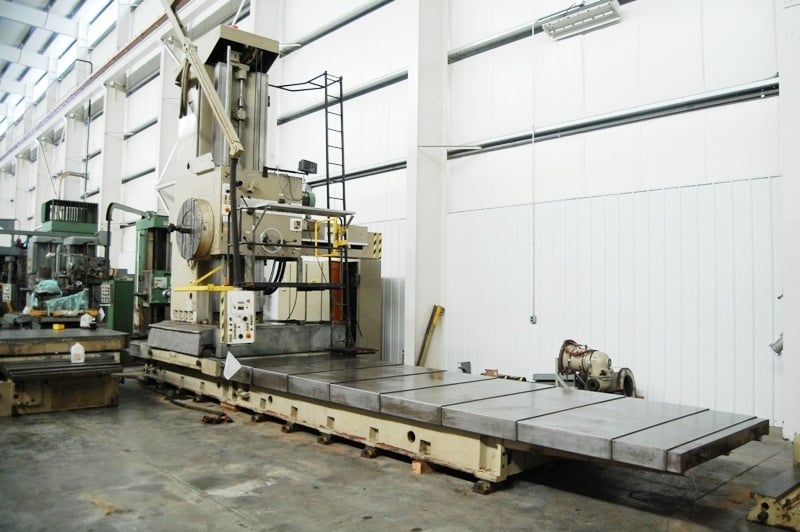

5" UNION FLOOR TYPE HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $MAKE OFFER
Stock # 14148
Serial # 11075 New 1980 Model # BFP 130/6
Note: In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel. Currently we believe there are 2 Fanuc control cards that are NOT functional and thus the machine control does not boot up and that makes the machine not operational. When the machine did work it worked fine. This is NOT a cnc machine. It still uses the manual pendant for operational control.

July 24, 2024:

In the early part of 2020, the Fanuc logic system suffered a critical failure. The machine has not run since. The boring mill is now marked, unwired, and disassembled stacked in my warehouse. The machine parts are ready to load on a truck or be consolidated into a container. Packing in a container is a service quoted on a case-by-case basis.
Column Longitudinal Travel: 18' 3", Rack & Pinion Driven
Head Vertical Travel: 98", Driven by Ball Screw & Fanuc Servo Motor
Column Cross Travel: 15.7", Driven by Ball Screw & Fanuc Servo Motor
Spindle Travel: 39"
(27) Spindle Speeds: 4.5 to 900 RPM
Spindle Taper: #50 with Power Draw Bolt

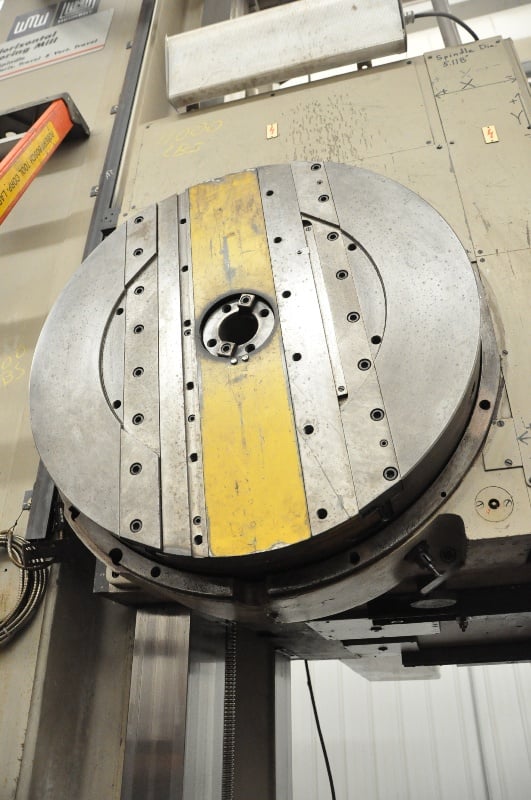

Facing Plate Diameter: 34" (covers the facing head)
Facing Head Diameter: 30.9" Diameter
(18) Facing Head Speed: 4.5 to 180 RPM
Facing Head Travel: 12.59"
Spindle Feeds: .03 to 48 MM Per Rev., & .0016 to 2.00 TPR
(36) Feeds to Head & Column: .024 to 78.7 IPM
EQUIPPED WITH:
Rapid Traverse

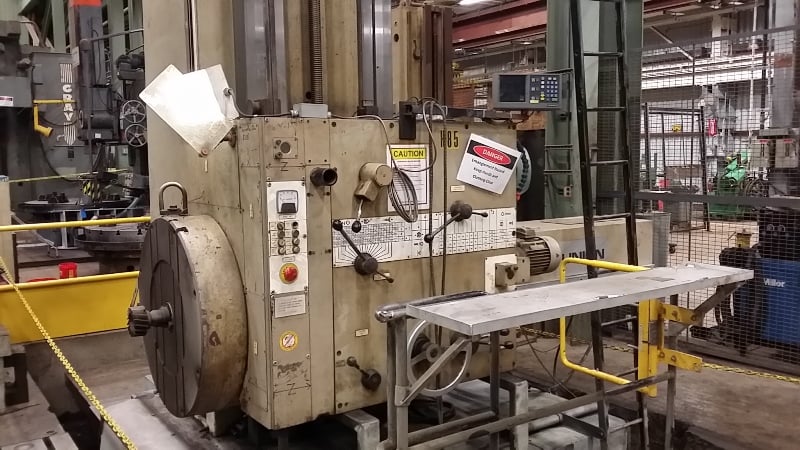

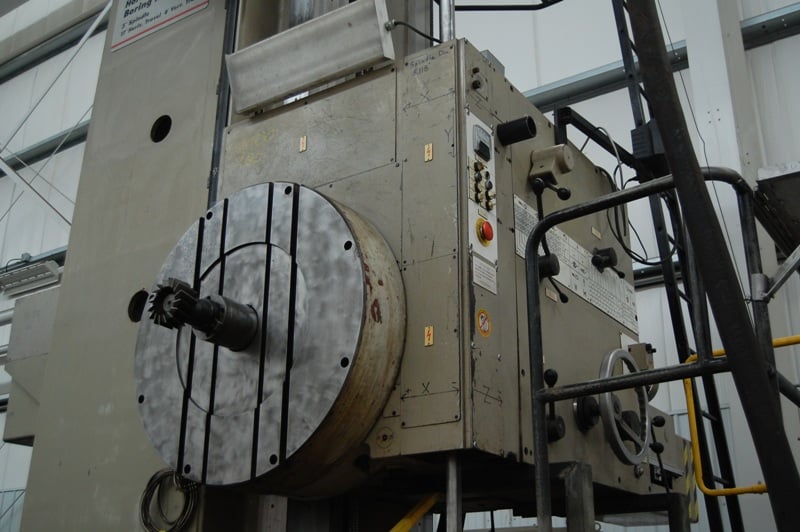

Facing Head
Universal Right Angle Milling Head with 24-1/2" Long Extension
Tailstock with 78" Power Vertical Travel & 39" Power Longitudinal Travel on the Base
3-Axs Acu Rite DRO: Head Vertical Travel, Column Cross Travel & Spindle Travel

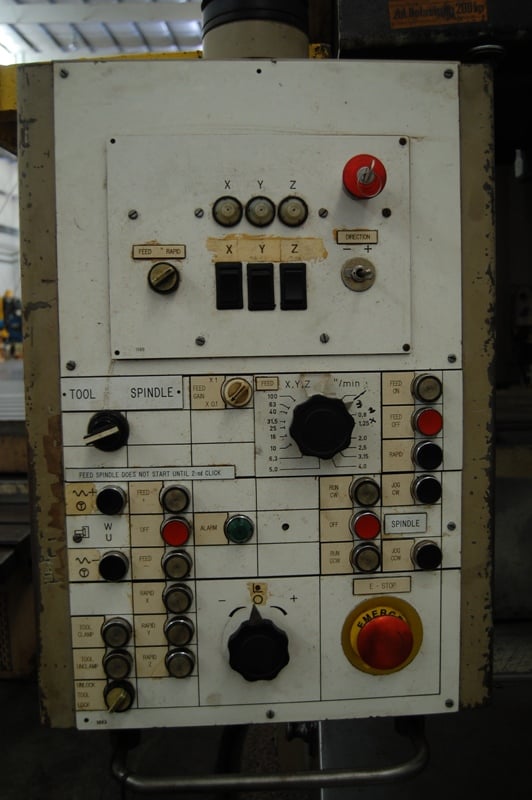

Pendant Control
Sliding Metal Way Covers on the Bed
Wedge Type Leveling Pads
All Hard Ways
Spindle Drive Motor: 18.5 KW, 3/60/480V
Note: In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel.
SHIPPING SIZES:
Bed & Column Base: 35' L x 104" W x 40" H x 27,000 Lbs.
Head: 128" L x 49" W x 51" H x 11,000 Lbs.
Column: 13' L x 48" W x 68" H x 12,500 Lbs.

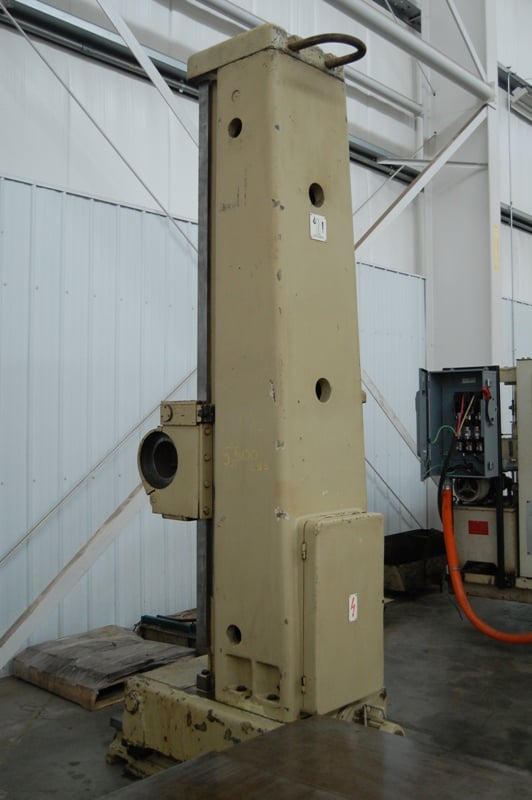

Tailstock: 92" L x 36" W x 124" H x 5,500 Lbs.

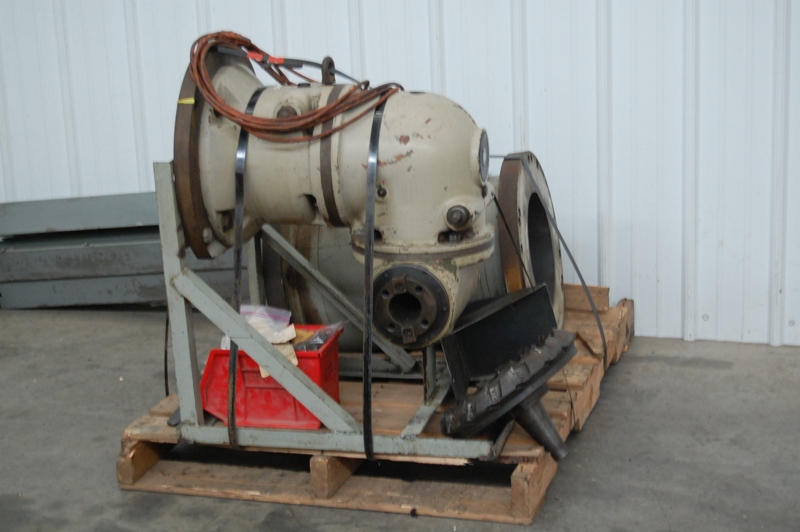

Skid with Right Angle Attachment & Extension: 4' L x 40" W x 40" H x 1,250 Lbs.
Overall Machine Assembled: 35' L x 170" W x 221" H
Union 78" x 70" Sliding Rotary Table Available at Additional Cost (HMC Stock #14149)
