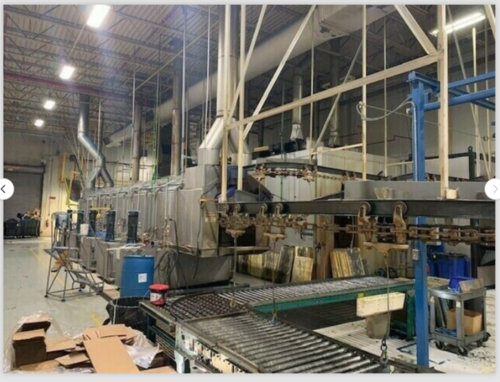

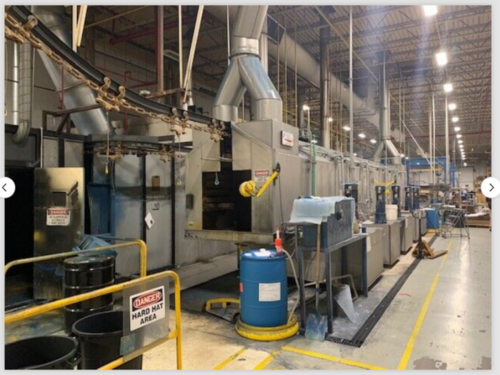

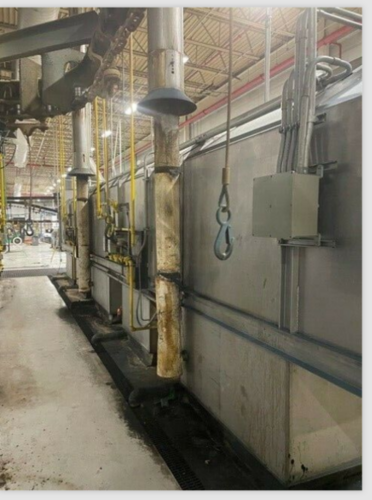

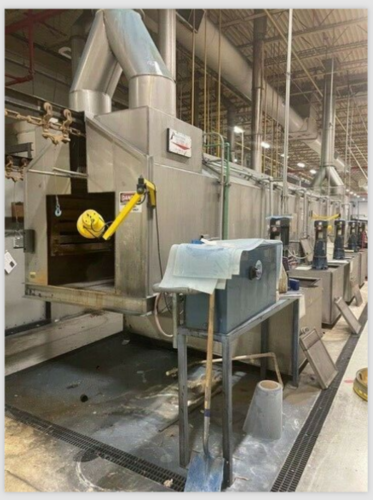

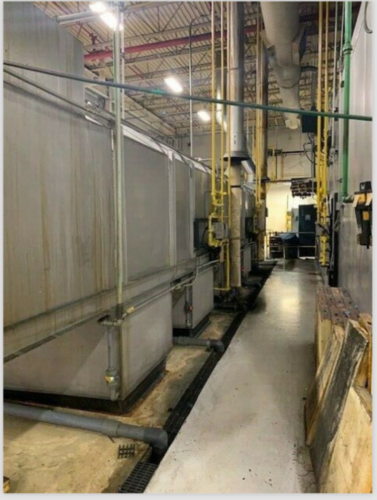

Production Systems, 5-stage Stainless Steel pretreatment washer

5-Stage Production Systems Stainless Steel Pretreatment Washer

Design: 3’-0” w x 3’-0” h Opening, 2 FPM

Design Specifications:

Manufacturer: Production Systems

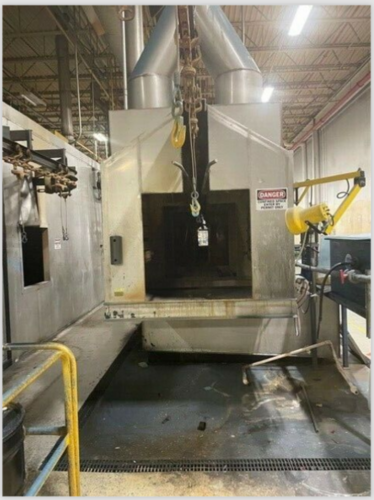

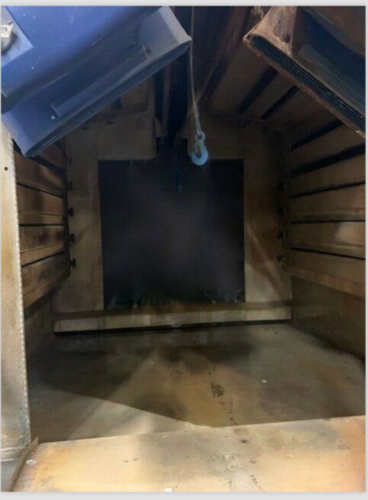

Part Opening: 3’-0” W x 3’-0” H (can be modified)

Type: Continuous Overhead Monorail

Line Speed 2 FPM (Variable and may be modified)

Conveyor: 4” I-Beam, may be changed. 29” Keyway. 9’-2” Track Height

Location: Berlin, Wisconsin

Dimensions: 9’-6” High x 9’-6” Wide x 46’-0” Long (Can modify)

Condition: Excellent, Operational until 08/31/2020

5- Stage Stainless Steel Washer

- Dwell Times @ 3 FPM:

- S1 – Alkaline Wash (90 sec @ <140°F), 700 Gallons, 120 GPM @ 5 HP, 500,000 Btu’s

- S2 – Rinse (45 sec @ amb.) 600 Gallons, 70 GPM @ 3 HP

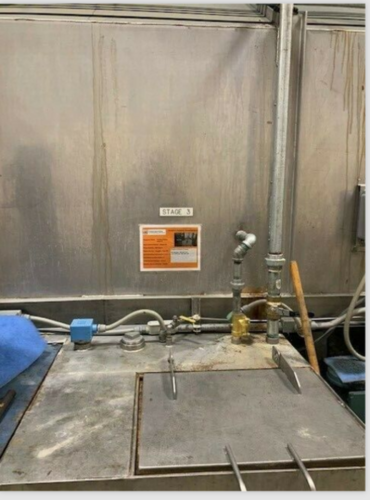

- S3 – Iron Phosphate (90 sec @ <140°F) 700 Gallons, 120 GPM @ 5 HP, 500,000 Btu’s

- S4 – Rinse (45 sec @ amb) 600 Gallons, 70 GPM @ 3 HP

- S5 – Rinse (90 sec @ amb.) 600 Gallons, 70 GPM @ 3 HP

- Washer ships in one section on a permitted step-deck. Estimated weight = 30,000 lbs

- Construction

- 7 GA x 304 SS Tanks

- 10 GA x 304 SS Housing.

- 4” Stainless Steel I-Beam Conveyor Track

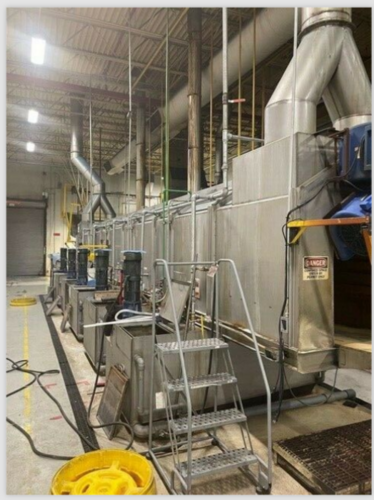

- Haynes Vertical Mount Pumps, Pumps are 316L on all stages.

- PVC and CPVC Plumbing

- Maxon Tube-O-Flame Gas Burners with Honeywell Gas Trains for Heated Stages 1 & 3

- Entrance and Exit Exhaust Fans – 12”

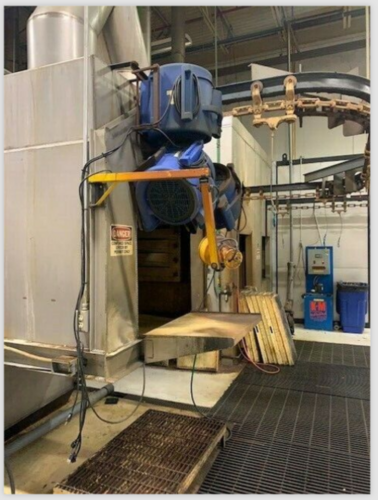

- Blow-Off Fans on Exit

- System Control Panel with Prints

- Ships on 1 -Semi Trailer, AIS will load.

- Item listed on 07/03/2021

- Rigging and installation are services for an added cost upon request.

- Price: $95,000 as-is and loaded on trucks.
