For Sale by T R Wigglesworth Machinery
Surplus Record Dealer Since 1940
Location: Bedford, OH
Contact T. Wigglesworth
Phone Number: 440...> Show Phone Number 440-359-2655
Let the seller know you found their listing on Surplus Record!
Description
Description
Specifications
Overview

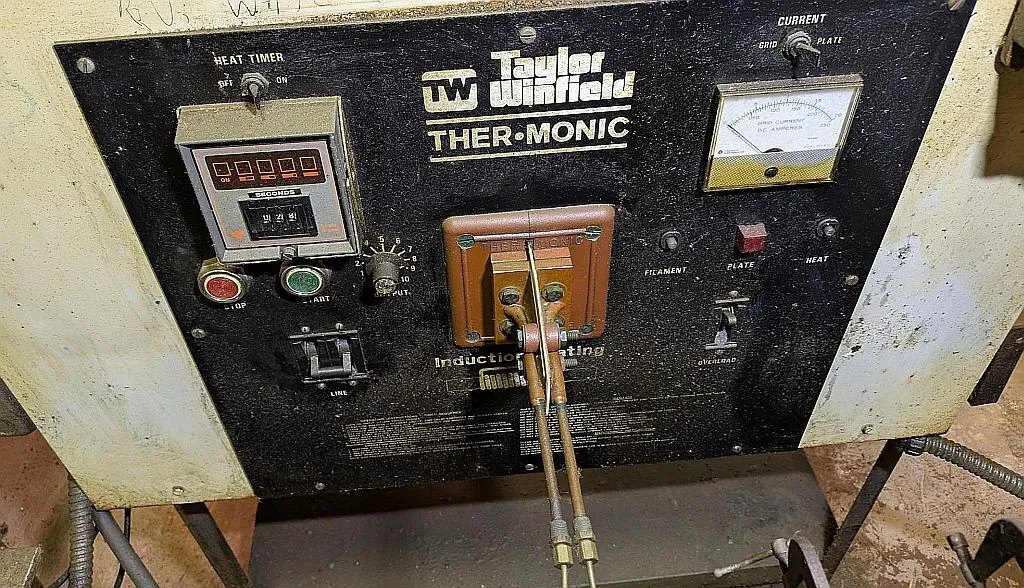

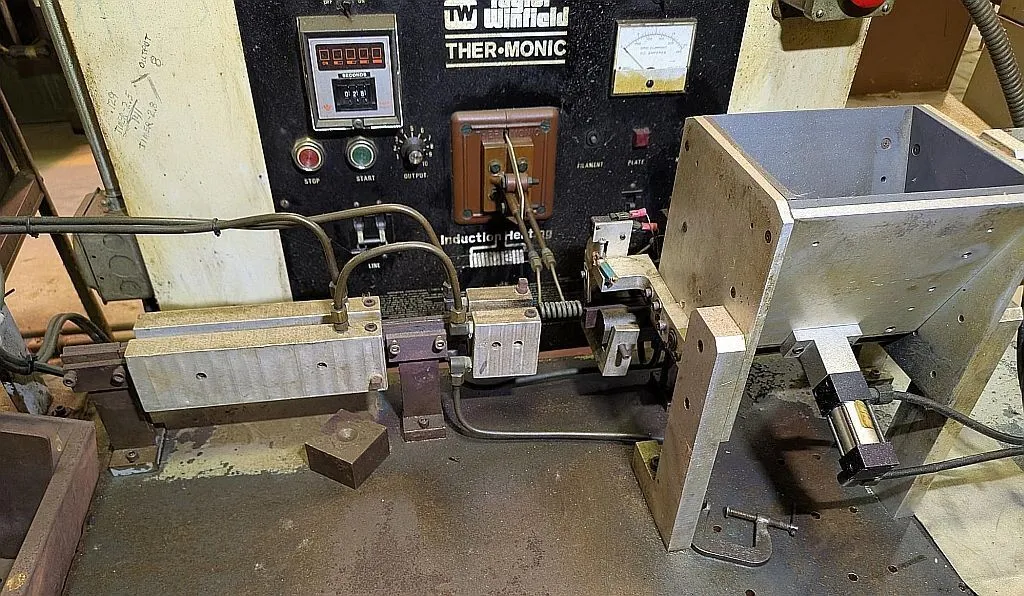

Taylor-Winfield MKII-5 is a 5.0 kW induction heating system designed for industrial applications requiring precise and efficient heating.
Specifications
Output Power: 5.0 kW
Output Frequency: 450 kHz
Input Power: 10.3 kVA
Line Current: 52.8 amps
Circuit Breaker Rating: 60 amps
Plate Voltage (DC): 5,500 volts
Filament Power: 36 amps at 13 volts
Oscillator Tube: Model 345J 682344
Grid Resistor: Two 15K ohm, 200W resistors in parallel (totaling 7.5K ohms)
Full Load Plate Current: 1.8 amps
Full Load Grid Current: 0.100 amps
No Load Plate Current: 0.60 amps
No Load Grid Current: 0.200 amps
Generator Heat Output: 284.5 BTU/min
Cabinet Dimensions: 23 inches (Length) × 33 inches (Width) × 22 inches (Height)
Blower Motor 1BM: 1 amp, 150 CFM
Blower Motor 2BM: 0.5 amp, 160 CFM
Overview
Type:
Induction Heating Generator
Manufacturer:
TAYLOR WINDFIELDModel:
MK11-5
Stock #:
12207
Status:
For Sale
