For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Sales
866-69...> Show Seller's Phone Number 866-692-8933 Let the seller know you found their listing on Surplus Record!
Description
SERIAL ............................ 3152 105 002

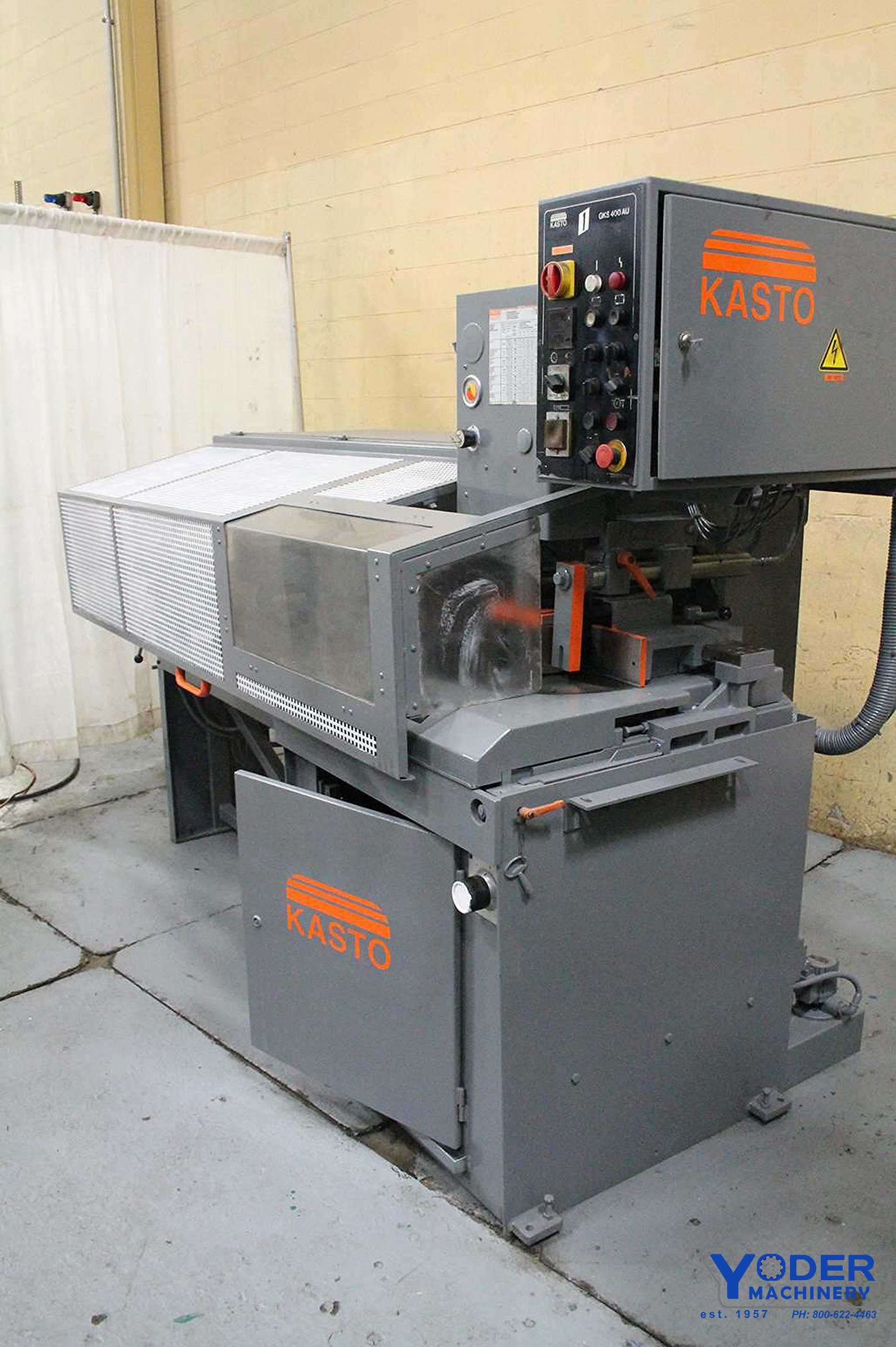

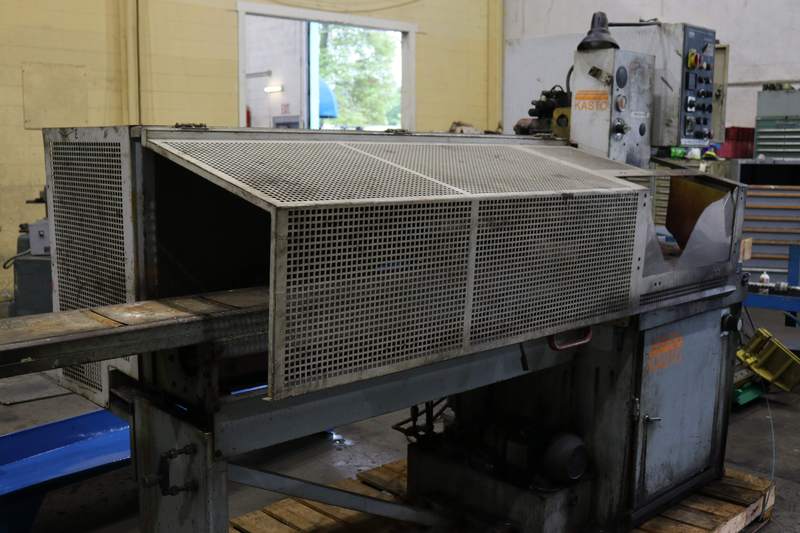

MODEL ............................. GKS 400 AU/1200
YEAR OF MANUFACTURE ............... 1996
SAW BLADE ......................... 15.74" (400 mm )
CUTTING DIAMETER .................. 5.11" (130 mm)
CAPACITY, ROUND @ 45 DEGREES ...... 5.11" (130 mm)
CAPACITY, FLAT @ 45 DEGREES ....... 6.29" x 35.0" (160 x 890 mm)
CAPACITY, ROUND @ 90 DEGREES ...... 5.11" (130 mm)
CAPACITY, FLAT @ 90 DEGREES ....... 8.26" x 3.14" (210 x 80 mm)
CAPACITY, ROUND @ 60 DEGREES ...... 3.54" (90 mm)
CAPACITY, FLAT @ 60 DEGREES ....... 4.13" x 3.14" (105 x 80 mm)

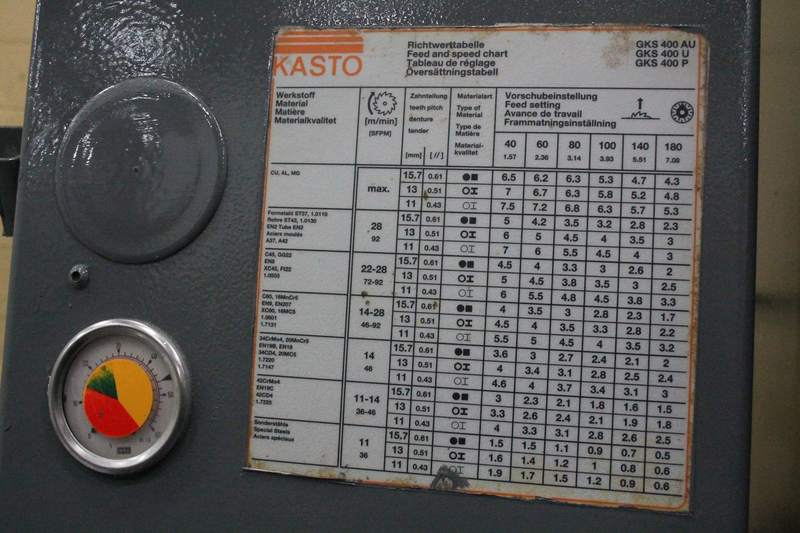

CUTTING SPEED ..................... 433/866 in/min (11/22 m/min)
FEED LENGTH ....................... 47.2" (1200 mm)
MULTIPLE FEEDING LENGTH ........... 141.7" (3600 mm)
POWER CAPACITY .................... 2.14/3.35 HP (1.6/2.5 Kw)
TABLE ROTATION .................... 150 DEGREES
SAW BLADE FEED-SPEED .............. .629"-23.6" in/min (16-600 mm/min)
SAW BLADE DIAMETER ................ 16.73" (425 mm) MAXIMUM
ROLL GUIDEWAYS WITH LENGTH STOP ... YES
TOTAL POWER REQUIRED .............. 6.7 HP (5.0 Kw)
MODEL ............................. GKS 400 AU/1200
YEAR OF MANUFACTURE ............... 1996
SAW BLADE ......................... 15.74" (400 mm )
CUTTING DIAMETER .................. 5.11" (130 mm)
CAPACITY, ROUND @ 45 DEGREES ...... 5.11" (130 mm)
CAPACITY, FLAT @ 45 DEGREES ....... 6.29" x 35.0" (160 x 890 mm)
CAPACITY, ROUND @ 90 DEGREES ...... 5.11" (130 mm)
CAPACITY, FLAT @ 90 DEGREES ....... 8.26" x 3.14" (210 x 80 mm)
CAPACITY, ROUND @ 60 DEGREES ...... 3.54" (90 mm)
CAPACITY, FLAT @ 60 DEGREES ....... 4.13" x 3.14" (105 x 80 mm)
CUTTING SPEED ..................... 433/866 in/min (11/22 m/min)
FEED LENGTH ....................... 47.2" (1200 mm)
MULTIPLE FEEDING LENGTH ........... 141.7" (3600 mm)
POWER CAPACITY .................... 2.14/3.35 HP (1.6/2.5 Kw)
TABLE ROTATION .................... 150 DEGREES
SAW BLADE FEED-SPEED .............. .629"-23.6" in/min (16-600 mm/min)
SAW BLADE DIAMETER ................ 16.73" (425 mm) MAXIMUM
ROLL GUIDEWAYS WITH LENGTH STOP ... YES
TOTAL POWER REQUIRED .............. 6.7 HP (5.0 Kw)
Get Your Price from Yoder Machinery Sales!
