For Sale by Global Equipment International
Surplus Record Dealer Since 2021
Location: Chalfont, PA
Contact Jordan Feldman
Phone Number: 215...> Show Phone Number 215-664-6016
Let the seller know you found their listing on Surplus Record!
Description

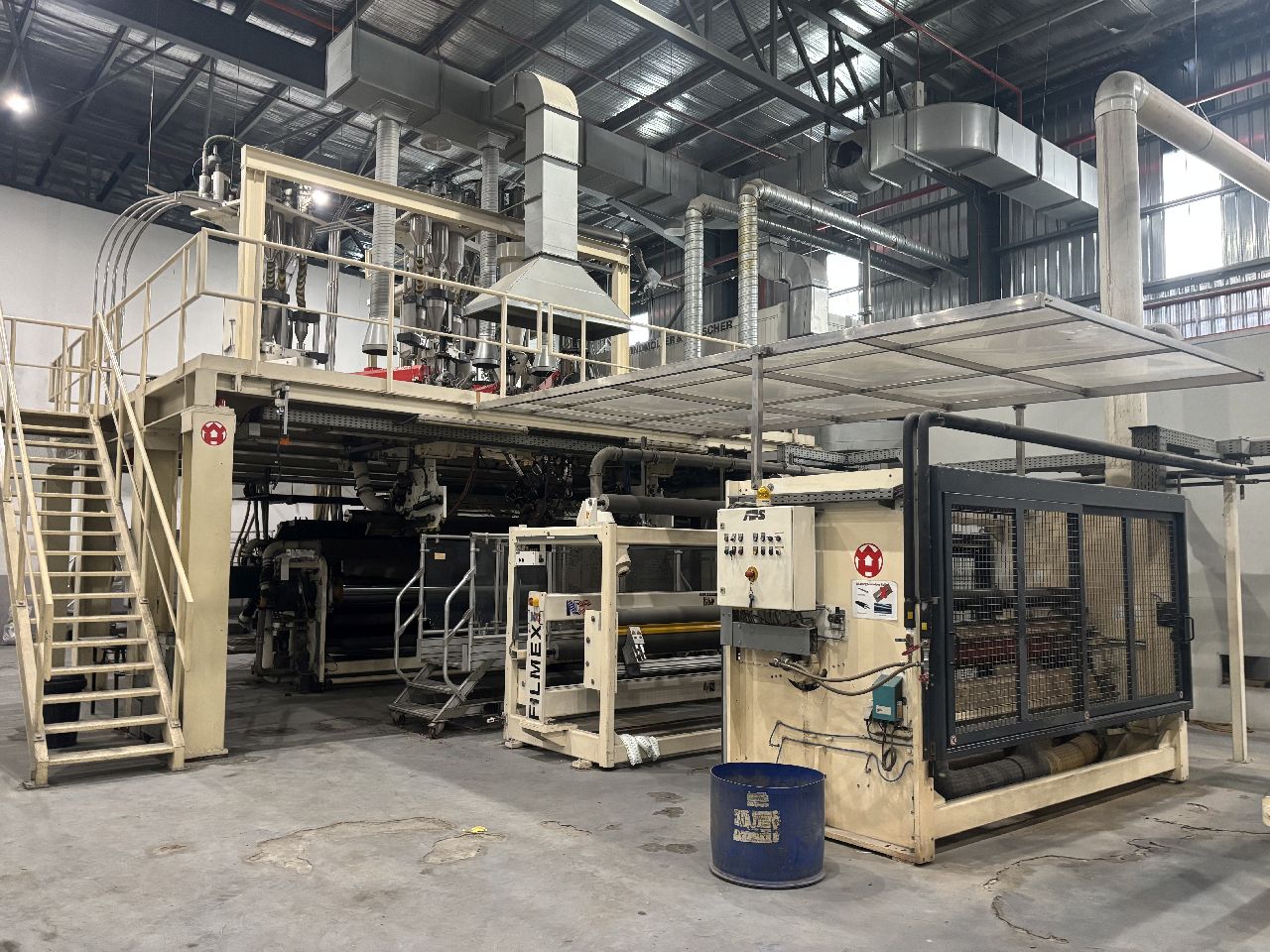

WINDMOLLER & HOLSCHER MODEL FILMEX 3 LAYER CAST FILM LINE
MFG 2014
FILM WIDTH 94.5"/240mm
MECHANICAL SPEED 1100FPM/350MPM
OUTPUT 2200LB/1000kg DEPENDING ON MATERIALS

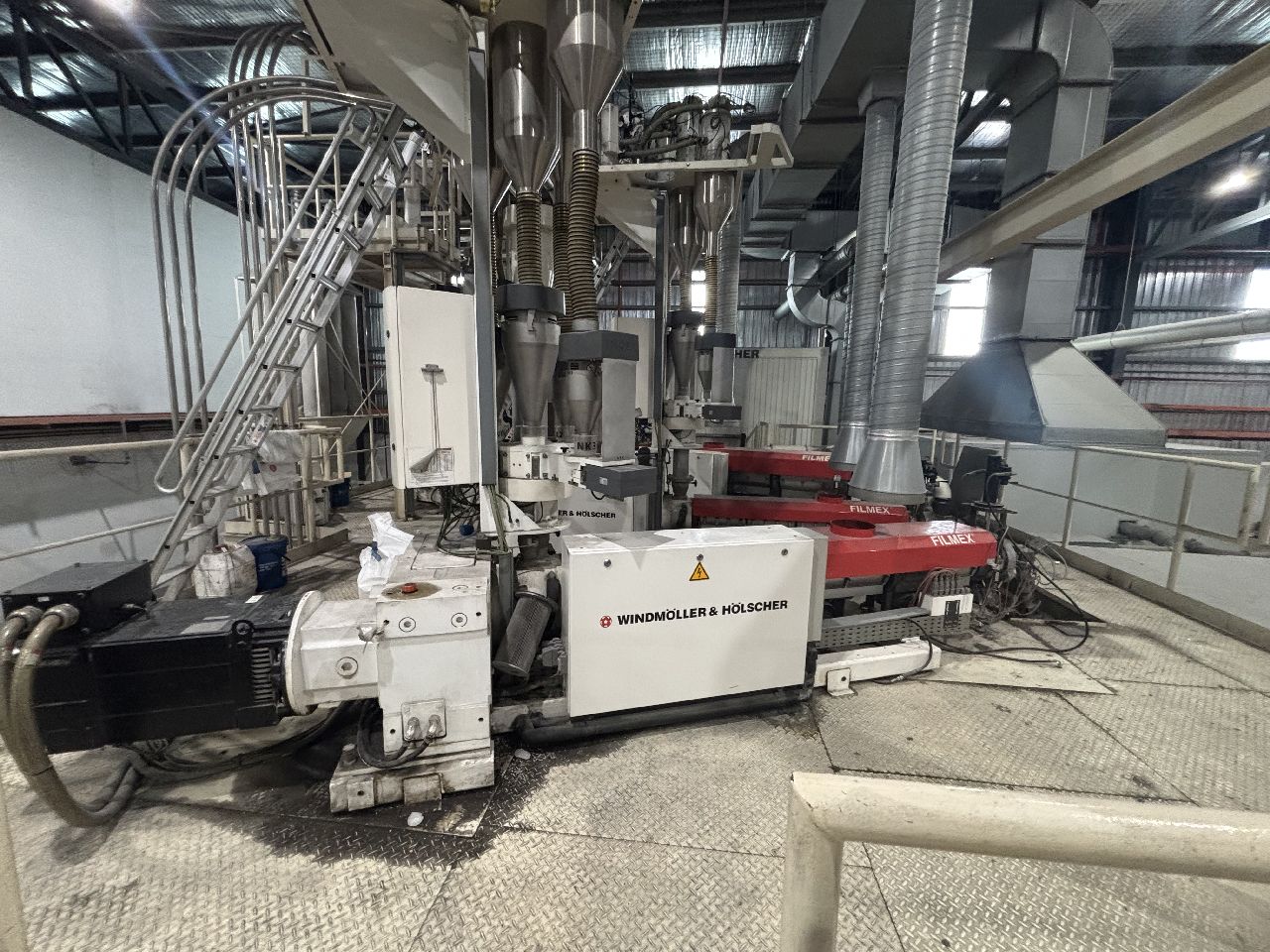

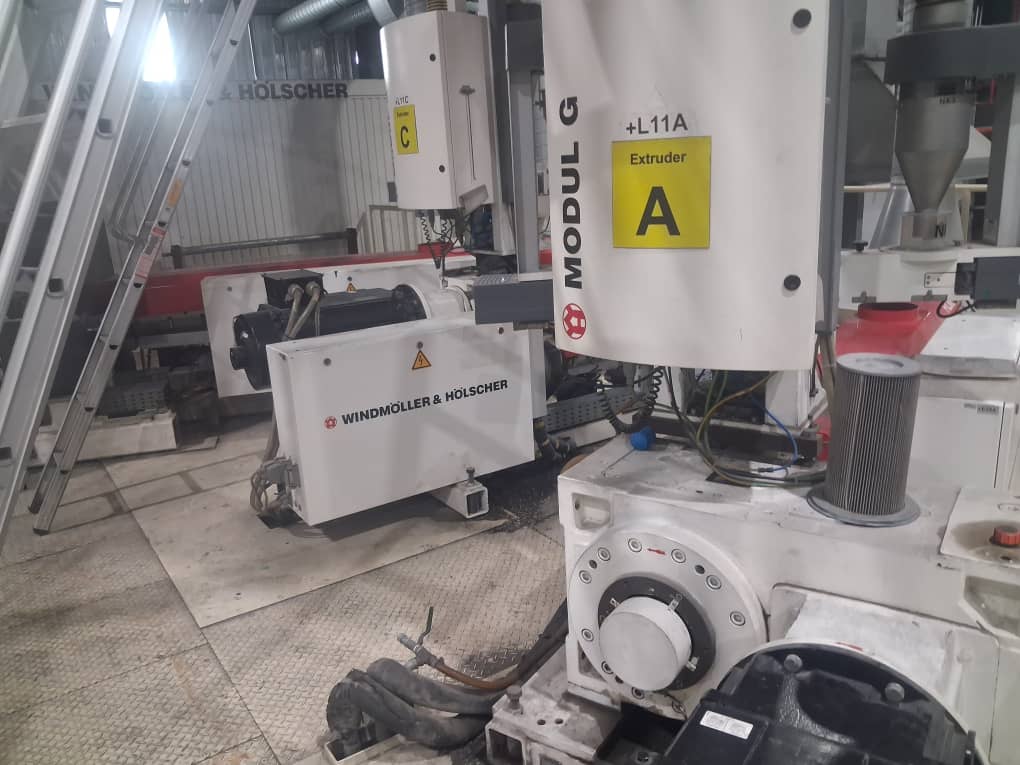

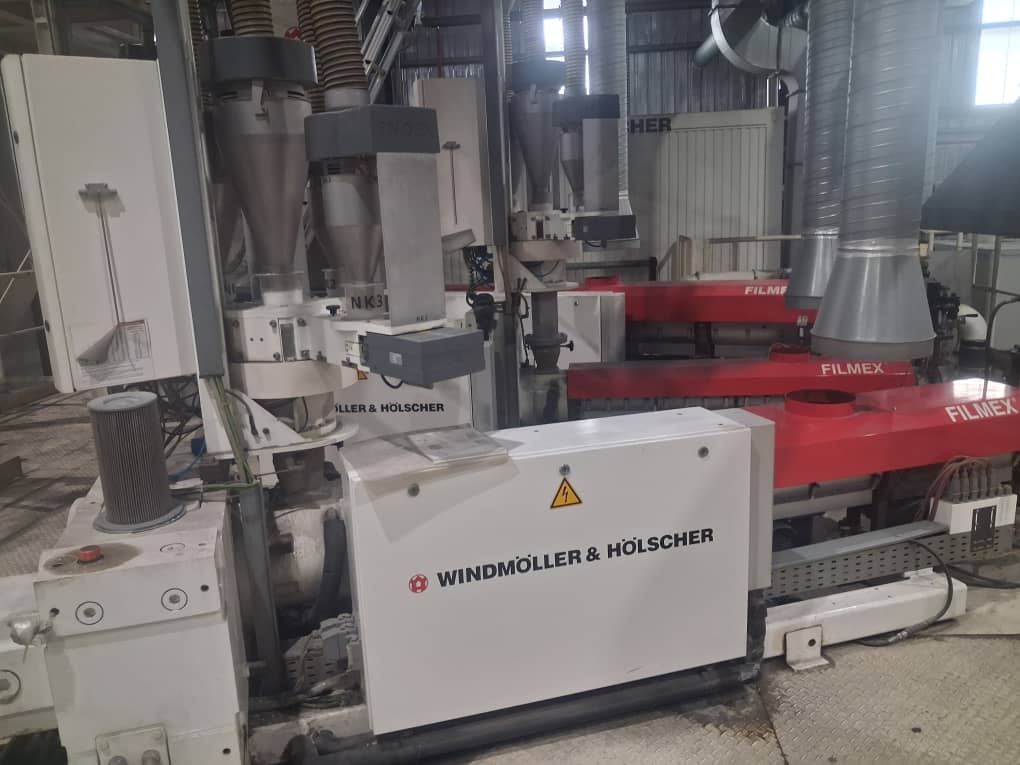

LAYER 1 SCREW DIAMETER 90mm L/D 30
DESCRIPTION OUTPUT 770LB/350kg PER HOUR

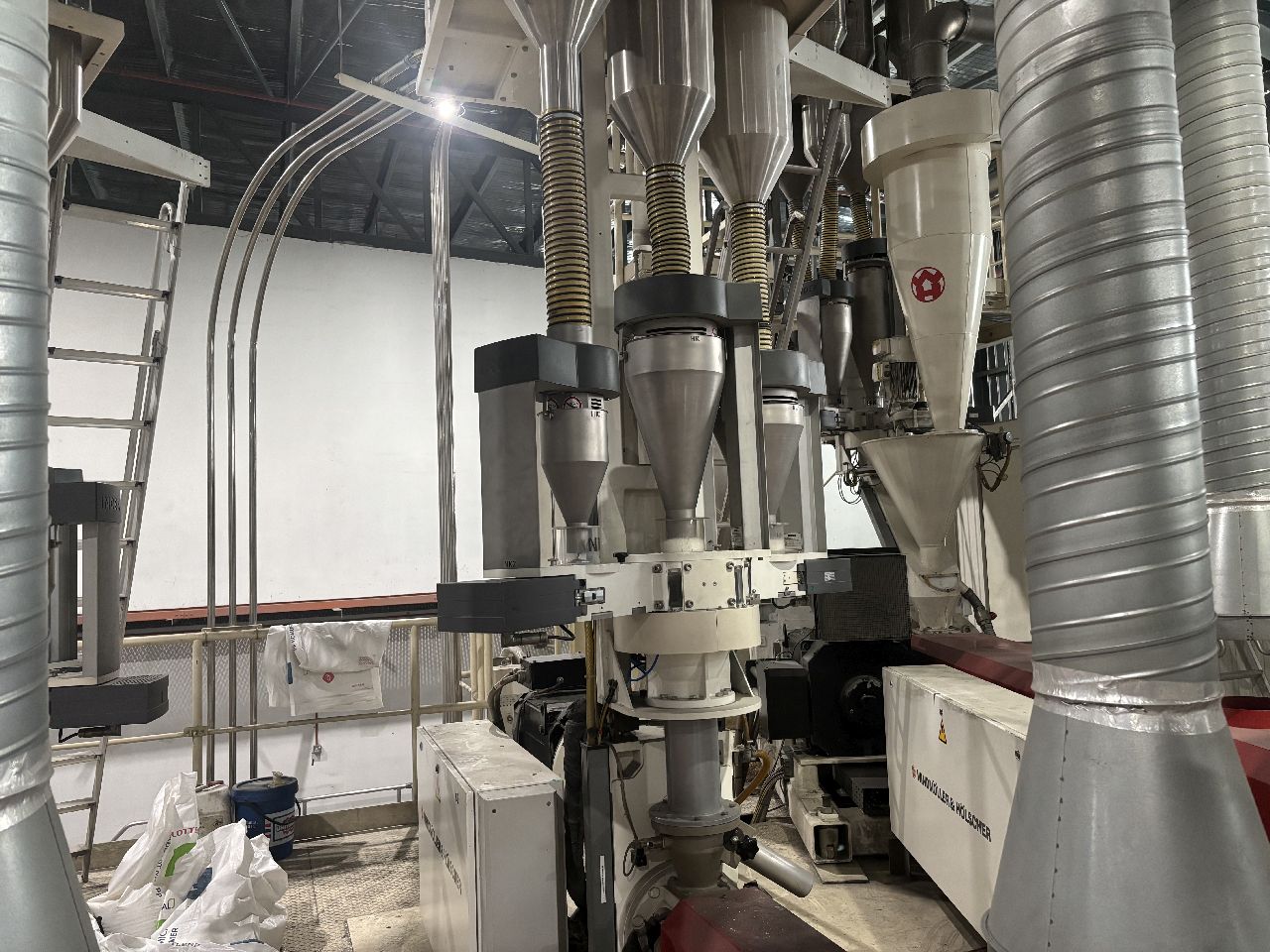

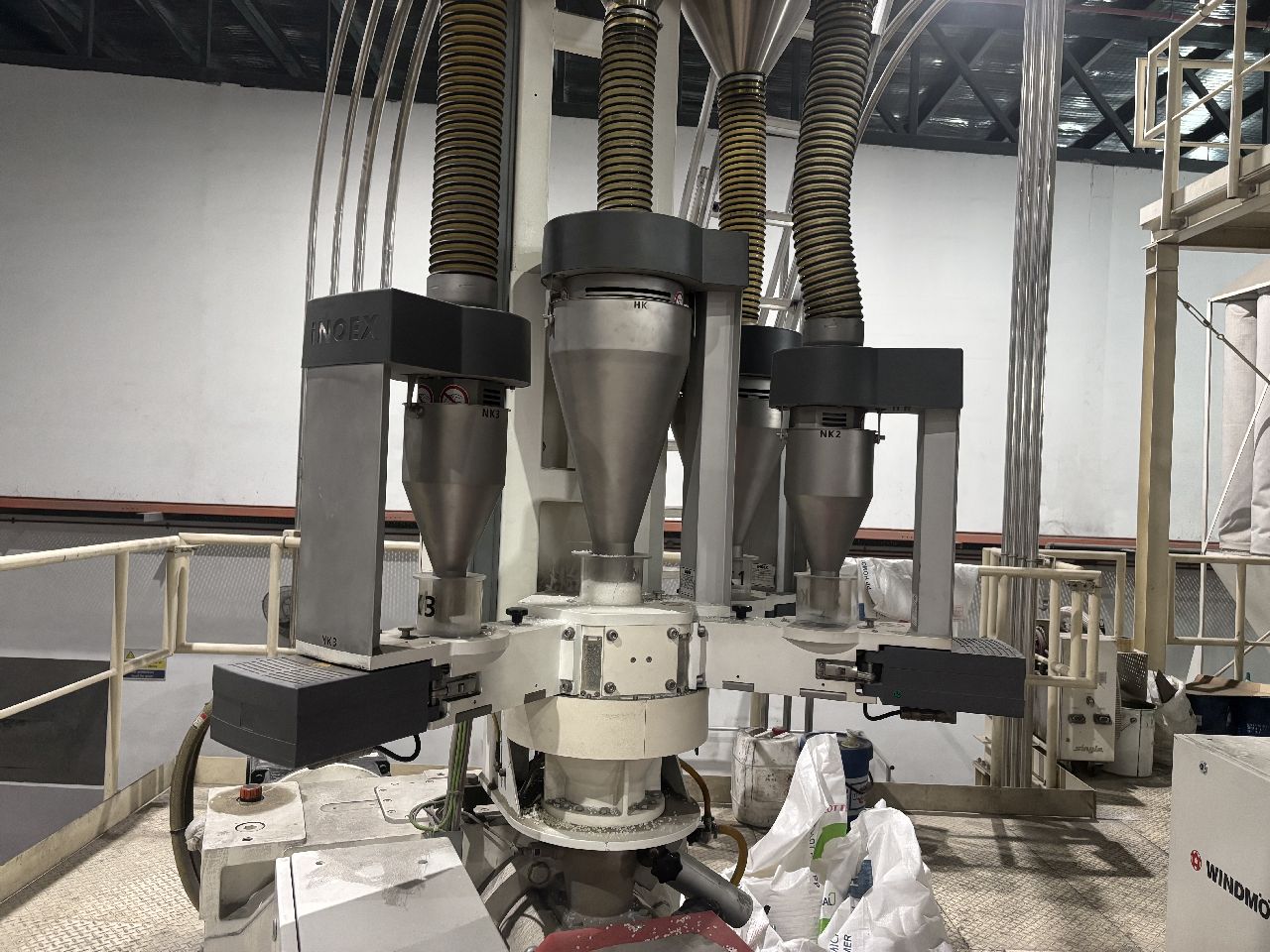

3 COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDS
MAXIMUM SCREW RPM 250
AC MOTOR 167HP/125kw, INVERTER CONTROLLED
HEATING 30kw, AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREE CHANGER
PRO COTNROL TS SUPERVISION
LAYER 2 SCREW DIAMETER 150mm L/D 30
DESCRIPTION: OUTPUT 1760LB/800kg PER HOUR
COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDERS
MAXIMUM SCREW RPM 165
AC MOTOR 496HP/370kw
INVERTER CONTROLLED
HEATING 75kw, AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREEN CHANGER
PRO CONTROL TS SUPERVISION
LAYER 3 SCREW DIAMETER 90mm L/D 30
DESCRIPTION: OUTPUT 340LB/155kg PER HOUR
COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDERS
MAX SCREW RPM 350
AC MOTOR 80HP/60kw
INVERTER CONTROLLED
HEATING 14,4kw AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREEN CHANGER PRO CONTROL TS SUPERVION
LAYER 4
CLOREN HEAD
FLEX LIP AUTOMATIC THICKNESS PROFILE CONTROL, HEATING CATRIDGES, 140 WATTS EVERY INCH
FEEDBACK VG WITH SELECTOR PLUG
T-CHANNEL DISTRIBUTION
HYDRAULIC DIE OPENING SYSTEM FOR CLEANING AND MAINTENANCE
DIE WIDTH 106"/2750mm

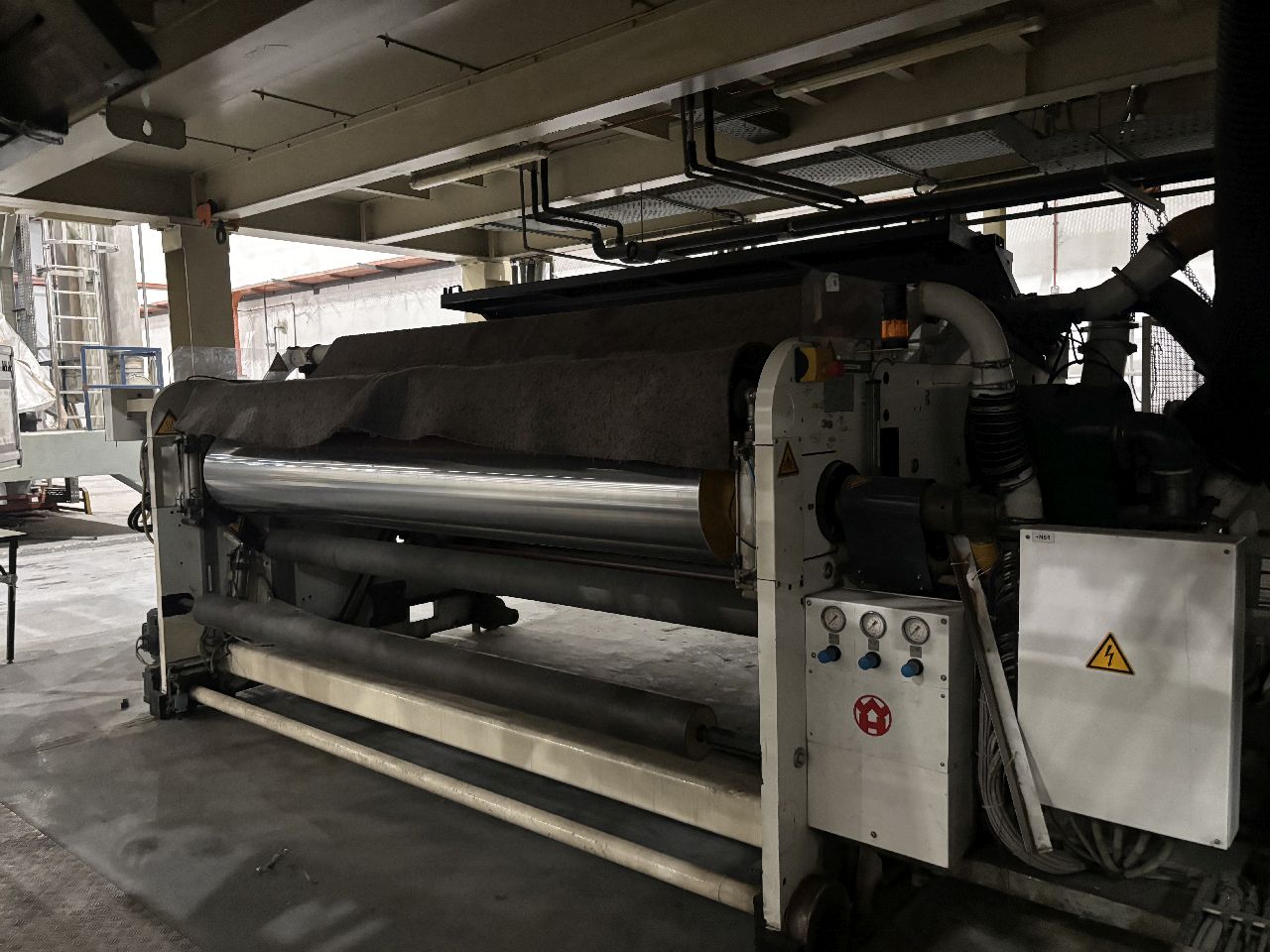

PRIMARY CHILL ROLL 1000mm DIAMETER
SECOND CHILL ROLL 400mm DIAMETER
INDEPENDENTAND DIRECT DRIVE OF EACH CHILL ROLLER VIA "TORQUE" MOTORS
AIR KNIFE WITH MOTORISED POSITION
ELECTROSTATIC EDGE PINNING VIA HIGH VOLTAGE ELECTRODES
PNEUMATIC EDGE PINNING
3 IDLE ROLLERS FILM WITHDRAW
EXHAUST FUMES REMOVAL
3 CIRCUIT WATER TEMPERATURE CONTROL UNIT (PRIMARY CHILL ROLL, SECOND CHILL ROLL AND EXTRUDER)
THICKENSS CONTROLL SYSTEM VIA AUTOMATIC THICKNESS PROFIEL CONTROL SYSTEM
NDC THICKNESS GUAGE
IR MODEL FG710-1 MEASUREMENT
AFS CORONA TREATMENT SYSTEM
SILICON PROCESS ROLLER 11.8"/300mm DIAMETER
TREATMENT WIDTH 98.4"/2550mm
CORONA GENERATOR OUTPUT 30kw
OSCILATING FRAME WEB GUIDE

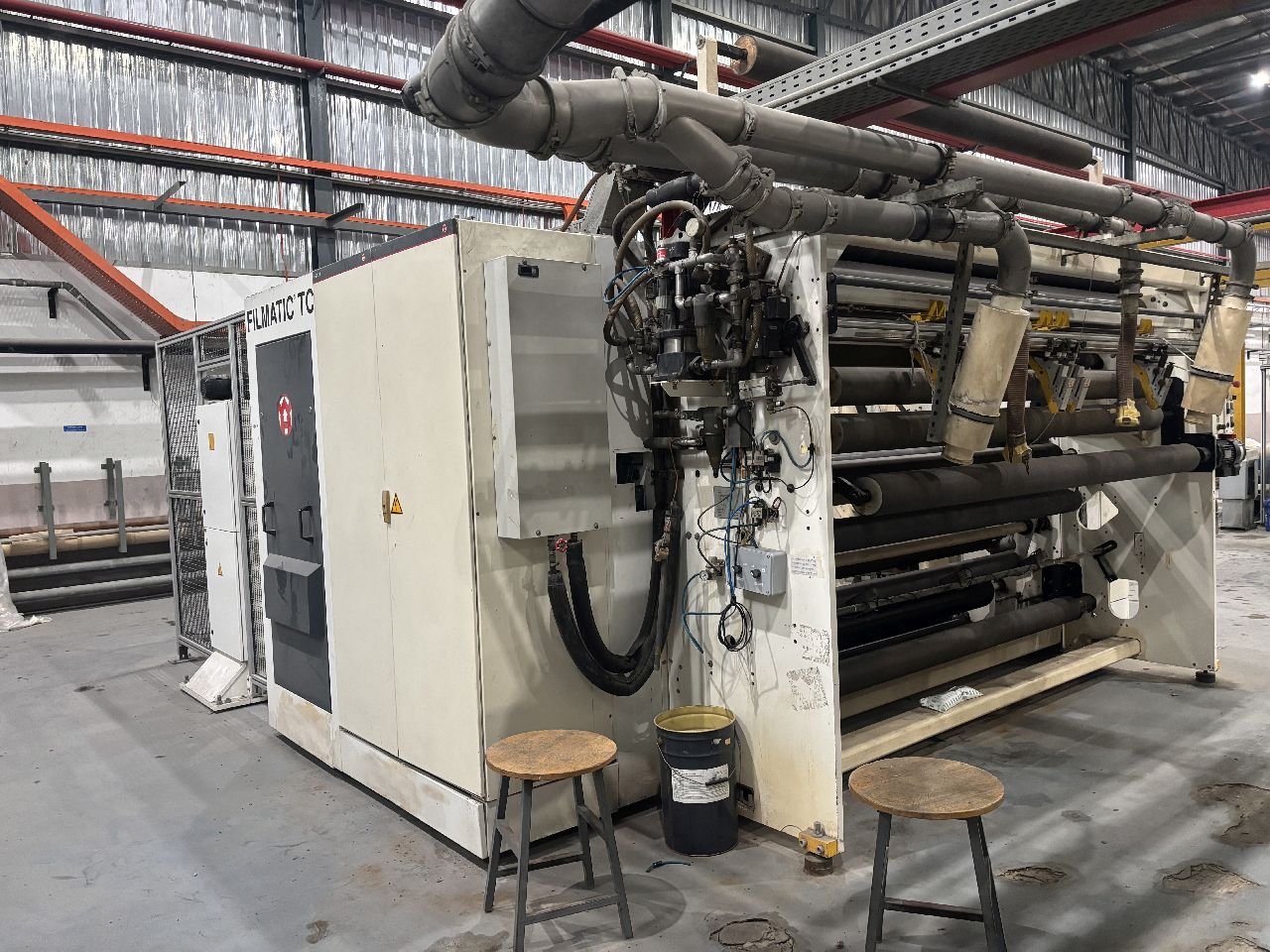

FILMATIC TC REWINDER
MAXIMUM REWIND DIAMETER 47.2"/1200mm WITH MAXIMUM REEL WEIGHT OF 6100LB/2800kg
MAXIMUM SPEED 1100FPM/350MPM
MAXIMUM FILM WIDHT 102"/2600mm
ROLLER WIDTH 106"/2700mm
CORE DIAMETER 6"/152mm
WEB TENSION 30-500 N AT DRAW AND 30-350 N PRIOR TO WINDING
ADJUSTABLE CONTACT PRESSURE
THICKNESS 18-150 my
EDGE TRIM AND VACUUM ASPIRATION SYSTEM WIDTH MAX 2.95"/75mm
MFG 2014
FILM WIDTH 94.5"/240mm
MECHANICAL SPEED 1100FPM/350MPM
OUTPUT 2200LB/1000kg DEPENDING ON MATERIALS
LAYER 1 SCREW DIAMETER 90mm L/D 30
DESCRIPTION OUTPUT 770LB/350kg PER HOUR
3 COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDS
MAXIMUM SCREW RPM 250
AC MOTOR 167HP/125kw, INVERTER CONTROLLED
HEATING 30kw, AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREE CHANGER
PRO COTNROL TS SUPERVISION
LAYER 2 SCREW DIAMETER 150mm L/D 30
DESCRIPTION: OUTPUT 1760LB/800kg PER HOUR
COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDERS
MAXIMUM SCREW RPM 165
AC MOTOR 496HP/370kw
INVERTER CONTROLLED
HEATING 75kw, AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREEN CHANGER
PRO CONTROL TS SUPERVISION
LAYER 3 SCREW DIAMETER 90mm L/D 30
DESCRIPTION: OUTPUT 340LB/155kg PER HOUR
COMP GRAVIMETRIC DOSING MODULE G3 WITH VACUUM FEEDERS
MAX SCREW RPM 350
AC MOTOR 80HP/60kw
INVERTER CONTROLLED
HEATING 14,4kw AIR COOLED & WATER COOLING FOR FEEDING SECTION
BIMETALLIC BARREL AND ANTI WEAR LINING OF FEED BARREL IN TUNGSTEN CARBIDE
HYDRAULIC SCREEN CHANGER PRO CONTROL TS SUPERVION
LAYER 4
CLOREN HEAD
FLEX LIP AUTOMATIC THICKNESS PROFILE CONTROL, HEATING CATRIDGES, 140 WATTS EVERY INCH
FEEDBACK VG WITH SELECTOR PLUG
T-CHANNEL DISTRIBUTION
HYDRAULIC DIE OPENING SYSTEM FOR CLEANING AND MAINTENANCE
DIE WIDTH 106"/2750mm
PRIMARY CHILL ROLL 1000mm DIAMETER
SECOND CHILL ROLL 400mm DIAMETER
INDEPENDENTAND DIRECT DRIVE OF EACH CHILL ROLLER VIA "TORQUE" MOTORS
AIR KNIFE WITH MOTORISED POSITION
ELECTROSTATIC EDGE PINNING VIA HIGH VOLTAGE ELECTRODES
PNEUMATIC EDGE PINNING
3 IDLE ROLLERS FILM WITHDRAW
EXHAUST FUMES REMOVAL
3 CIRCUIT WATER TEMPERATURE CONTROL UNIT (PRIMARY CHILL ROLL, SECOND CHILL ROLL AND EXTRUDER)
THICKENSS CONTROLL SYSTEM VIA AUTOMATIC THICKNESS PROFIEL CONTROL SYSTEM
NDC THICKNESS GUAGE
IR MODEL FG710-1 MEASUREMENT
AFS CORONA TREATMENT SYSTEM
SILICON PROCESS ROLLER 11.8"/300mm DIAMETER
TREATMENT WIDTH 98.4"/2550mm
CORONA GENERATOR OUTPUT 30kw
OSCILATING FRAME WEB GUIDE
FILMATIC TC REWINDER
MAXIMUM REWIND DIAMETER 47.2"/1200mm WITH MAXIMUM REEL WEIGHT OF 6100LB/2800kg
MAXIMUM SPEED 1100FPM/350MPM
MAXIMUM FILM WIDHT 102"/2600mm
ROLLER WIDTH 106"/2700mm
CORE DIAMETER 6"/152mm
WEB TENSION 30-500 N AT DRAW AND 30-350 N PRIOR TO WINDING
ADJUSTABLE CONTACT PRESSURE
THICKNESS 18-150 my
EDGE TRIM AND VACUUM ASPIRATION SYSTEM WIDTH MAX 2.95"/75mm
