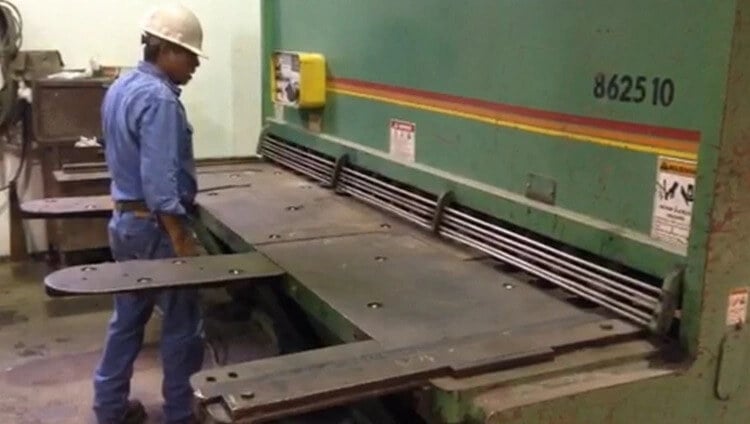

5/8" x 10' Accurshear #862510, Hydraulic Power Squaring Shear, 32 Ton, 9 27 SPM, 50 HP, 48" Backgauge, 1984

” X 10’ Hydraulic Power Squaring Shear with 4’ Front R/H & L/H Squaring Arms, Ball Transfers on Table, Manual Quick Blade Gap Adjustment, Hydraulic Oil Cooler and 36” Swingup Backgauge.
GENERAL SPECIFICATIONS
Capacity: ” X 10’
Blade Size: 1-” X 5” X 124”
Number of Hydraulic Hold Downs: 16
Hold Down Tonnage: 32 Tons
Full Stroke Speed: 9 SPM
Short Stroke Speed: 27 SPM
Motor: 50 HP
Backgauge: 48”
Table Height: 34”
Full Table Support Depth: 29”
Approx. Machine Dims w/o Squaring Arm: 153” LR X 120” FB
Approx. Machine Dims w/ Squaring Arm: 153” LR X 2047” FB X 112” H
Approx. Machine Weight: 46,000 Lbs
INCLUDES: 4’ Front R/H & L/H Squaring Arms, Ball Transfers on Table, Manual Quick Blade Gap Adjustment, Hydraulic Oil Cooler and 36” Swingup Backguage.
