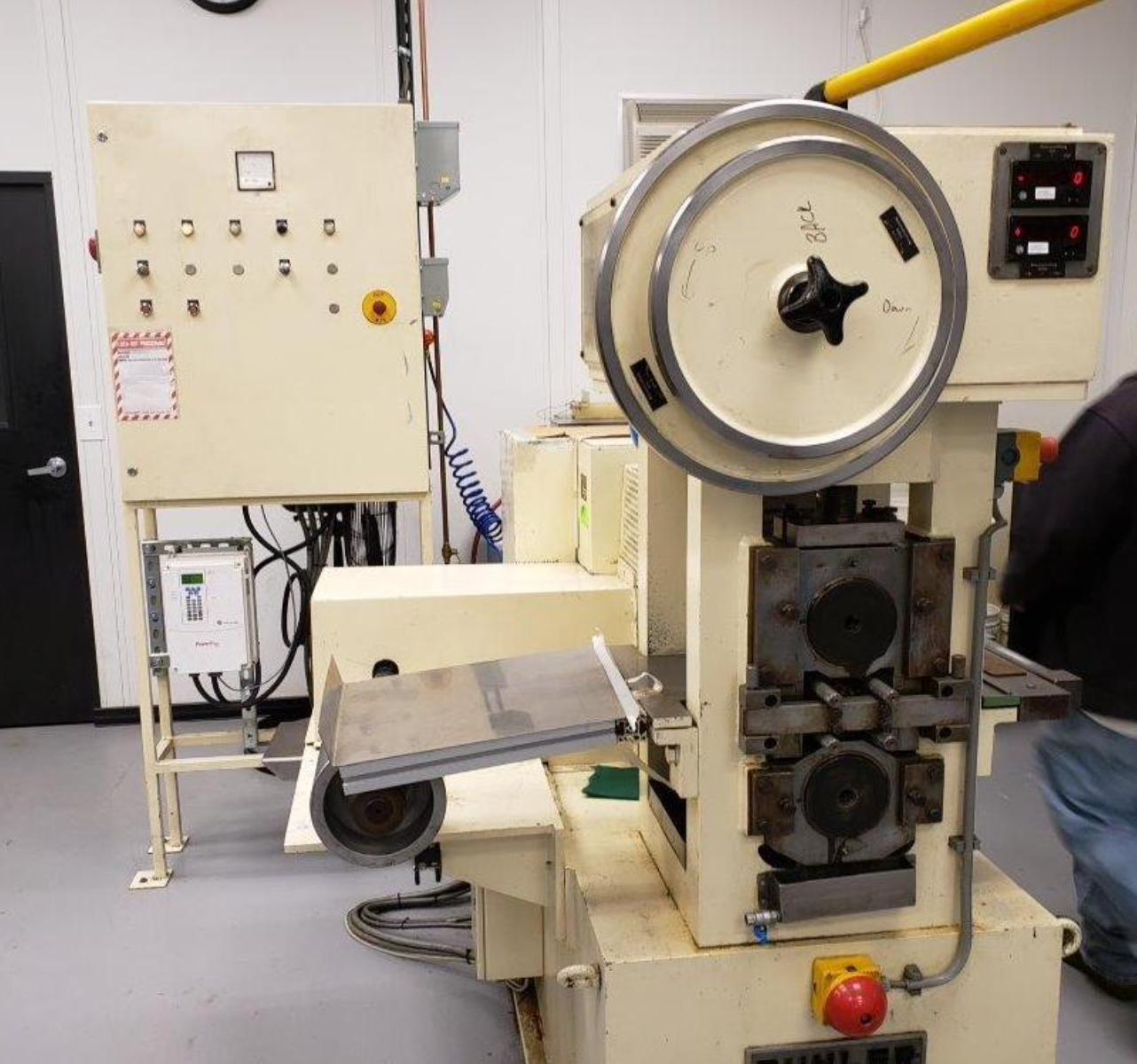

1.5" x 5.5" x 7.75" Buhler, 2-Hi/4-Hi rolling mill with recoiler, 10 HP

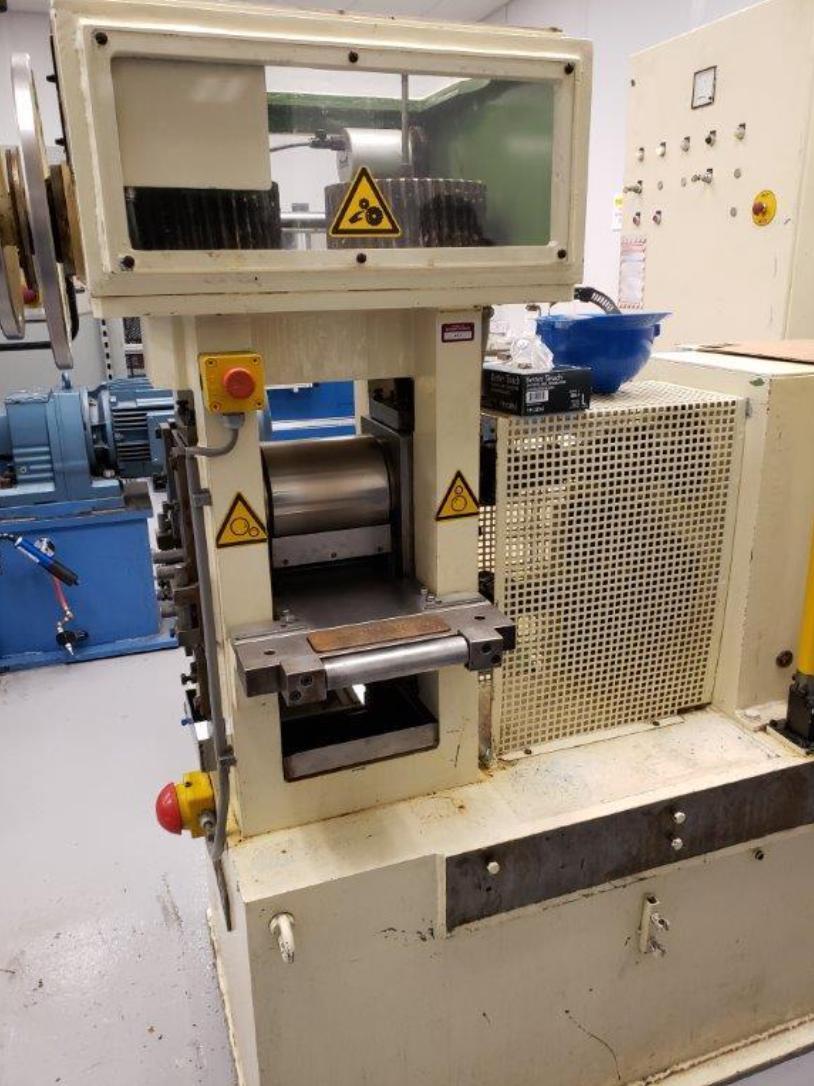

Manufactured by Bhler Maschinenfabrik of Pforzheim, Germany, this precision combination rolling mill is a compact, rigid-frame system offering the flexibility of both 2-high and 4-high configurations in a single unit. Built to the exacting standards typical of European precision rolling equipment, it is well-suited for laboratory research, pilot-scale development, and light production work.
Roll Configuration & Capacity
Work Rolls: 40 mm × 200 mm (1.57" × 7.87")
Backup Rolls: 180 mm × 200 mm (7.09" × 7.87")
Convertible 2-High / 4-High configuration
Roll Face Width: 7.87" (200 mm)
Screwdown System
The dual handwheel screwdown features a central adjustment (Zentralstellung) mechanism that allows synchronized or independent side-to-side roll gap control for precise parallelism. A power-assisted drive enables smooth positioning, and integrated digital position indicators are included for roll gap monitoring (not fully tested).
Drive, Recoiler & Electrical
Main Motor: 10 HP
Voltage: 480V, 3-Phase

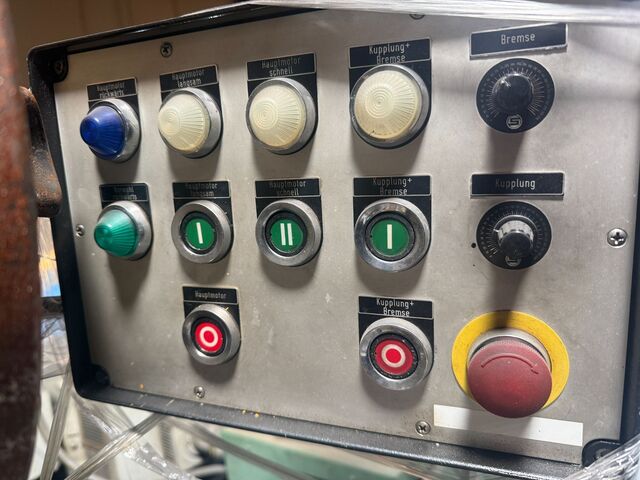

Gear-driven with integrated clutch and brake system
Driven recoiler for strip take-up and controlled tension during rolling
Included with the Mill
Two (2) spare sets of work rolls
Driven recoiler system
Two binders of Bhler OEM documentation (appear substantially complete)
Condition
The mill was taken out of service in operating condition. Auxiliary systems including digital readouts and instrumentation have not been fully tested and are offered without warranty. Sold as-is, where-is.
Typical Applications
Laboratory and university R&D
Pilot line development and process scale-up
Precious metals, specialty alloys, and advanced materials
BUHLER 1.57" X 7.09" X 7.87" 2-HIGH / 4-HIGH COMBINATION ROLLING MILL
SPECIFICATIONS:
Work Roll Diameter...... 1.57"
Work Roll Width......... 7.87"
Backup Roll Diameter.... 7.09"
Backup Roll Width....... 7.87"
Roll Gap Adjustment..... Dual handwheels with power assist can allow for simultaneous or independent roll gap adjustment.
Mill Power.............. 10 HP
Mill Separating Force... Approximately 100,000 LBS
Mill Voltage............ 480V
Mill Phase.............. 3-Phase
Mill Tables............. Tables will be installed on the entry and exit of the mill.
Mill Dimensions......... Approximately 78" L x 50" W x 82" H
Mill Weight............. Approximately 5,000 LBS
