Description
Product Details
Specifications
| Stock Number | AM16869 |
| Brand | Clarke & Lewis |
| Capacity | 5.50 inches |
Specifications

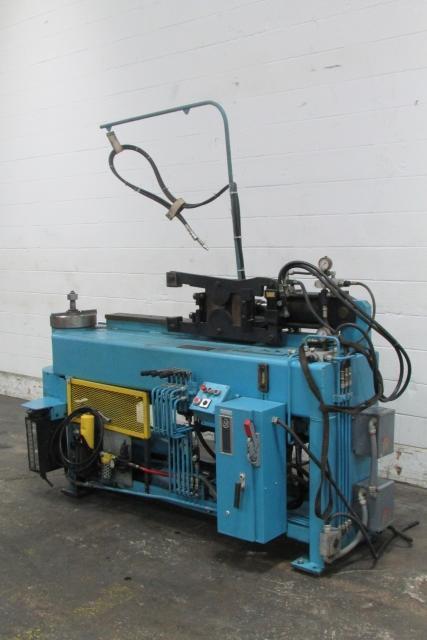

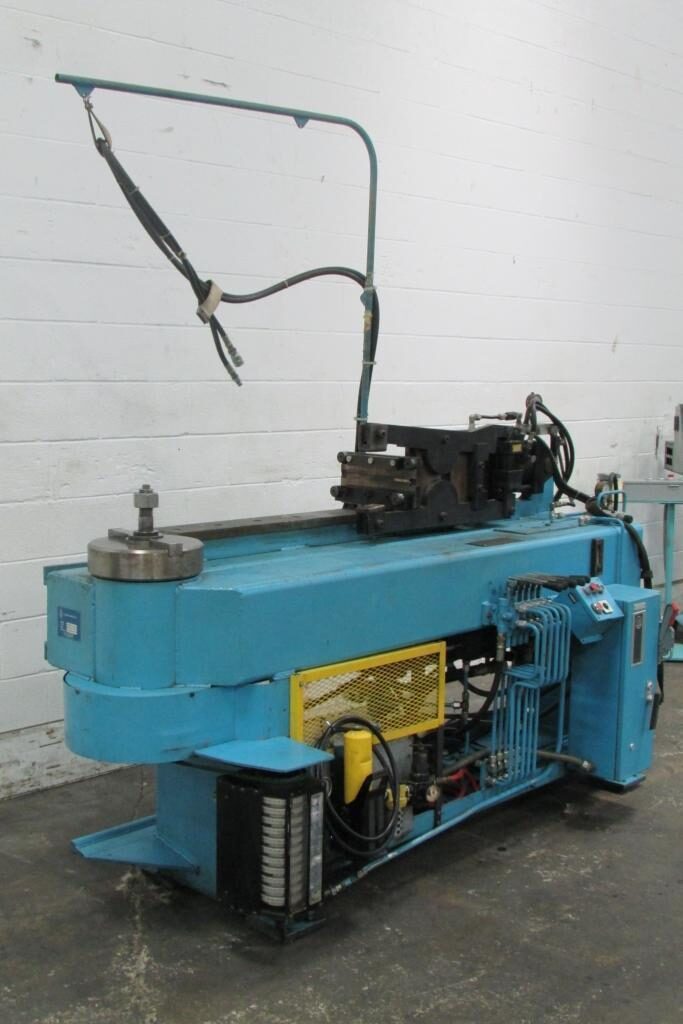

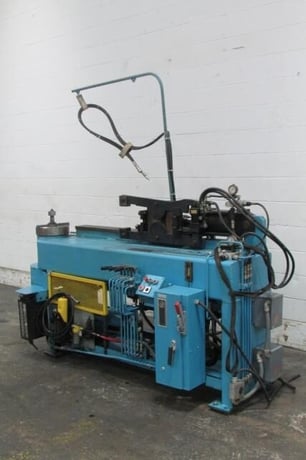

Clarke & Lewis heavy duty horizontal mandrel type hydraulic tube bender
- Model: CL-310
- Maximum tube diameter (mild steel): 5-1/2” OD x .095”
- Maximum tube diameter (non-ferrous): 5” OD x .156”
- Maximum tube diameter (stainless steel): 4-1/2” OD x .083”
- Maximum diameter (Schedule 80 Pipe): 3”
- Maximum CLR: 36” Approx.
- Maximum degree of bend: 180° + springback
- Bending Rotation: Right-hand (clockwise)
- Clarke & Lewis DBC-100 10-Stop dial bend control
- Split die power unit and cylinders

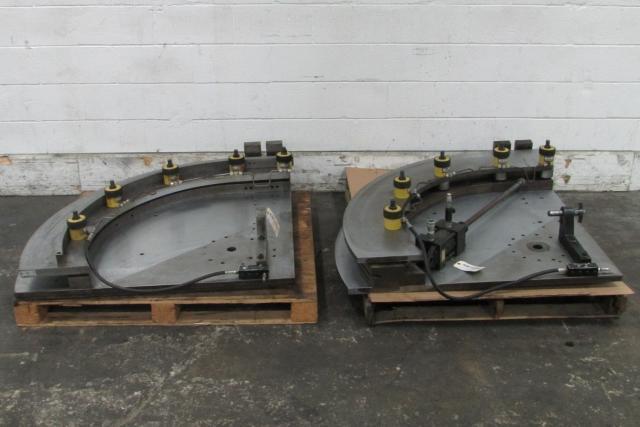

- 2 used dies (in photos)
Get Your Price from AM Industrial!
