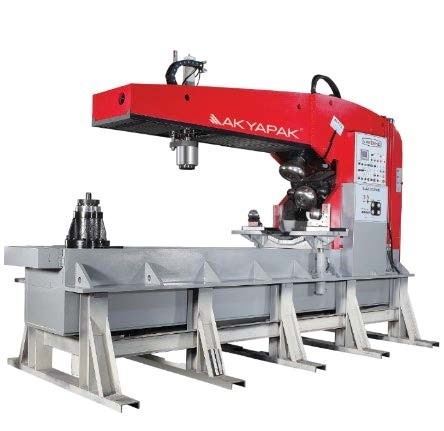

5/16" x 10' Akyapak #BMB8X3000, hydraulic clamp, 45 HP, others sizes available, new

(NEW) .315" AKYAPAK BMB 8X3000 FLANGING MACHINE WITH CENTER HOLE VERSION
MAX. PLATE THICKNESS (YIELD POINT 36,000 PSI) .315"
MAX. PLATE THICKNESS (YIELD POINT 50,000 PSI) .250"
MIN. PLATE THICKNESS ---------------------- .120"
MAX. PLATE DIAMETER ----------------------- 10'
MIN. FLANGING DIAMETER -------------------- 5'
MIN. FLANGING DIAMETER (WITH ADDITIONAL DEVICE) 2'
MAX. KNUCKLE RADIUS ----------------------- 1'
MAX. HEAD TOTAL DEPTH --------------------- 2'
TORISPHERICAL HEAD DIAMETER --------------- 8' MAX.
ELLIPTICAL HEAD DIAMETER ------------------ 6.5' MAX.
POWER ------------------------------------- 45 H

EQUIPPED WITH ---
R100 KNUCKLE ROLL
LOWER SUPPORTING ROLLS ADJUSTABLE BY HEIGHT
TWO SIDES FLANGING ROLLS
KNUCKLE ROLL SPEED CONTROL
DIGITAL TOUCH SCREEN
LINEAR MOTION GUIDEWAYS FOR CARRIAGES
HYDRAULIC HEAD CLAMPING FOR UPPER AND LOWER CARRIAGES
METAL PROTECTION ON LOWER CARRIAGE
CONTROL PANEL
AIR COOLING SYSTEM

NOTE: MACHINE CAN BE ORDERED WITH OR WITHOUT CENTER HOLE. MANY OPTIONS AVAILABLE LIKE AUTOMATIC FLANGING AND BEVELING DEVICE AT EXTRA COST.

Weight : 19000 LBS
Dimension (IN) : 13-55-10
