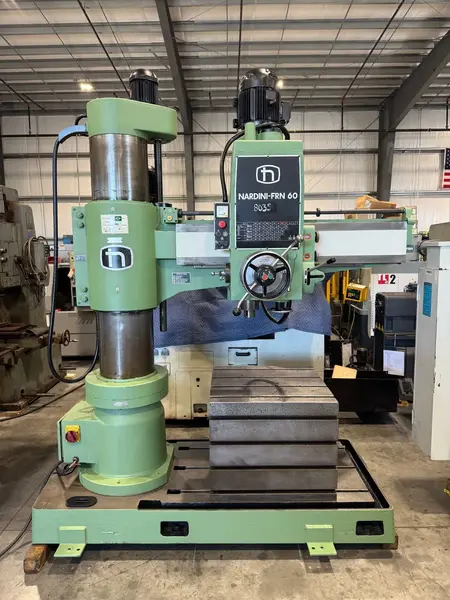

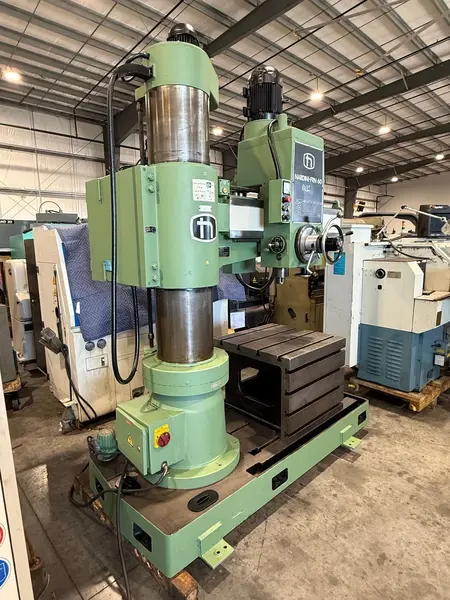

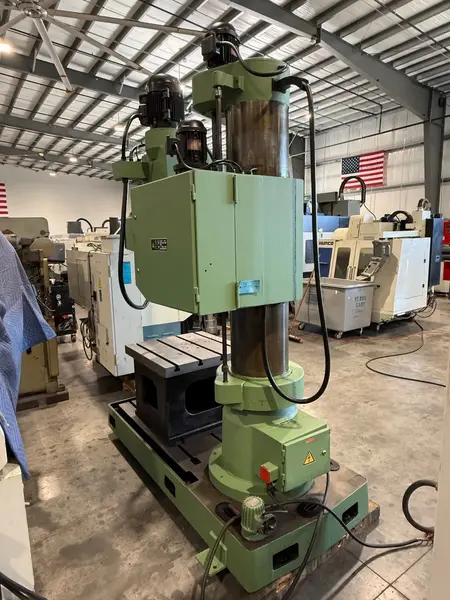

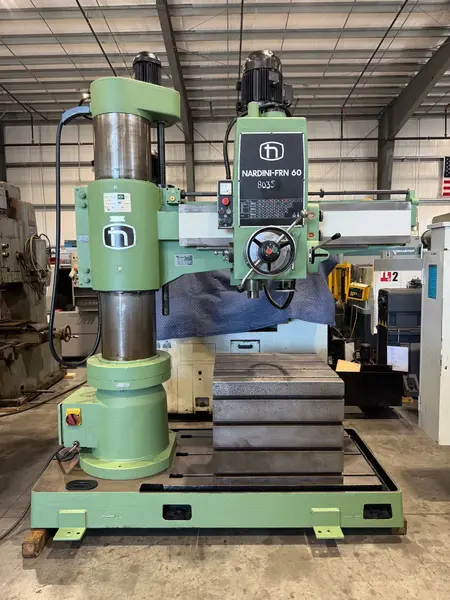

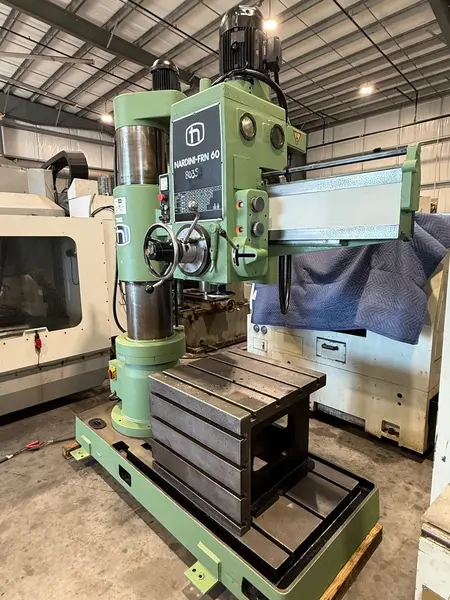

Description NARDINI FRD-60 5’ x 15” Radial Arm Drill #5MT #8183 Specifications
NARDINI FRD-60 5’ x 15” Radial Arm Drill #5MT #8183 Reference # 8183 Model # FRD-60 Drilling capacity- 2.36” Mild steel / 3.15” Cast iron Boring capacity- 3.94” Mild steel / 4.72” Cast iron Tapping capacity- 1.97” Mild steel / 2.75” Cast iron Spindle speeds- (12) 29 – 1,450 R.P.M. Spindle taper- #5 Morse Arm length- 5’ Bottom base working surface- 35” x 58” Column diameter- 15”
Equipped With Box table 29-1/2” x 29-1/2” x 23-1/2” H Hydraulic clamping of arm and column Coolant pump and coolant reservoir in base 2 H.P. Elevation motor 10 H.P. Spindle motor Machine is wired for 460 volt / 3 phase / 60 H.Z. Machine weight- 12,500 Lbs. Machine dimensions- 92” x 50” x 111” H Machine location- F.O.B. Sarasota, Florida
