For Sale by G-2000
Surplus Record Dealer Since 2011
Location: Toledo, OH
Contact Evan Yoder
Phone Number: 419...> Show Phone Number 419-597-5495
Let the seller know you found their listing on Surplus Record!

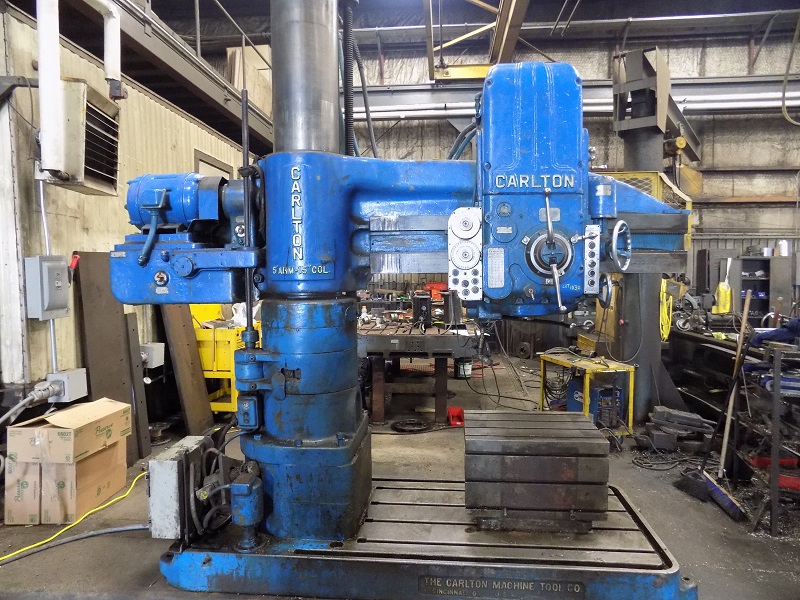

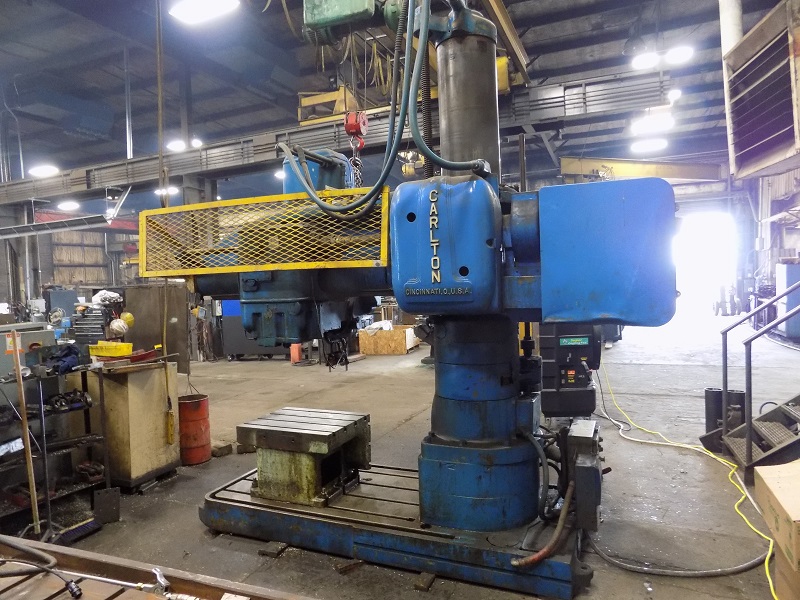

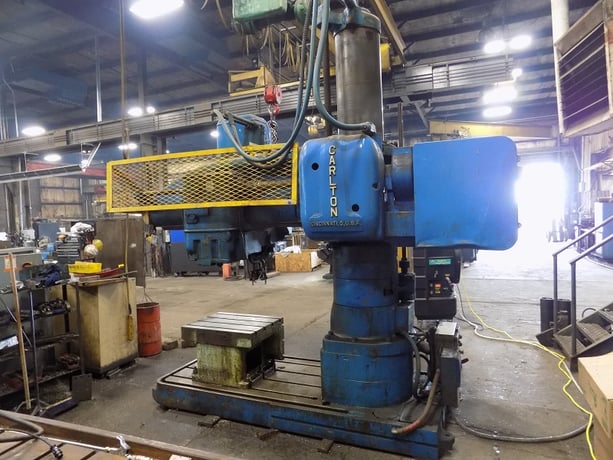

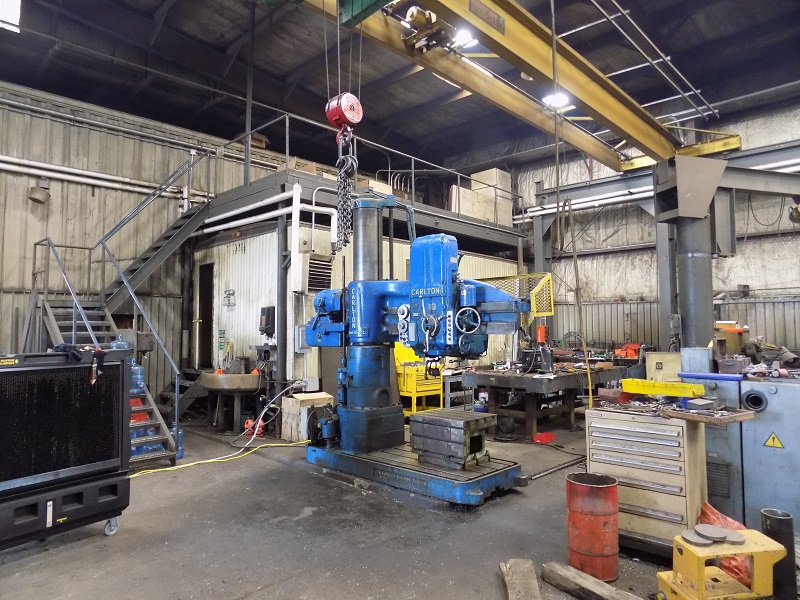

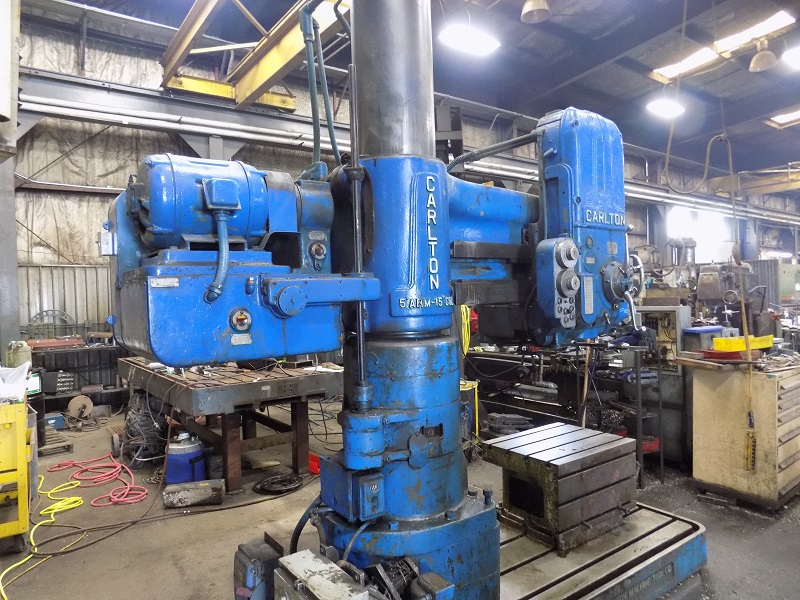

Description
SPECIFICATIONS:
MODEL ........................ 3A
AREA OF BASE ................. 65' X 42"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
SPINDLE FEEDS ................ (18) .004 TO .125
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .......... 3-3/16"
TAPER IN SPINDLE ............. #5 MT
DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX
POWER ARM ELEVATION .......... YES
POWER COLUMN CLAMPING ........ YES
POWER HEAD CLAMPING .......... YES
POWER ARM ELEVATION .......... YES
COOLANT ...................... YES
MAIN MOTOR ................... 20 HORSEPOWER
MODEL ........................ 3A
AREA OF BASE ................. 65' X 42"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
SPINDLE FEEDS ................ (18) .004 TO .125
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .......... 3-3/16"
TAPER IN SPINDLE ............. #5 MT
DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX
POWER ARM ELEVATION .......... YES
POWER COLUMN CLAMPING ........ YES
POWER HEAD CLAMPING .......... YES
POWER ARM ELEVATION .......... YES
COOLANT ...................... YES
MAIN MOTOR ................... 20 HORSEPOWER
| Specifications | |
| Machine Type... | ...Drills, Deep Hole |
| Manufacturer... | ...CARLTON |
| Model... | ...3A |
| Year... | ...1954 |
| Condition... | ...Used |
Get Your Price from G-2000!
