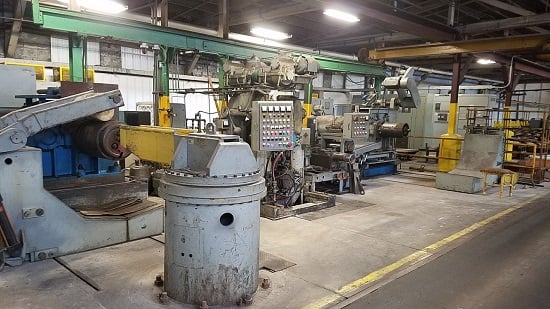

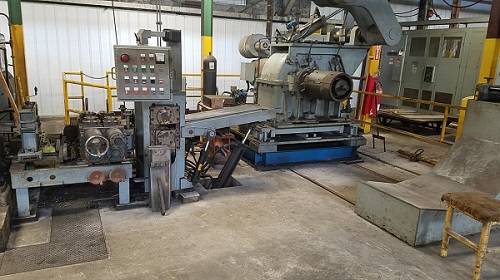

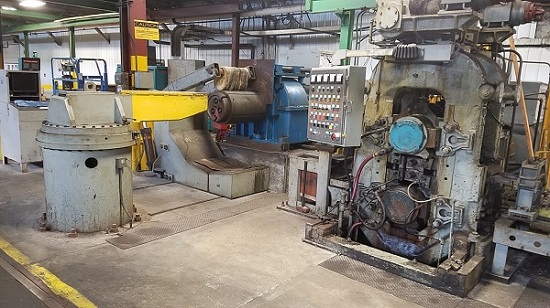

5.14" x 18" x 12" Bliss / United, 4 Hi Non-reversing Mill, electromechanical screwdown

14" BLISS/UNITED 4HI NON-REVERSING MILL
MANUFACTURER - BLISS/UNITED
TYPE - 4HI NON REVERSING
WORK ROLL DIAMETER - 5.140" - 4.600"
BACKUP ROLL DIAMETER - 18"
WIDTH RANGE - 1.5" - 12"
ENTRY GAUGE THICKNESS - 0.215" - 0.010"
EXIT GAUGE THICKNESS - 0.205" - 0.010"
ENTRY ID - 16"/20"
ENTRY OD - 72"
EXIT ID - 20"
EXIT OD - 72"
MAIN MILL MOTOR - 200 HP
PAYOFF MOTOR - 100 HP
RECOILER MOTOR - 200 HP
BEARINGS TYPE - MORGOIL
SCREWDOWN - ELECTRO MECHANICAL
COOLANT SYSTEM - MILL DOES NOT HAVE COOLANT SYSTEM
MILL DIRECTION - RIGHT TO LEFT
MILL CONFIGURATION:
ENTRY L-TYPE COIL CAR
MANDREL UNCOILER
ENTRY PEELER TABLE
ENTRY FEED ROLLS
2 SET ENTRY GUIDE ROLLS

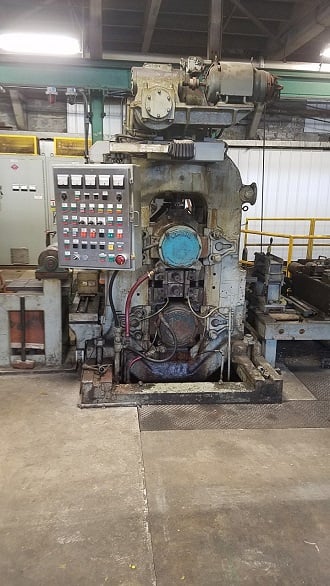

4HI MILL STAND
DEFLECTOR ROLL
MANDREL RECOILER
EXIT L-TYPE COIL CAR
EXIT SINGLE ARM TURNSTILE
MILL HYDRAULIC, CONTROLS, ELECTRICS
LARGE QUANTITY OF SPARE ROLLS
